PLX51-PBM Setup
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 43 of 196
3.7.2 Device Station Configuration Upload
The PLX50CU can also upload the DPV0 communication configuration from each DP
Slave. The uploaded configuration will be used when creating a new module from the
Discovery List (as described in the section above).
IMPORTANT: The configuration must be uploaded from the DP Slave before adding the module from
the discovery list. The configuration of an already instantiated DP Slave will not be changed.
The DPV0 communication configuration can be uploaded by right clicking on the
discovery list and selecting Upload Configuration from All.

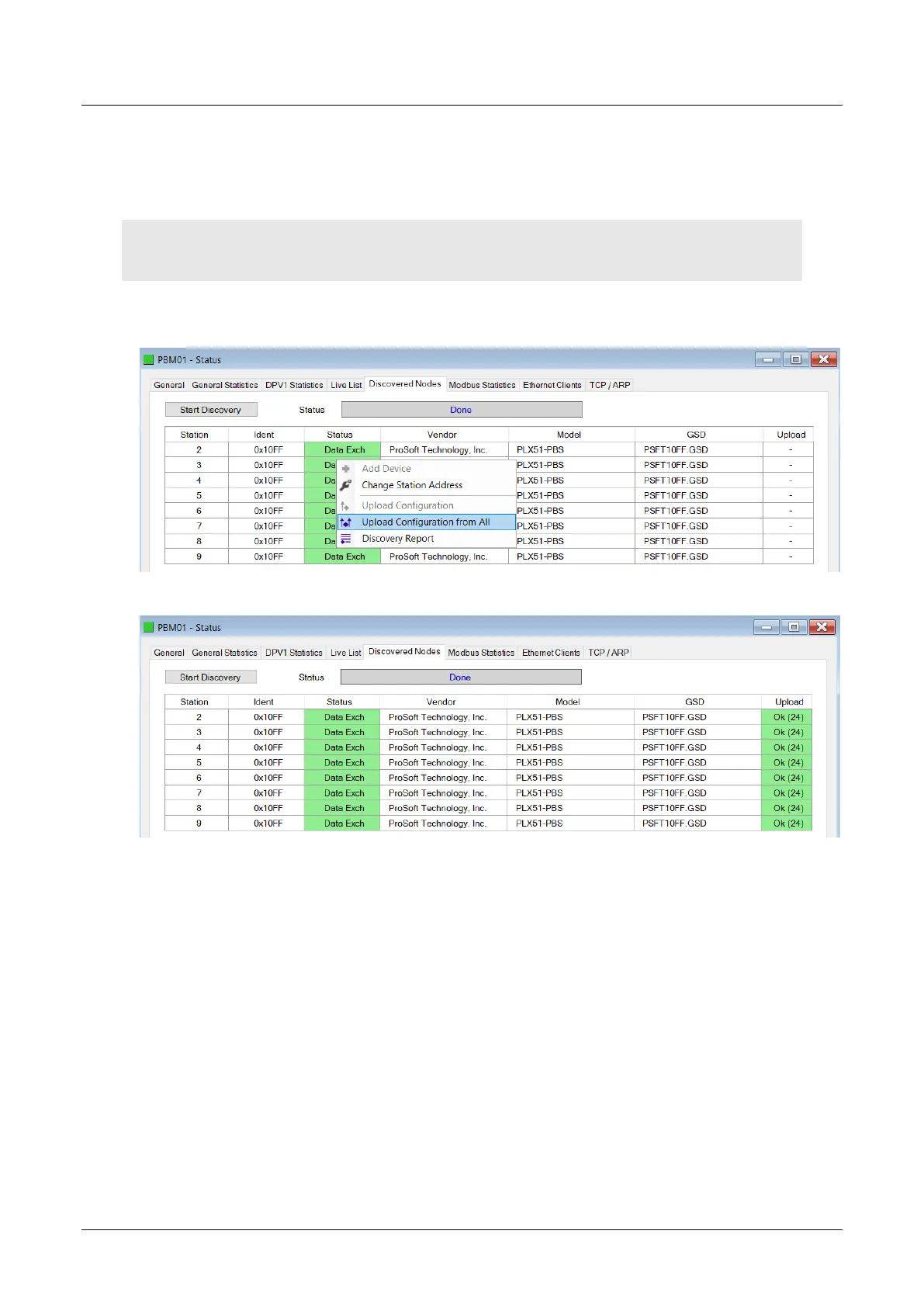

Figure 3.39 – Selecting to upload the configuration from all Slaves.
Figure 3.40 – DPV0 Communication Configuration successfully uploaded.
