PLX51-PBM Diagnostics
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 167 of 196
TCP/ARP
The TCP/ARP tab displays details of the internal Ethernet ARP and TCP lists of the
PLX51-PBM.

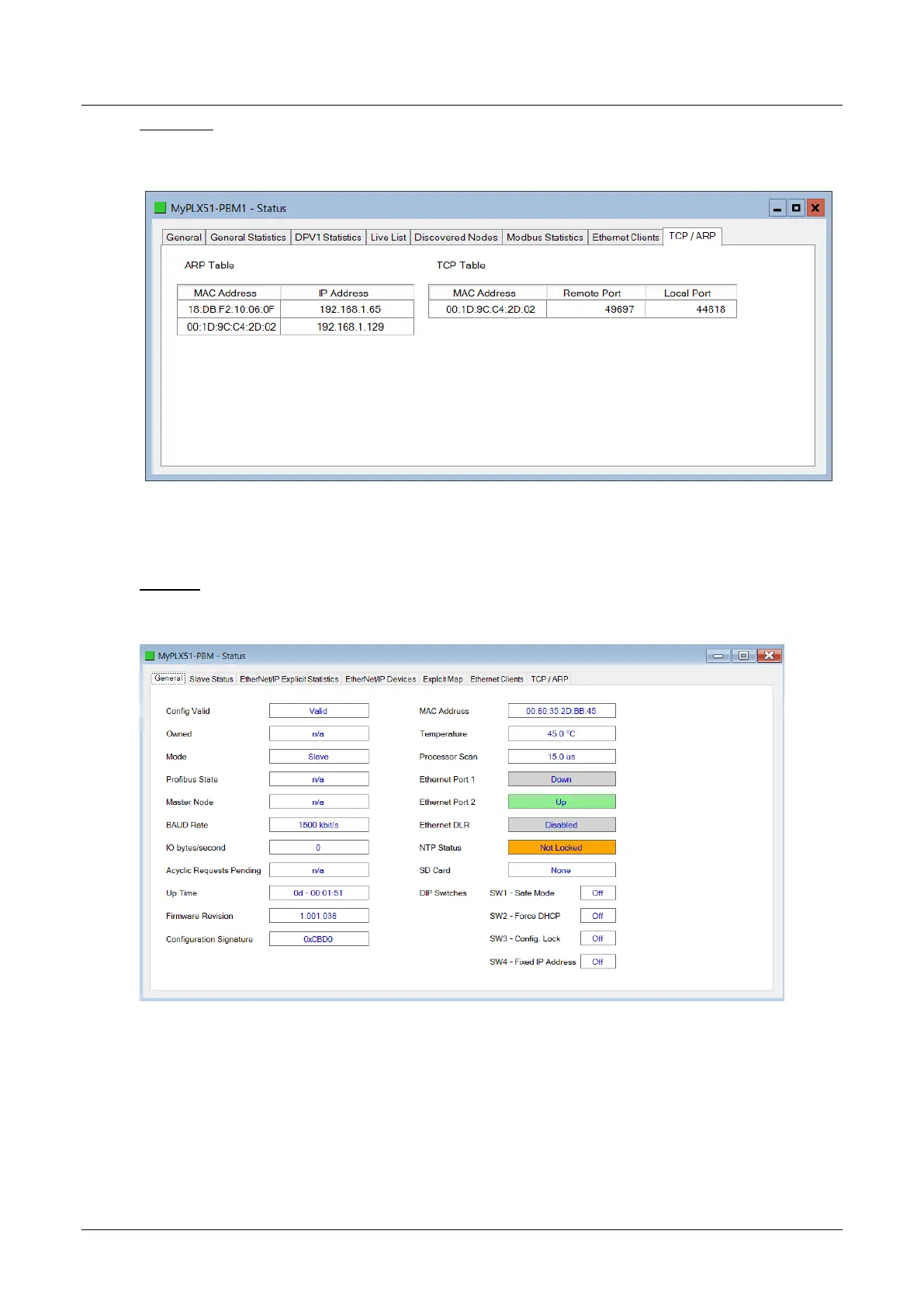

Figure 8.12 – PLX51-PBM (Master mode) status monitoring – Ethernet TCP / ARP Statistics
8.2.3 PLX51-PBM Slave Mode Status
General
The General tab displays the following general parameters. For more information,
please see page 159.
Figure 8.13 - PLX51-PBM (Slave Mode) General parameters
