PLX51-PBM Preface
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 9 of 196

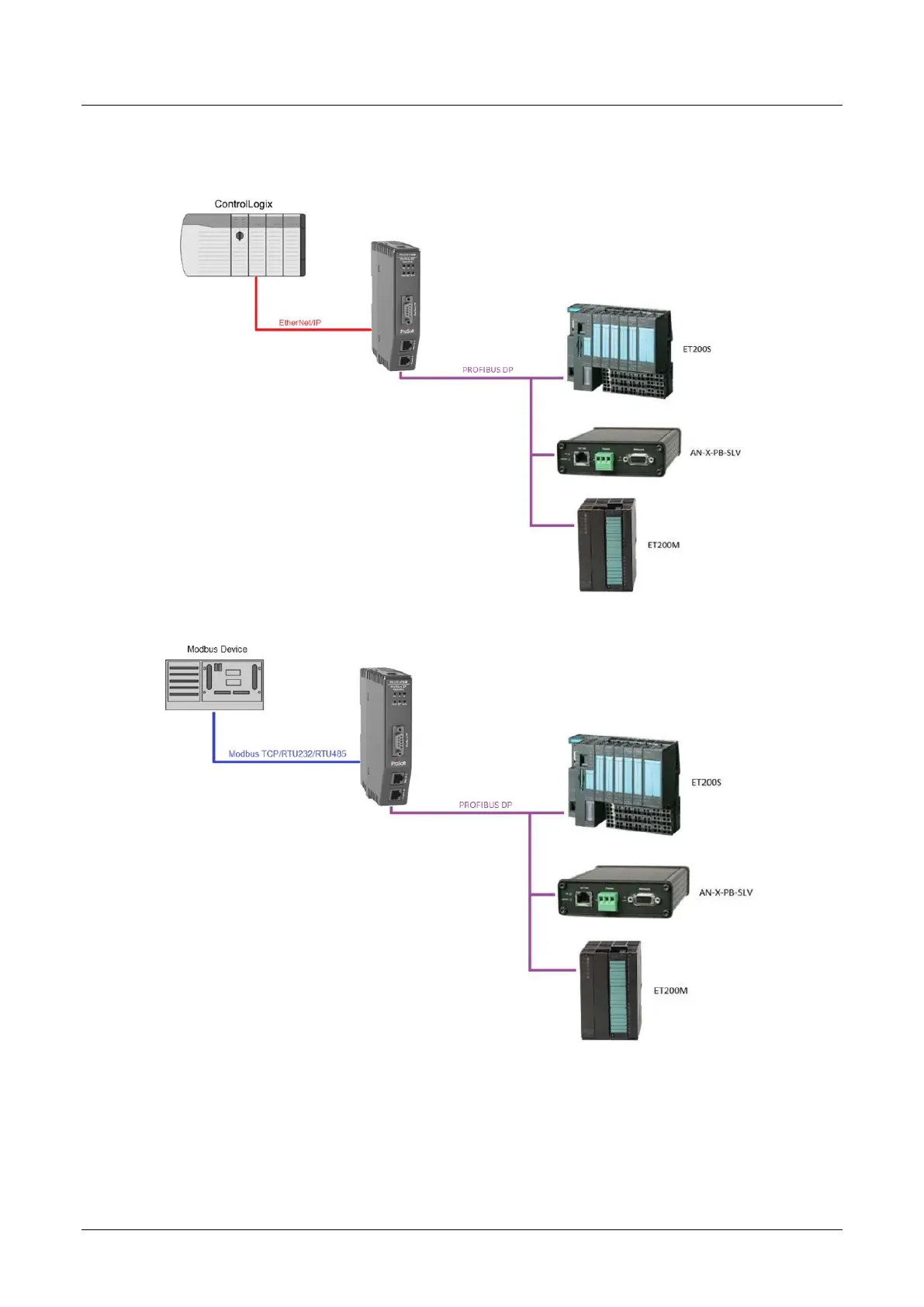

1.3 Architecture
The figures below provide an example of the typical network setup for a PROFIBUS
Master architecture using either an EtherNet/IP or Modbus Interface.
Figure 1.3 – PLX51-PBM PROFIBUS Master to EtherNet/IP architecture
Figure 1.4 – PLX51-PBM PROFIBUS Master to Modbus (TCP/RTU232/RTU485) architecture
