The DPV1 configuration consists of the following parameters:
Table 3.18 – Device DPV1 configuration parameters
Parameter
Description
Enable DPV1
Enables DPV1 capabilities for the PLX51-PBM in Slave
Mode.
Note: DPV1 capabilities are not available when the module is emulating the legacy
device.
Base 1ms
N/A
Enable Fail Safe
N/A
Check Config
N/A
Alarm Mode
N/A
Alarm Ack uses SAP50
This will force the PROFIBUS DP Master to use Service
Access Point (SAP) 50 to acknowledge alarms.
Alarm Enables
N/A
3.9.4 User Parameters
Note: You must configure the slave device’s user parameters in the settings of the PROFIBUS DP
Master.
The User Parameter configuration is shown in the figure below. The device User
Parameter configuration window is opened by either double clicking on the slave
device in the tree or right-clicking the slave device and selecting Configuration.

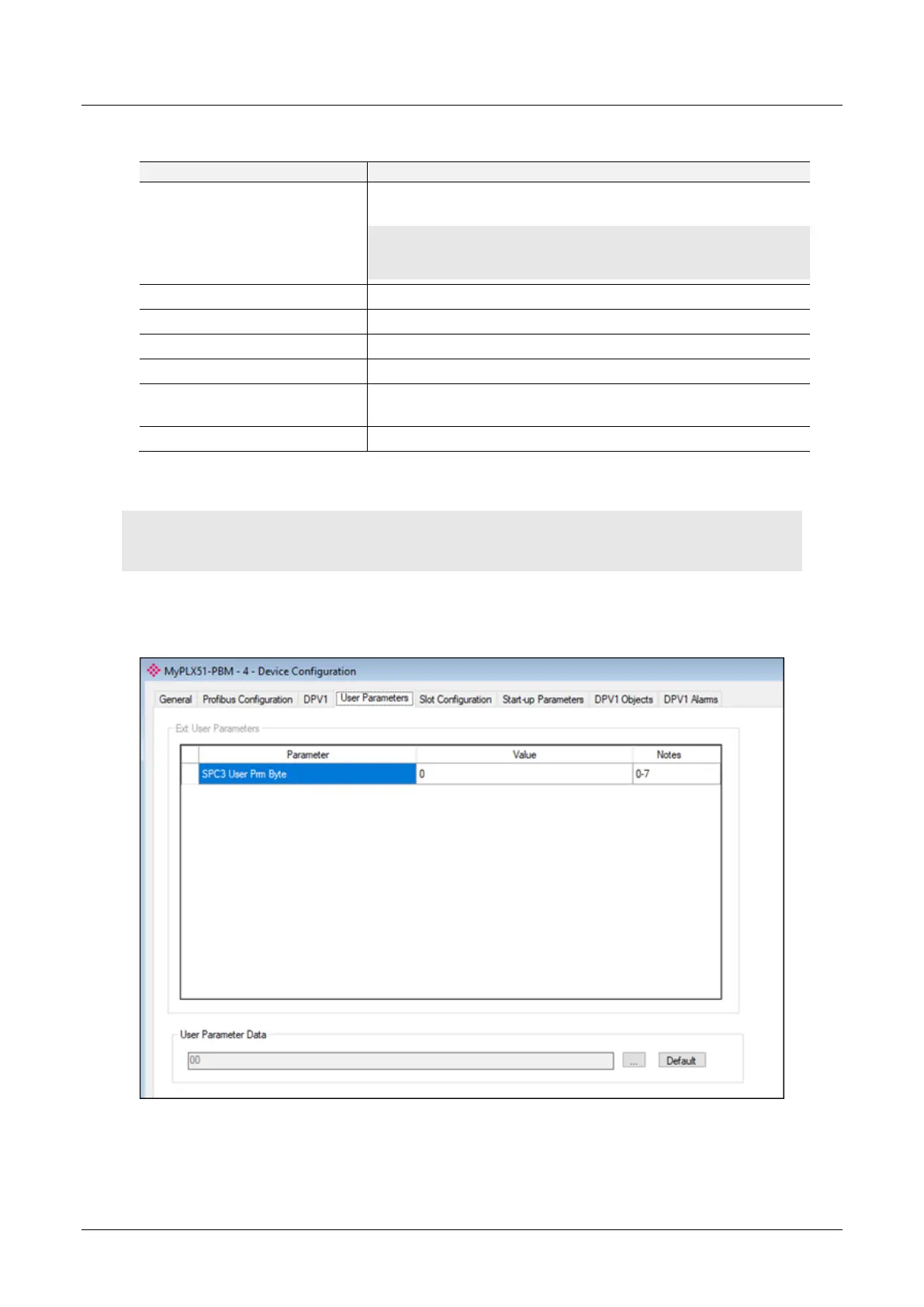

Figure 3.75 – Device User Parameter configuration parameters (legacy device)
