ProSoft Technology PLX51-PBM User Manual

PLX51-PBM Operation
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 143 of 196
5.5 Firmware Upgrade
The PLX51-PBM allows the user to upgrade the module firmware in the field. If the
firmware needs to be updated the user will need to use the PLX50 Configuration
Utility to update it.
In the PLX50 Configuration Utility go to the Tool menu and select the DeviceFlash
option.

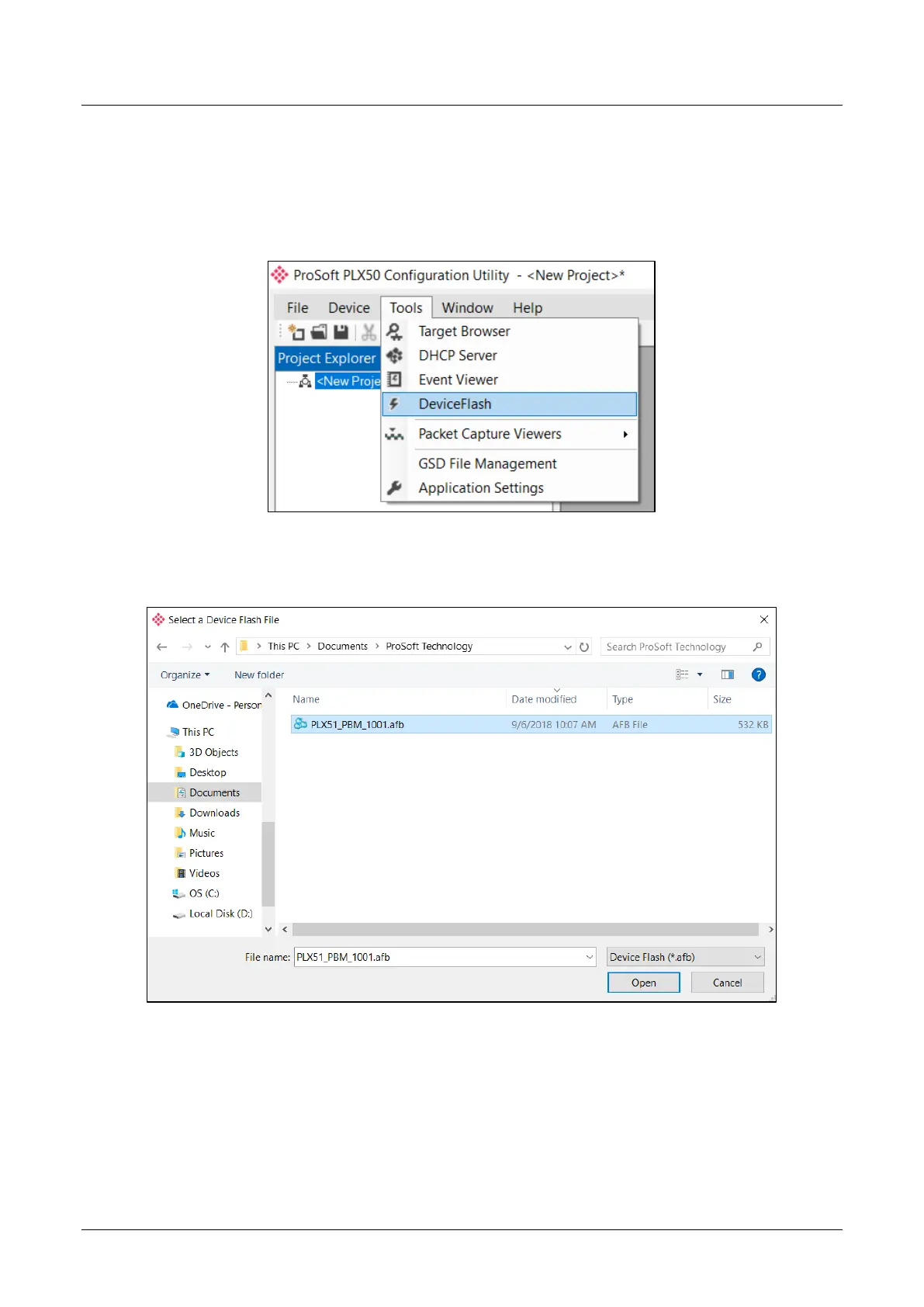

Figure 5.21 - DeviceFlash Tool
The user will need to select the appropriate AFB binary file which will be used to
upgrade the PLX51-PBM firmware.
Figure 5.22 - Select the AFB binary
