PLX51-PBM SD Card
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 97 of 196
4 SD Card
The PLX51-PBM supports an SD Card (see below) which can be used for disaster
recovery. The SD Card can be pre-loaded with the required firmware and/or
application configuration.

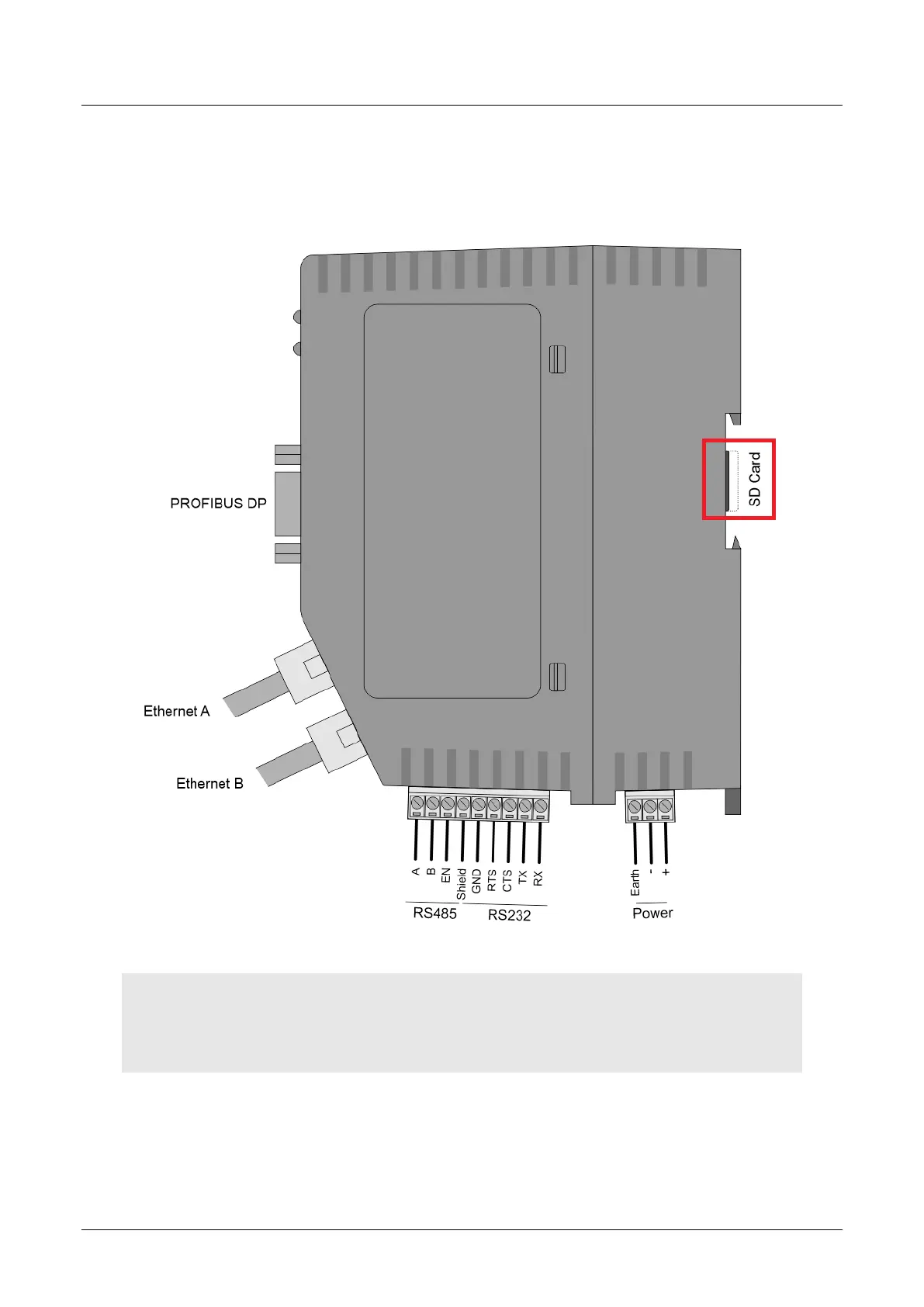

Figure 4.1 – Module Side View – SD Card Slot
IMPORTANT: The user will need to ensure that the SD Card has been formatted for FAT32.
IMPORTANT: All needed files must be copied into the root directory of the SD Card. The module will
not use files which are located in folders.
