ProSoft Technology PLX51-PBM User Manual

PLX51-PBM Setup
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 28 of 196
Use Single Write
Functions
When operating as a Modbus Master, the PLX51-PBM will use Modbus
Single Write functions in the Modbus Auxiliary Map when this option has been
selected and the write function has an element count of 1.
3.5.3 Modbus Addressing
The Modbus Addressing configuration is shown in the figure below. The PLX51-PBM
Modbus Addressing configuration window is opened by either double clicking on the
module in the tree or right-clicking the module and selecting Configuration.

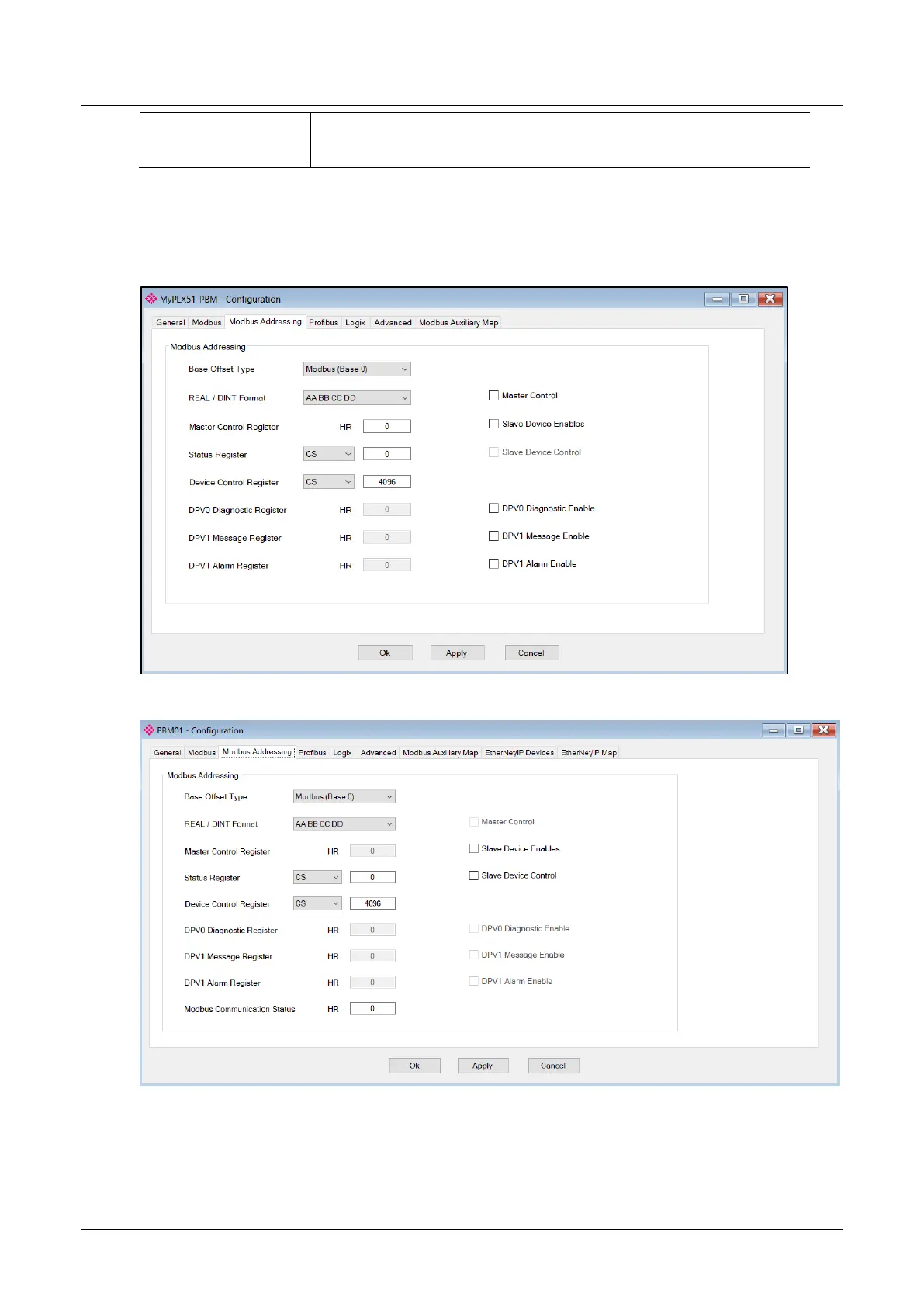

Figure 3.21 – PLX51-PBM (Master Mode) Modbus Addressing configuration
Figure 3.22 – PLX51-PBM (Slave Mode) Modbus Addressing configuration
