3.4 Creating a New Project
Before the user can configure the module, a new PLX50 Configuration Utility project
must be created. Under the File menu, select New.

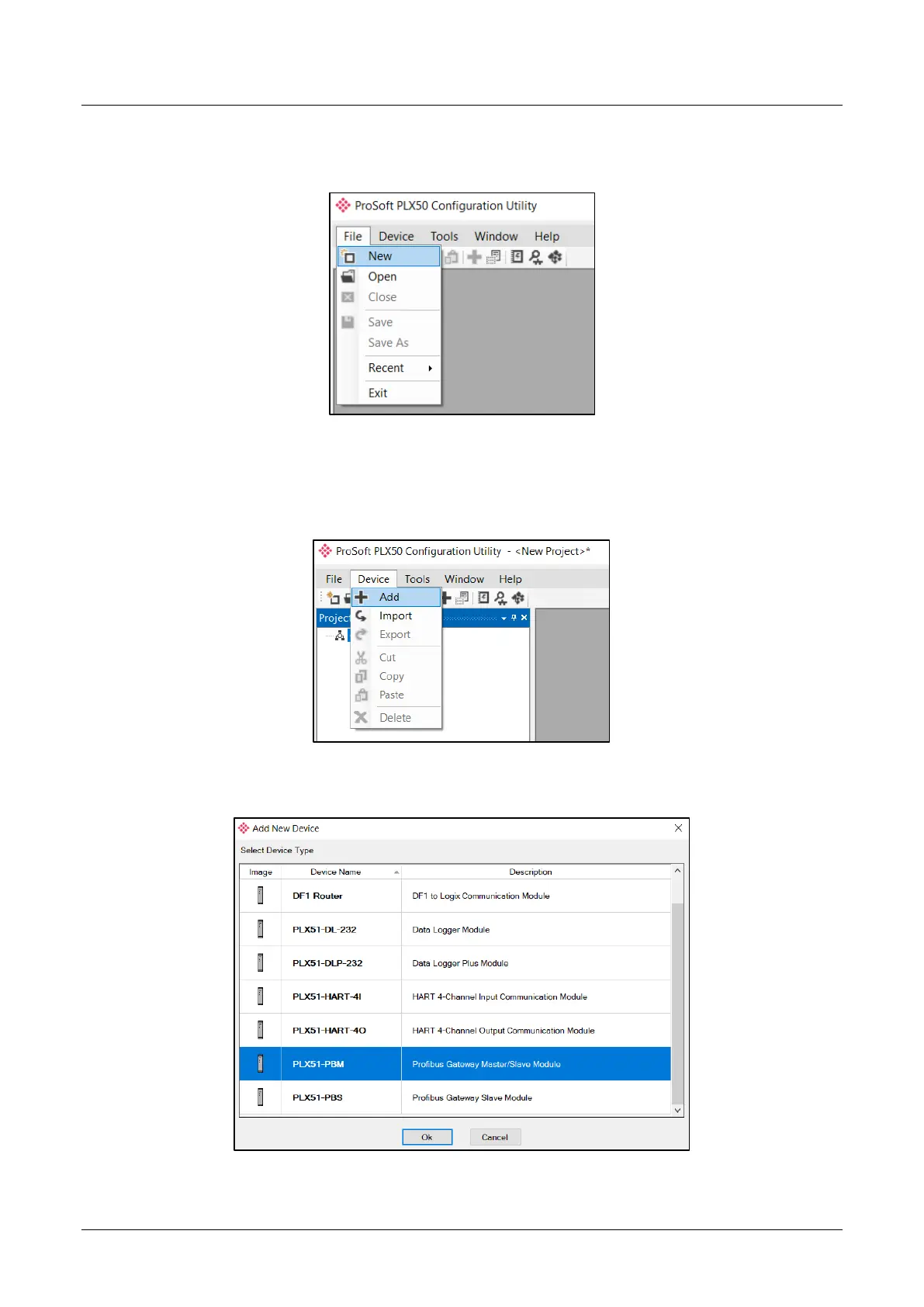

Figure 3.15 - Creating a new project
A PLX50 Configuration Utility Design Tool project will be created, showing the Project
Explorer tree view. To save the project use the Save option under the File menu.
A new device can now be added by selecting Add under the Device menu.
Figure 3.16 - Adding a new device
In the Add New Device window, select the PLX51-PBM and click the Ok button.
Figure 3.17 – PLX51-PBM
