PLX51-PBM Installation
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 15 of 196
2.2 Module Mounting
The module provides a DIN rail clip to mount onto a 35mm DIN rail.

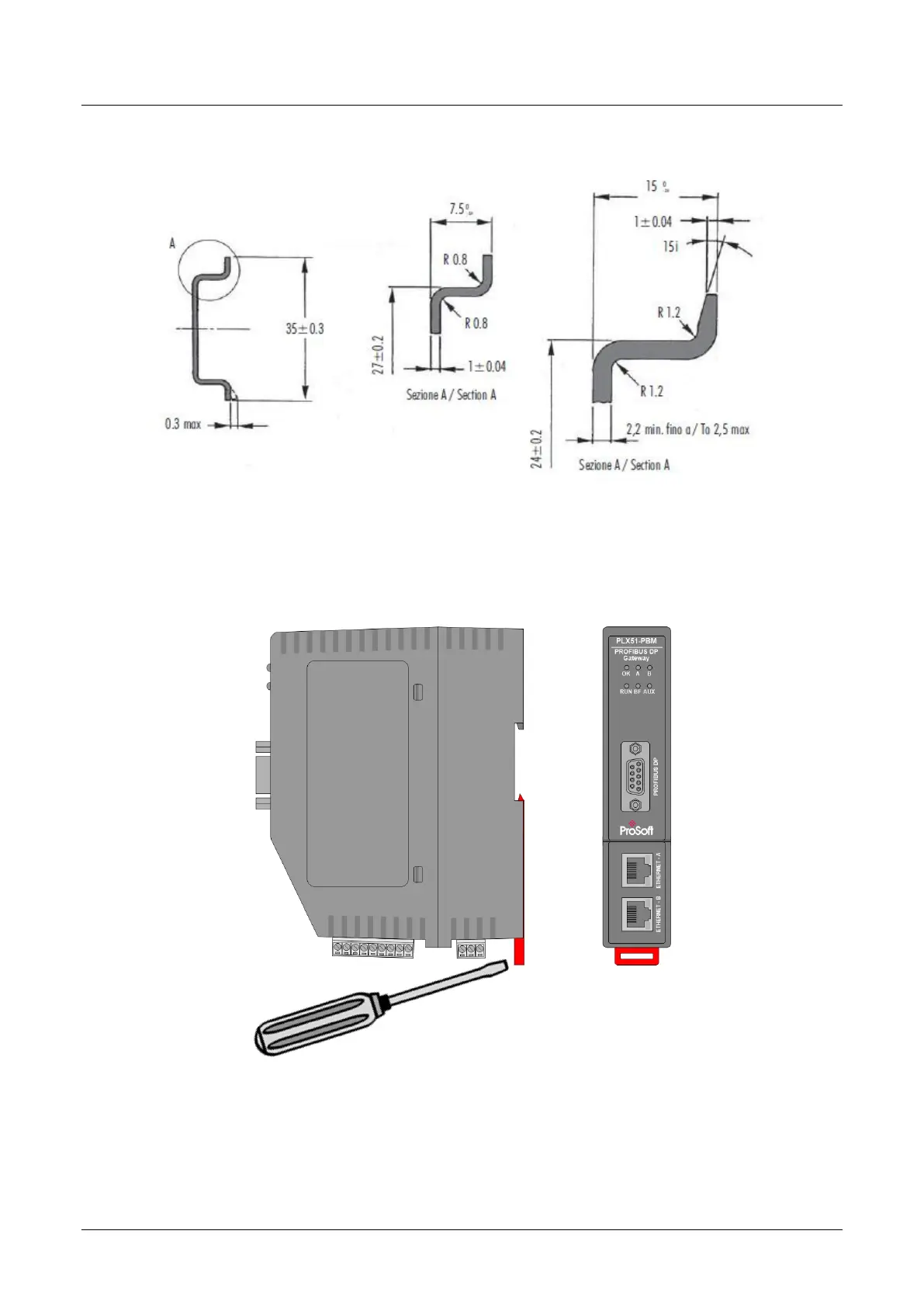

Figure 2.5 - DIN rail specification
The DIN rail clip is mounted on the bottom of the module at the back as shown in the
figure below. Use a flat screw driver to pull the clip downward. This will enable the
user to mount the module onto the DIN rail. Once the module is mounted onto the
DIN rail the clip must be pushed upwards to lock the module onto the DIN rail.
Figure 2.6 - DIN rail mouting
