PLX51-PBM SD Card
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 101 of 196
4.2.2 PLX50CU Upload
When the SD Card has been inserted into the module and the user is online with the
module in PLX50CU, then the user has the option to directly upload the configuration
on to the SD Card using the Save Configuration to SD Card option. This will copy the
configuration that has been downloaded to the module directly to the SD Card
without the need to remove it from the module and inserted into a PC.
IMPORTANT: All other configuration files in the SD Card root directory will be deleted when the upload
is done.

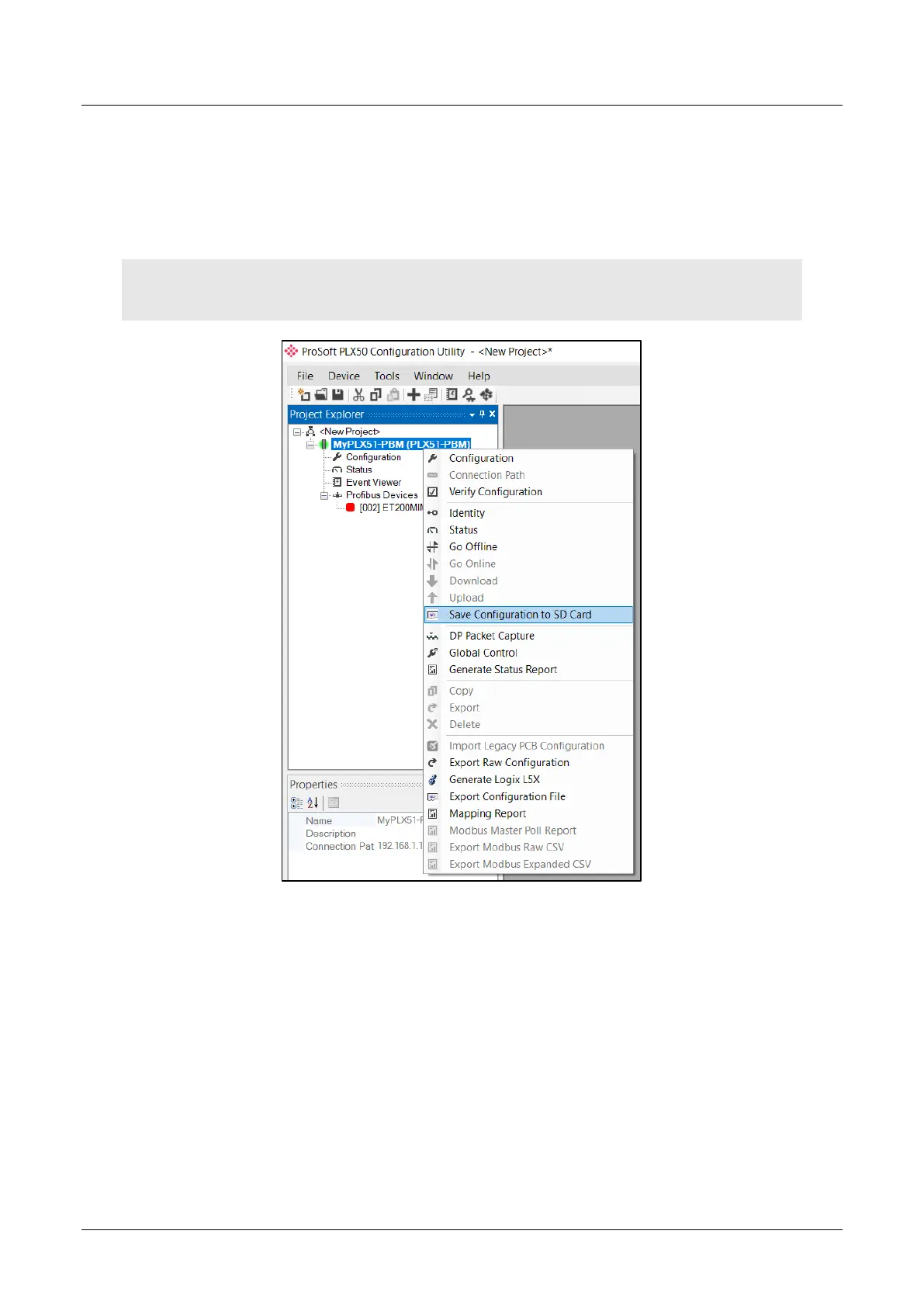

Figure 4.6 – Save Configuration to SD Card
