PLX51-PBM Setup
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 45 of 196
3.7.4 Discovery Report
This report summarizes the following device information found during discovery:
Address, Identity Number, Status of configuration, Device name, GSD filename, and
Upload Configuration status.

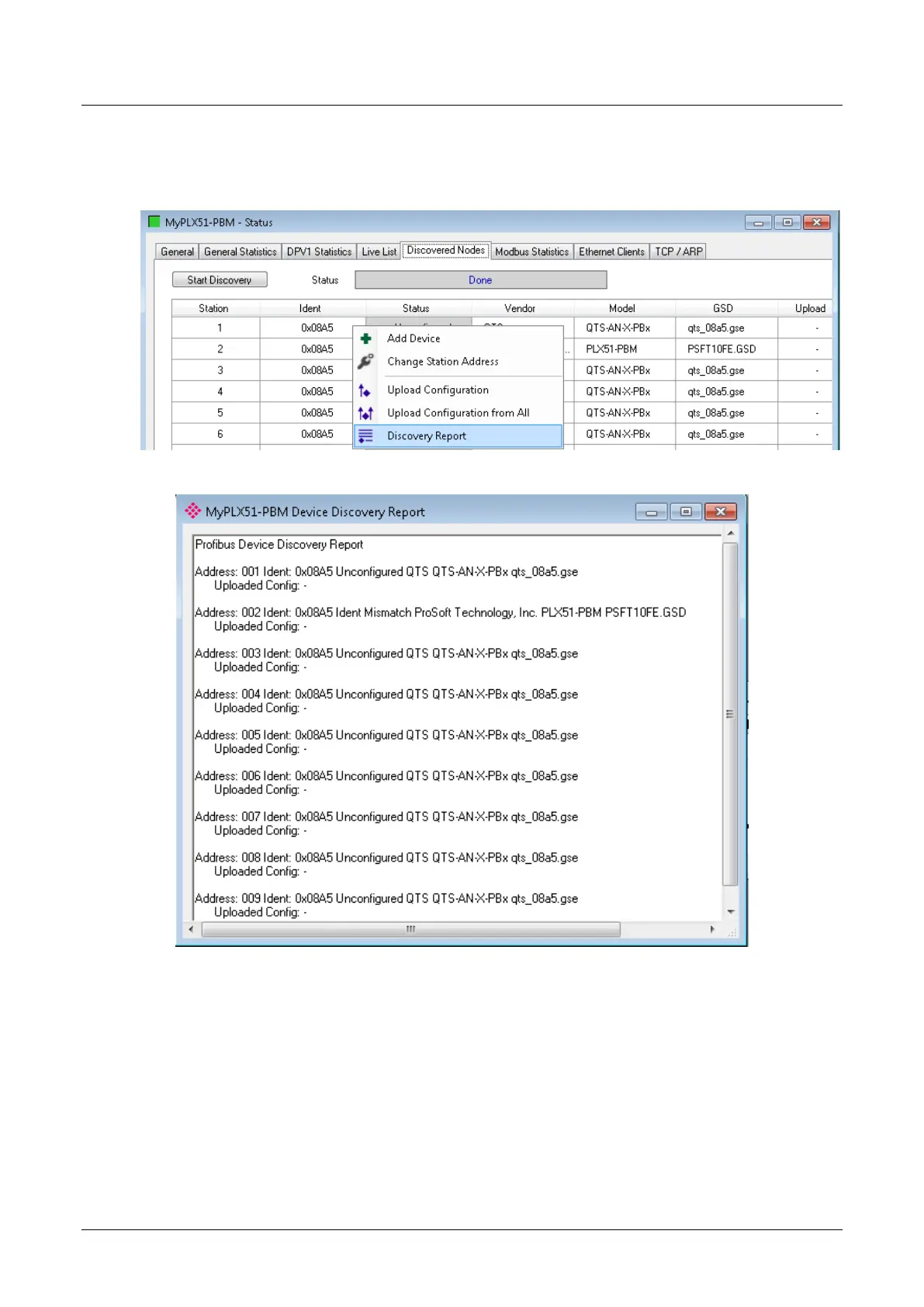

Figure 3.43 – Accessing the Discovery Report
Figure 3.44 – Discovery Report
