3.5.4 PROFIBUS – Master Mode
The PROFIBUS configuration (in Master Mode) is shown in the figure below. The
PLX51-PBM PROFIBUS configuration window is opened by either double clicking on
the module in the tree or right-clicking the module and selecting Configuration.

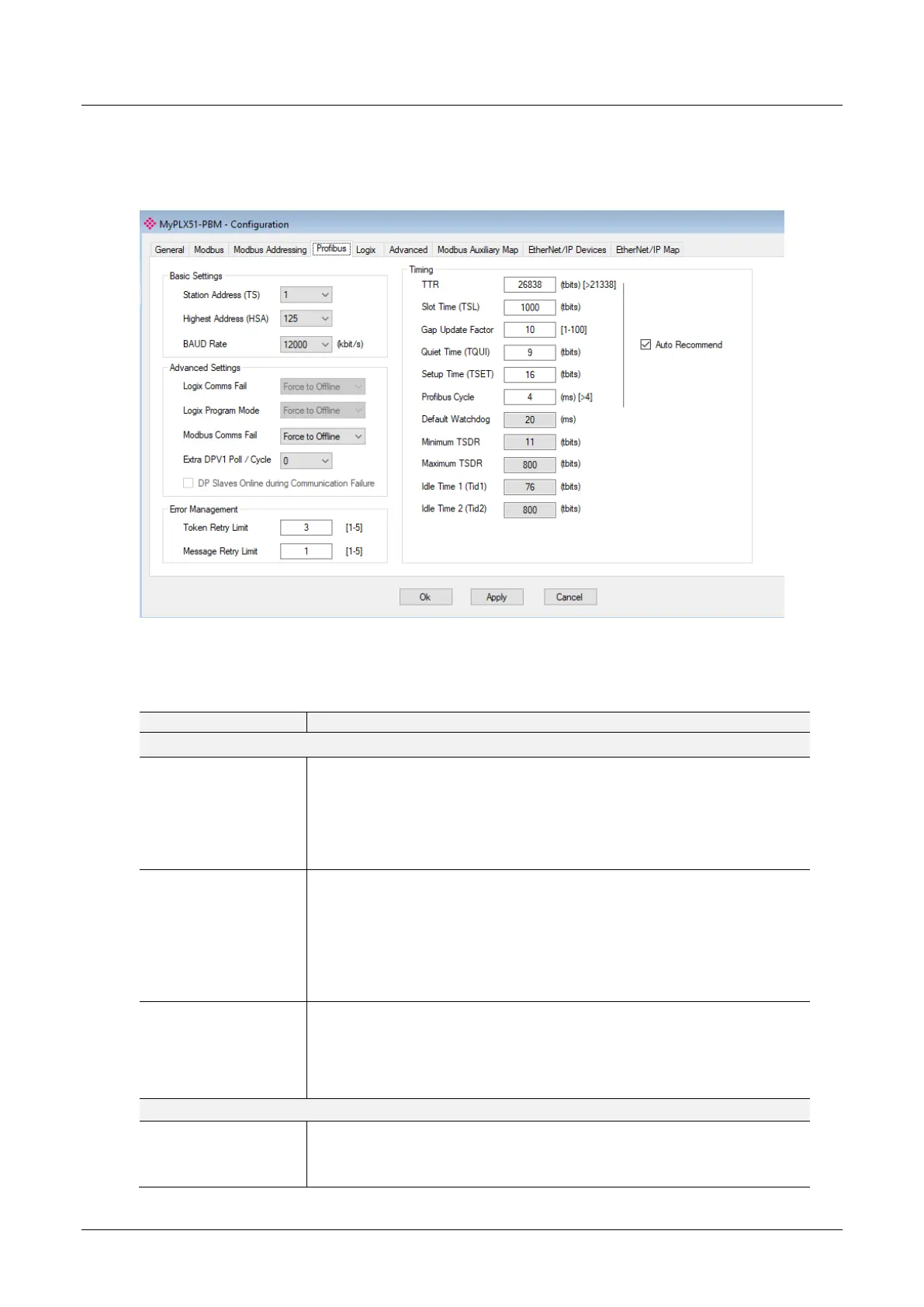

Figure 3.23 – PLX51-PBM PROFIBUS configuration – Master Mode
The PROFIBUS configuration consists of the following parameters:
Table 3.4 - PROFIBUS configuration parameters
Parameter
Description
Basic Settings
Station Address (TS)
PROFIBUS Station Address for the PLX51-PBM module. TS should be
different than any other slaves address on the PROFIBUS network, it should
also be less-than or equal to the HSA below:
Min: 0
Max: 126
Default: 1
Highest Address (HSA)
Highest Station Address. This is the highest station address of the active
stations (masters). Passive stations (slaves) can have a higher address than
the HSA.
A low HSA is better for PROFIBUS performance.
Min: 1
Max: 126
Default: 126
BAUD Rate
Baud Rate (in Kbps) of the PROFIBUS network: 9.6, 19.2, 45.45,
93.75, 187.5, 500, 1500, 3000, 6000 or 12000 Kbps. The baud rate selected
should be supported by all slaves in the configuration. The baud rate should
be
selected depending on the cable length, see chapter “PROFIBUS DP”
Advanced Settings
Logix Comms Fail
Specifies the PROFIBUS Master behavior when losing communication with
Logix, either:
 Force to Offline
