8.5 Module Event Log
The PLX51-PBM module logs various diagnostic records to an internal event log.
These logs are stored in non-volatile memory and can be displayed using the PLX50
Configuration Utility or via the web interface. To view them in the PLX50
Configuration Utility, select the Event Viewer option in the Project Explorer tree.

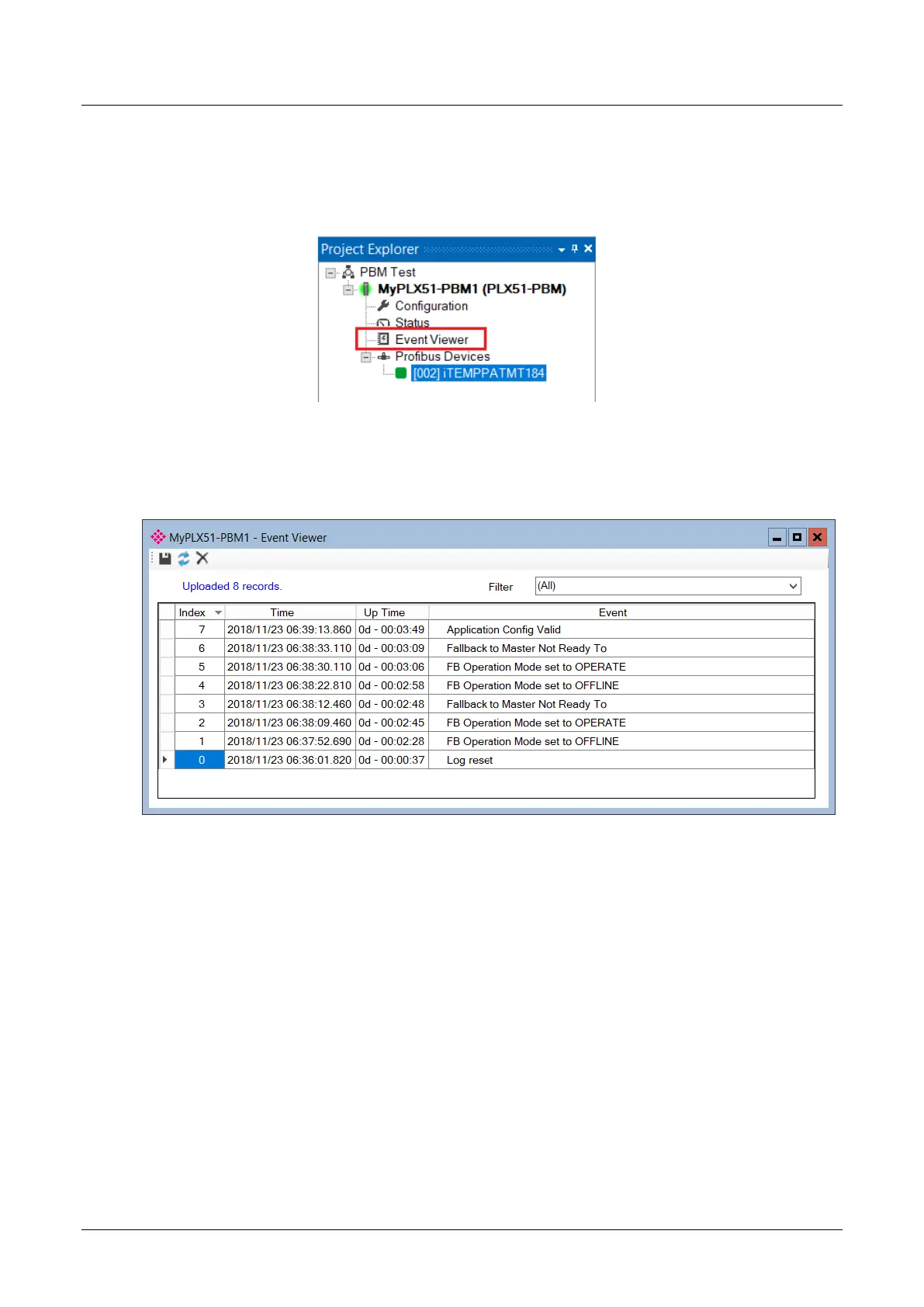

Figure 8.36. - Selecting the module Event Log
The Event Log window will open and automatically read all the events from the
module. The log entries are sorted so as to have the latest record at the top. Custom
sorting is achieved by double-clicking on the column headings.
Figure 8.37. – Module Event Log
The log can also be stored to a file for future analysis, by selecting the Save button in
the tool menu.
To view previously saved files, use the Event Log Viewer option under the Tools
menu.
