8.6 Web Server
The PLX51-PBM provides a web server allowing a user without the PLX50
Configuration Utility, Logix, or Modbus device to view various diagnostics of the
module.
NOTE: The web server is view only and thus no parameters or configuration can be altered from the
web interface.

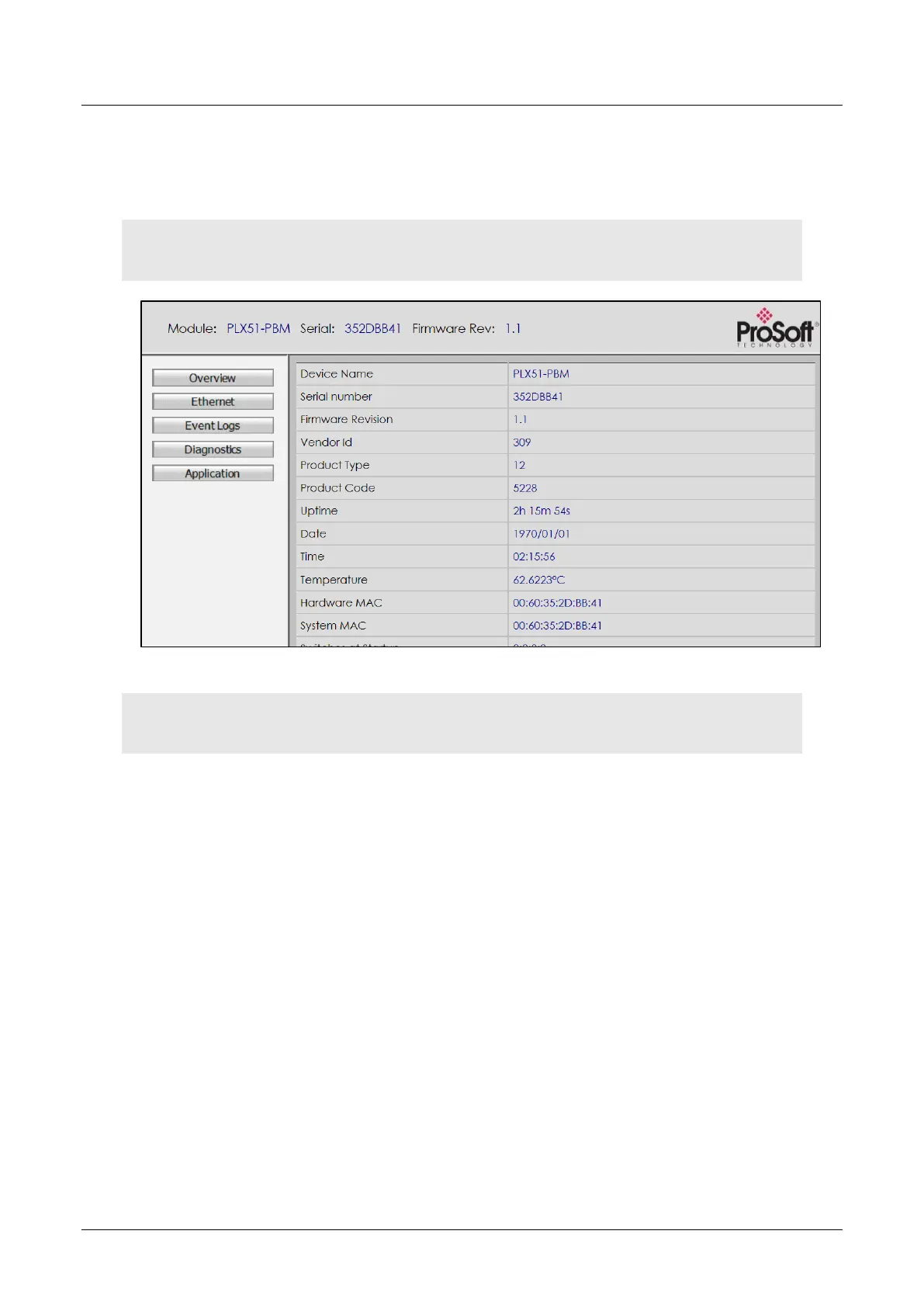

Figure 8.38 - Web interface
NOTE: The parameters and diagnostics in the webserver will match those in the PLX50 Configuration
Utility status monitoring of the PLX51-PBM.
