PLX51-PBM Technical Specifications
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 186 of 196
9 Technical Specifications
9.1 Dimensions

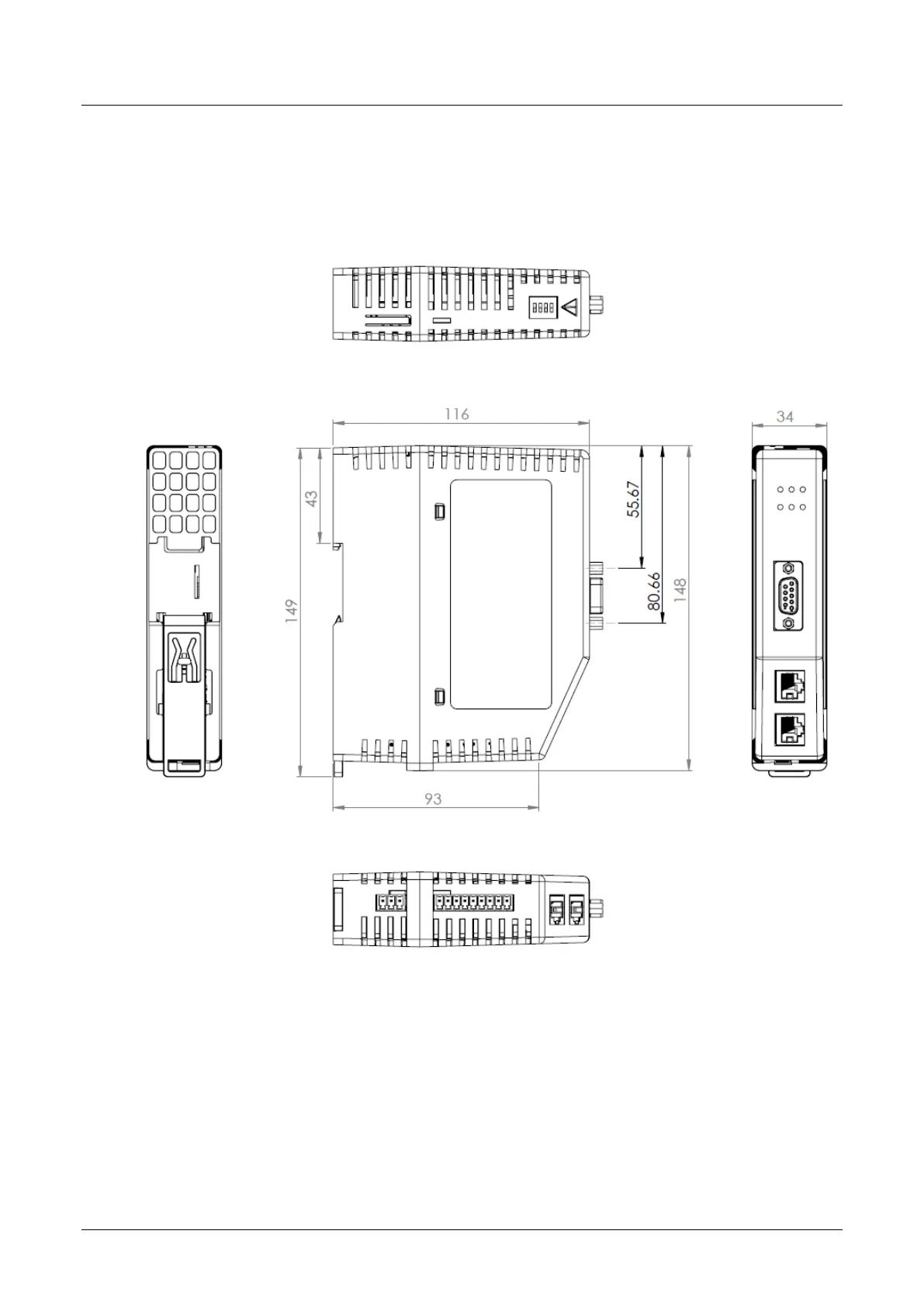

Below are the enclosure dimensions. All dimensions are in millimetres.
Figure 9.1 – PLX51-PBM enclosure dimensions
