ProSoft Technology PLX51-PBM User Manual

PLX51-PBM Setup
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 63 of 196
3.9.3 DPV1

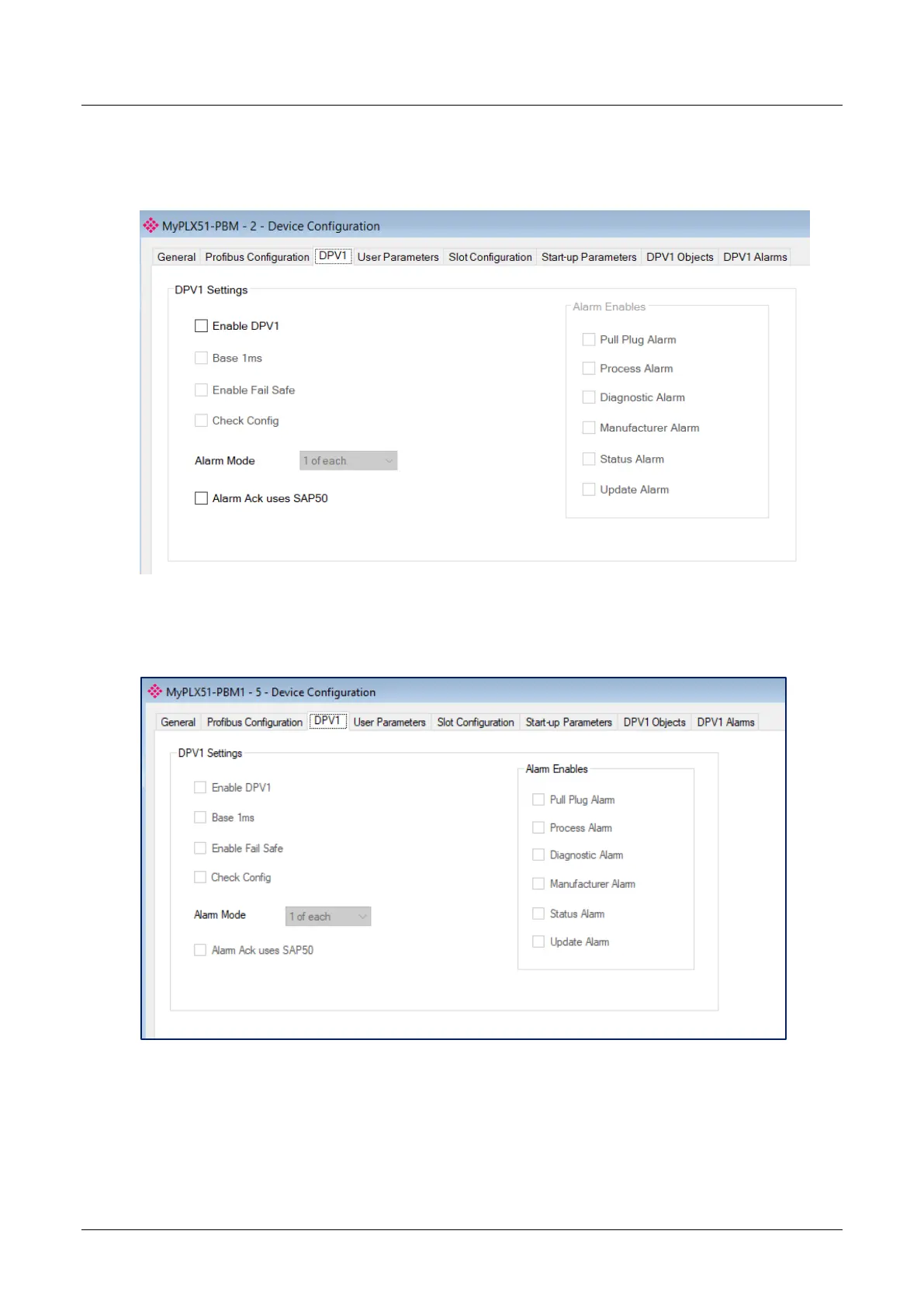

The DPV1 configuration is shown in the figure below. The slave device DPV1
configuration window is opened by either double clicking on the slave device in the
tree or right-clicking the slave device and selecting Configuration.
Figure 3.73 – Device DPV1 configuration parameters
When the module is emulating the legacy device, the PLX51-PBM DPV1
configuration parameters will appear as follows:
Figure 3.74 – Device DPV1 configuration parameters (legacy device)
