PLX51-PBM Operation
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 144 of 196

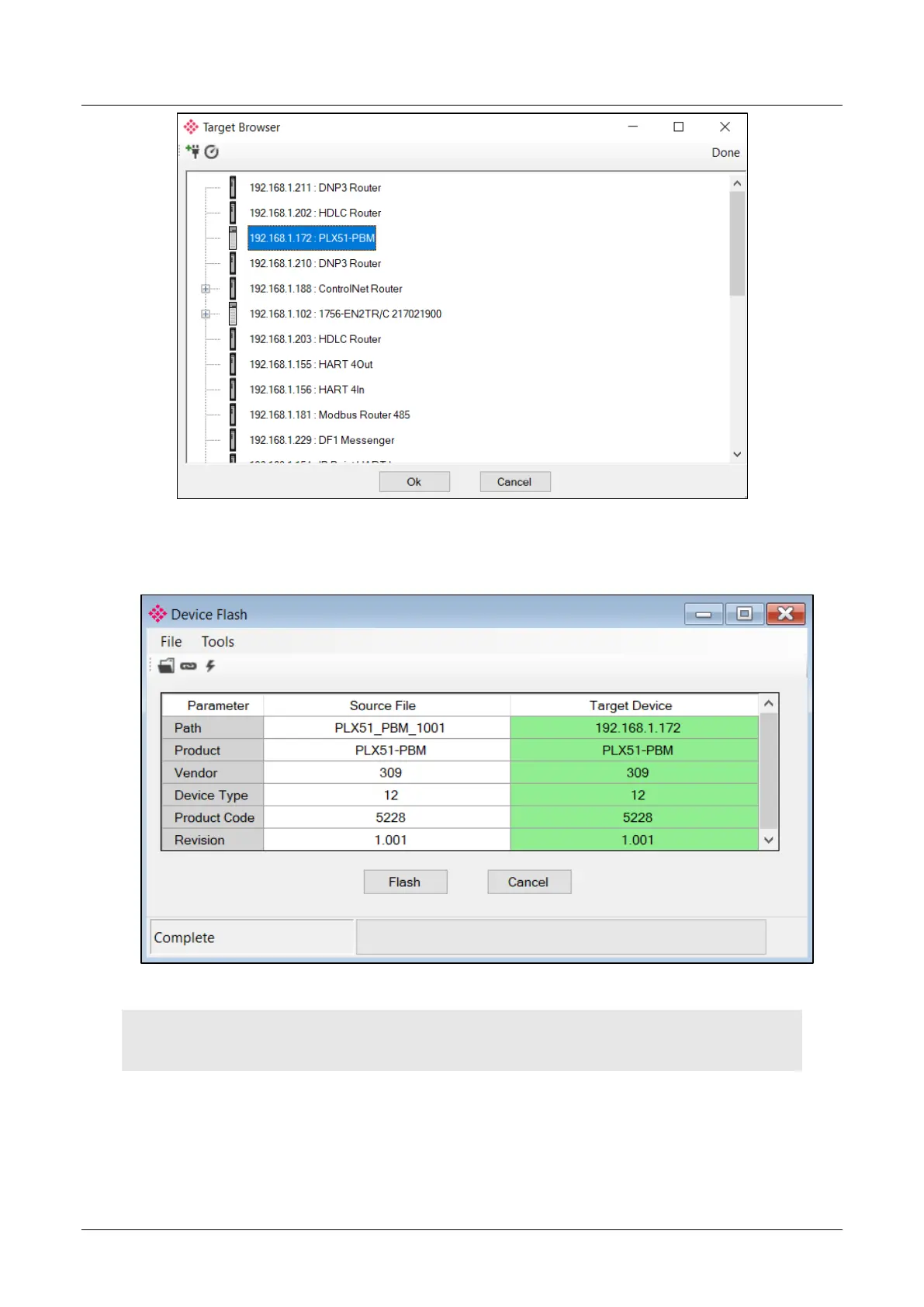

Figure 5.23 - Select the correct PLX51-PBM module
Once the module is done upgrading the firmware the Device Flash tool will provide
the user with the details of the updated module.
Figure 5.24 – PLX51-PBM successfully updated.
IMPORTANT: The PLX51-PBM firmware is digitally signed so the user will only be able to flash the
PLX51-PBM with authorized firmware.
