PLX51-PBM Diagnostics
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 166 of 196

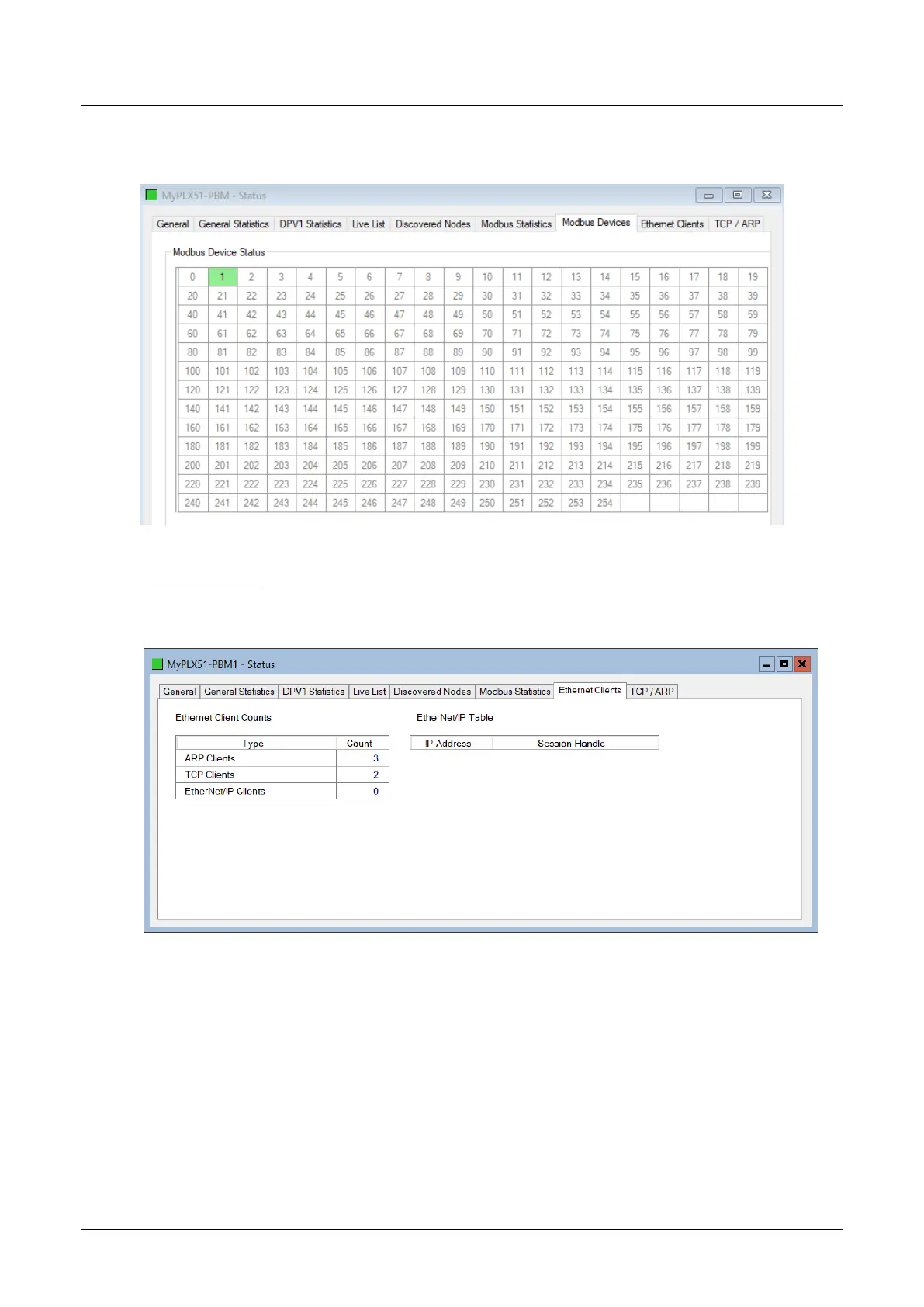

Modbus Devices
The Modbus Devices tab displays the active Modbus Client/Server devices the
module is communicating with.
Figure 8.10 – PLX51-PBM Master mode status monitoring – Modbus Devices
Ethernet Clients
The Ethernet Clients tab displays details of the Ethernet and EtherNet/IP clients
connected to the PLX51-PBM.
Figure 8.11 – PLX51-PBM (Master mode) status monitoring – Ethernet Client Statistics
