PLX51-PBM Setup
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 42 of 196
If a device has been found that is not currently in the PLX51-PBM configured device
list the user will be able to add the device from this window by right-clicking on the
device and selecting Add Device.
NOTE: The GSD file will need to be already registered before a device can be added to the PLX51-
PBM configuration.

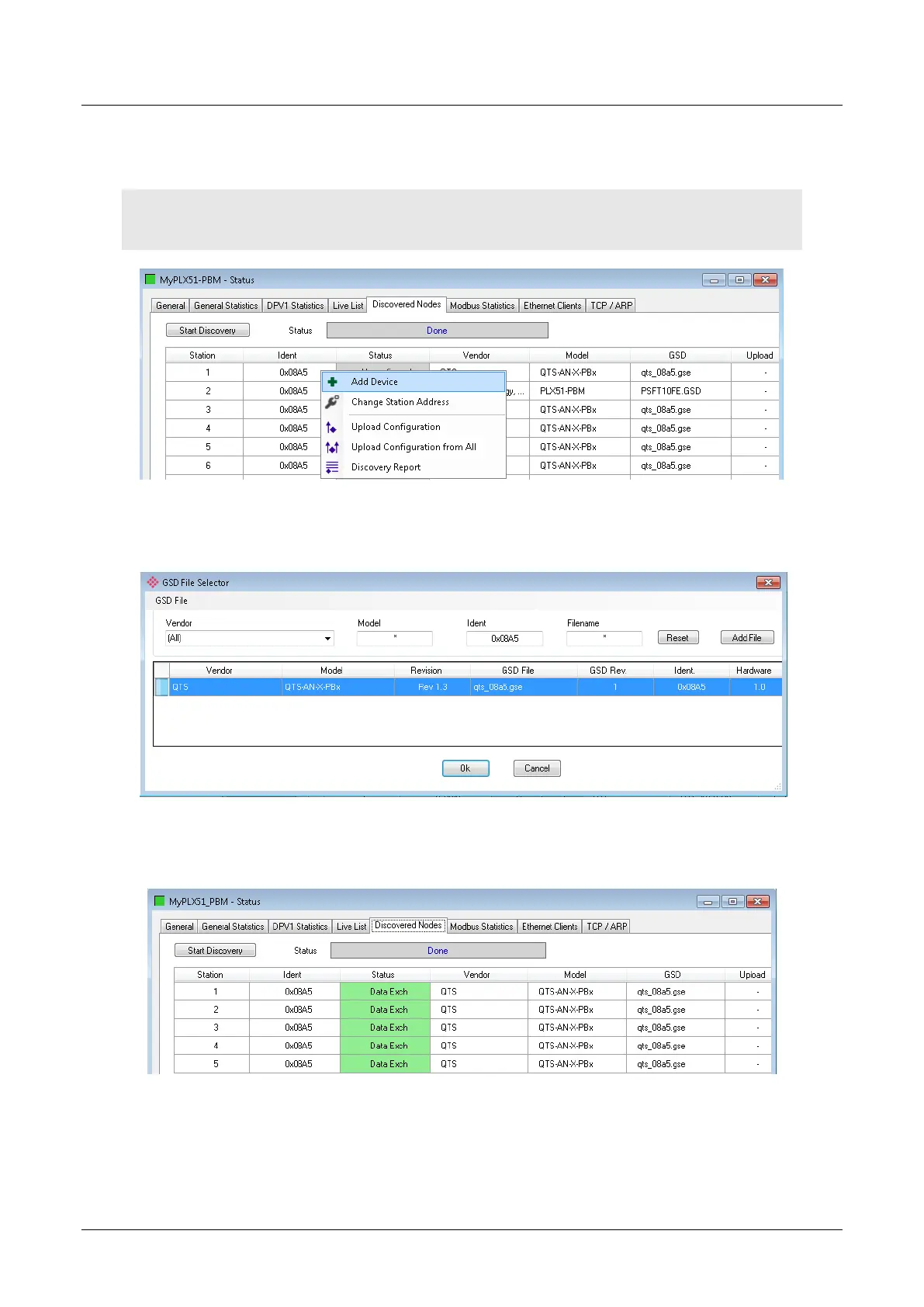

Figure 3.36 – Adding the Field Devices Found
The user will need to select the GSD file add the device to the PLX51-PBM
configured device list.
Figure 3.37 – Selecting the GSD for the slave device
Once the devices have been correctly set up (as well as the correct mapping is in
Logix) the devices will show up as exchanging data.
Figure 3.38 – Discovering running devices
