PLX51-PBM Operation
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 105 of 196
Master Control
The user will need to set the PROFIBUS Operating mode from the PLX51-PBM Logix
output assembly in the Logix controller.

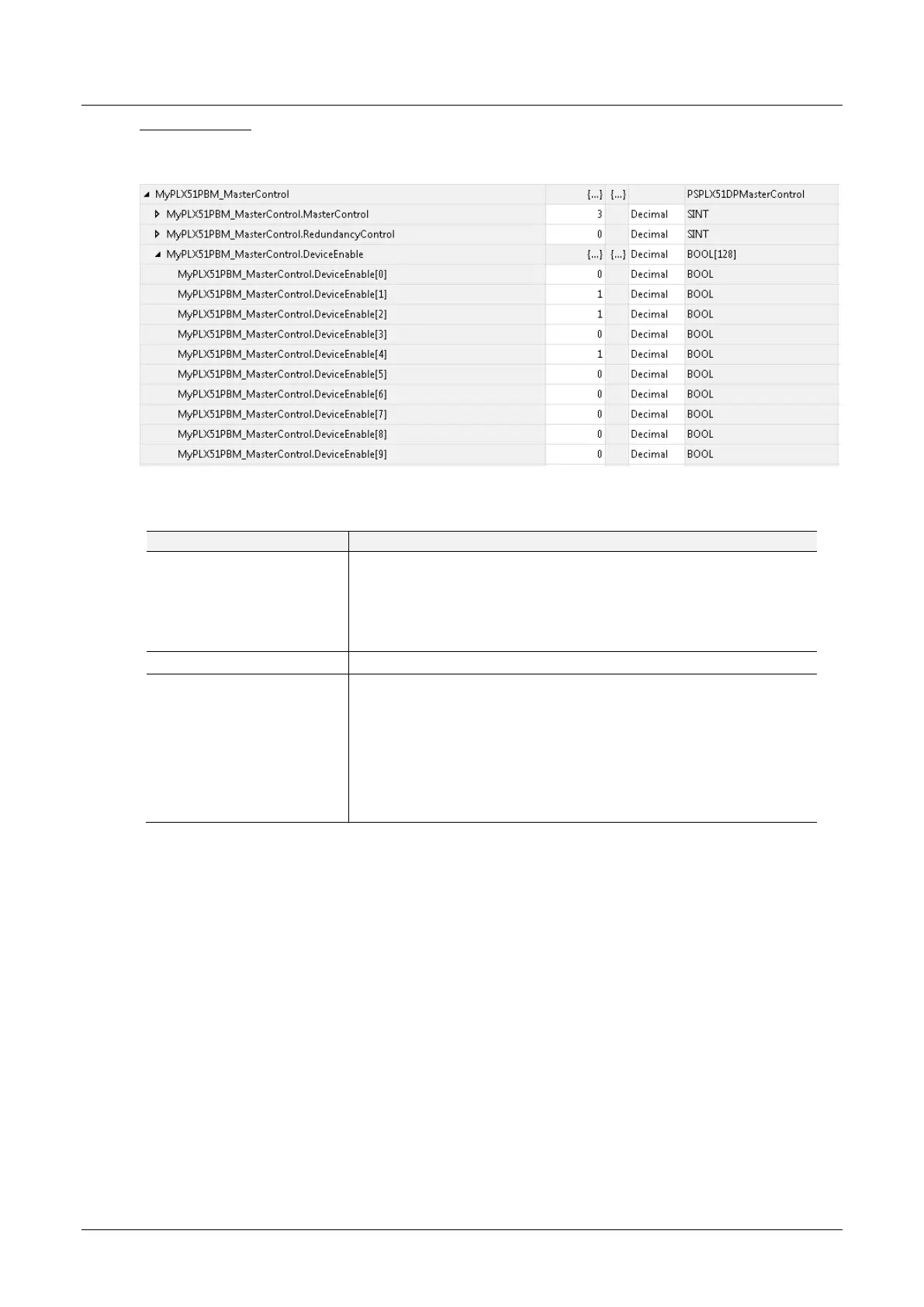

Figure 5.2 – Master Control tags
Table 5.2 – Master Control tags
This tag is used to set the state of the fieldbus network.
0 – Set PROFIBUS network state to OFFLINE
1 – Set PROFIBUS network state to STOP
2 – Set PROFIBUS network state to CLEAR
3 – Set PROFIBUS network state to OPERATIONAL
This field is currently reserved.
These bits enable nodes on the PROFIBUS network for data exchange.
Each bit represents a node. When the specific bit is set ‘1’ then the
device (if configured) will exchange data with the PLX51-PBM and when
the bit is off ‘0’ the device does exchange data with the PLX51-PBM.
Bit 0 – Node 0 is enabled for data exchange
Bit 1 – Node 1 is enabled for data exchange
Bit 126 – Node 126 is enabled for data exchange
The user will be able to see if there are any faults (e.g. configured device not found)
by viewing the LEDs of the PLX51-PBM (see the Diagnostics section for more
details), by going online with the module in the PLX50 Configuration Utility and
viewing the PLX51-PBM Master and Device Diagnostics, or by viewing the input
assembly of the PLX51-PBM in Logix.
