PLX51-PBM Diagnostics
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 163 of 196
DPV1 Statistics
The DPV1 Statistics (PLX51-PBM Master mode only) tab displays the following
general parameters:

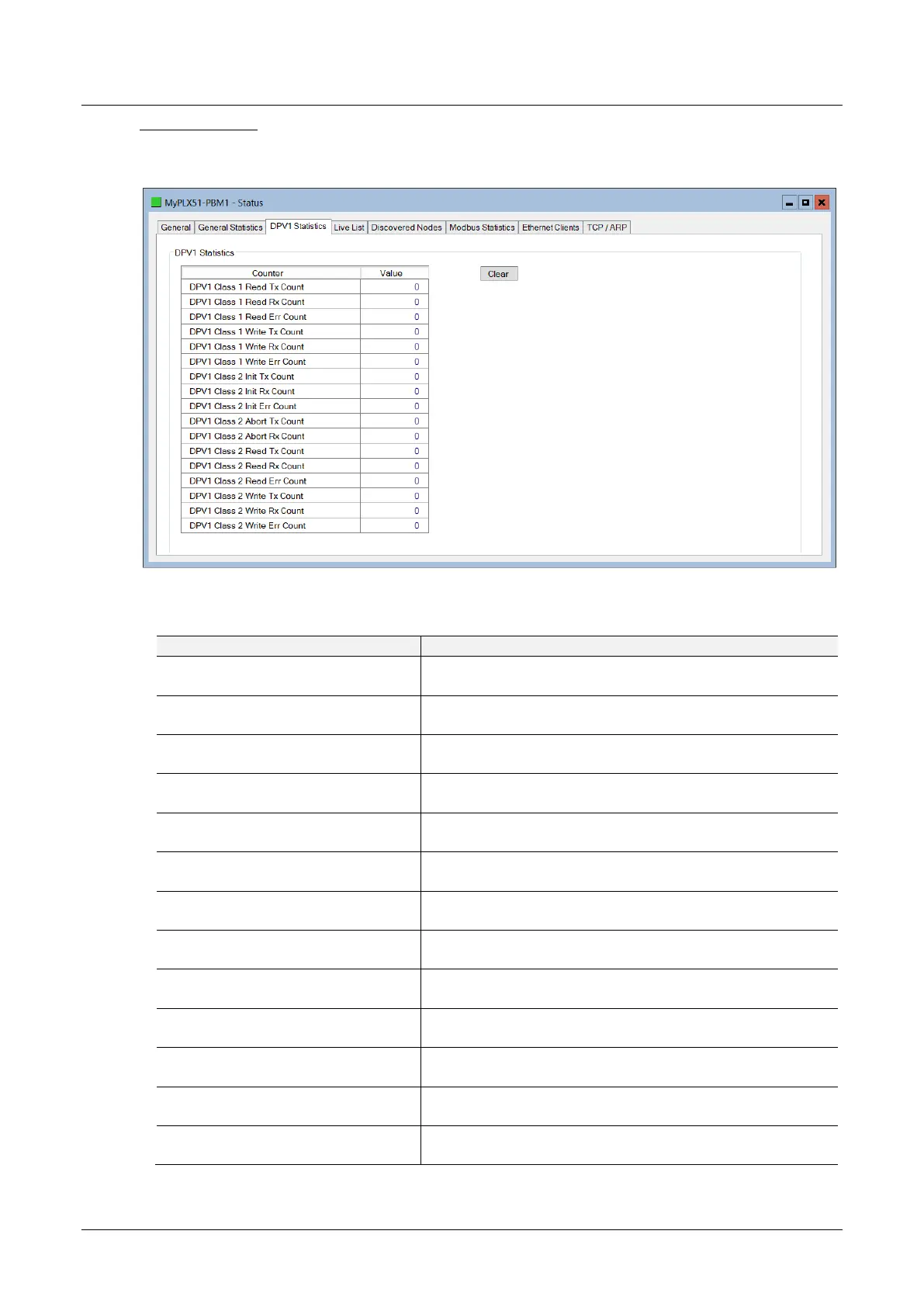

Figure 8.6 – PLX51-PBM (Master Mode) Status monitoring – DPV1 Statistics
Table 8.4 - Parameters displayed in the Status Monitoring – DPV1 Statistics Tab
DPV1 Class 1 Read Tx Count
The number of PROFIBUS DPV1 Class 1 Read requests sent
from the PLX51-PBM.
DPV1 Class 1 Read Rx Count
The number of successful PROFIBUS DPV1 Class 1 Read
responses received by the PLX51-PBM.
DPV1 Class 1 Read Err Count
The number of failed PROFIBUS DPV1 Class 1 Read responses
received by the PLX51-PBM.
DPV1 Class 1 Write Tx Count
The number of PROFIBUS DPV1 Class 1 Write requests sent
from the PLX51-PBM.
DPV1 Class 1 Write Rx Count
The number of successful PROFIBUS DPV1 Class 1 Write
responses received by the PLX51-PBM.
DPV1 Class 1 Write Err Count
The number of failed PROFIBUS DPV1 Class 1 Write responses
received by the PLX51-PBM.
DPV1 Class 2 Init Tx Count
The number of PROFIBUS DPV1 Class 2 Initialize requests sent
from the PLX51-PBM.
DPV1 Class 2 Init Rx Count
The number of successful PROFIBUS DPV1 Class 2 Initialize
responses by the PLX51-PBM.
DPV1 Class 2 Init Err Count
The number of failed PROFIBUS DPV1 Class 2 Initialize
responses received by the PLX51-PBM.
DPV1 Class 2 Abort Tx Count
The number of PROFIBUS DPV1 Class 2 Abort requests sent
from the PLX51-PBM.
DPV1 Class 2 Abort Rx Count
The number of PROFIBUS DPV1 Class 2 Abort messages
received by the PLX51-PBM.
DPV1 Class 2 Read Tx Count
The number of PROFIBUS DPV1 Class 2 Read requests sent
from the PLX51-PBM.
DPV1 Class 2 Read Rx Count
The number of successful PROFIBUS DPV1 Class 2 Read
responses received by the PLX51-PBM
