PLX51-PBM Setup
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 53 of 196

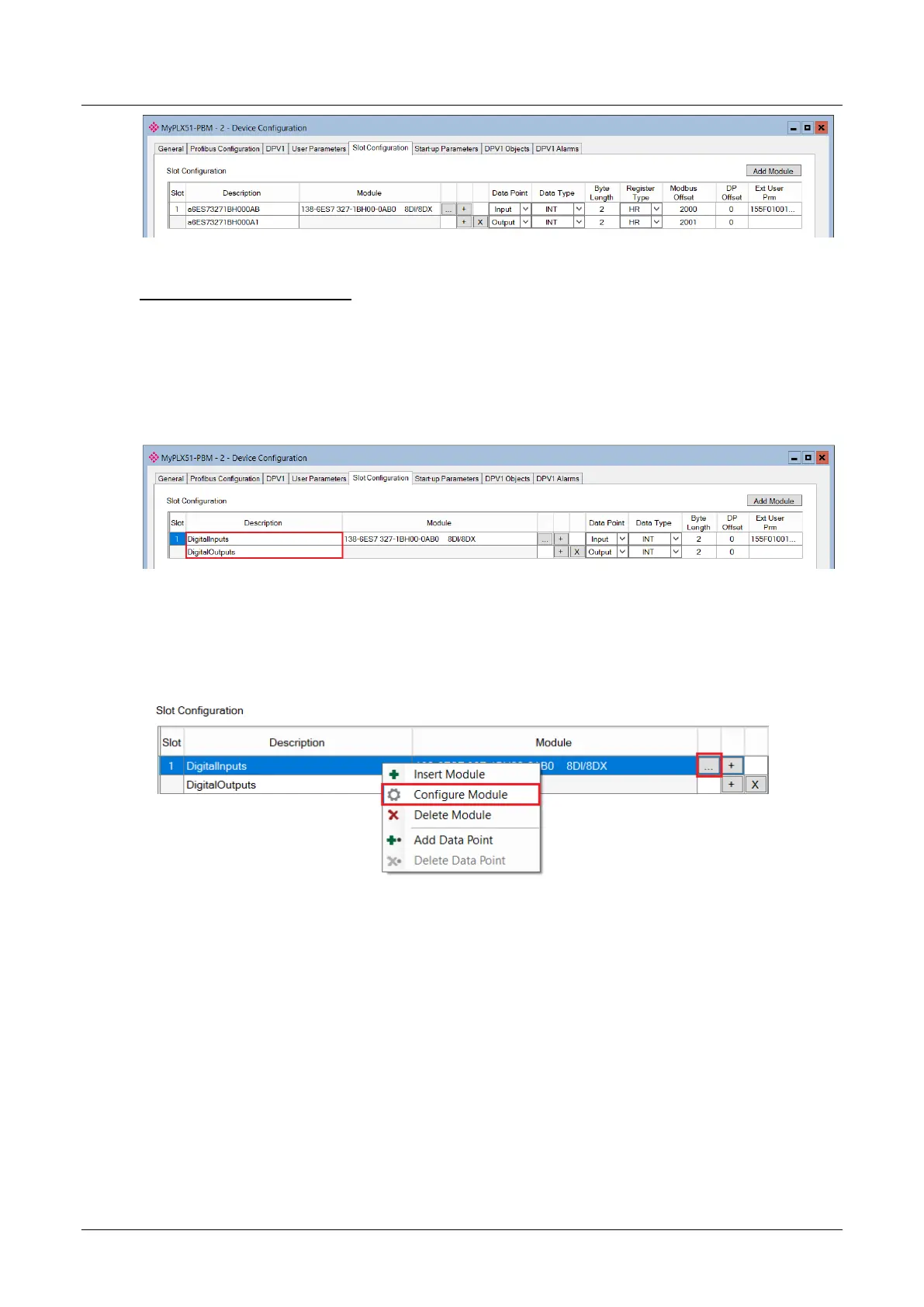

Figure 3.55 – Slot configuration – (Modbus)
Slot Configuration - General
Each module added can consist of one or more Data Points. In the example below
the module has two Data Points, one Input and one Output.
The description of each is based on the module name (from GSD file) but can be
edited by the user. When using Logix this Description is used to create the member
of the device-specific UDTs and thus no illegal Logix characters are permitted. It is
also important that these descriptions are unique within a device.
Figure 3.56 – Slot descriptions
Some modules provide module specific User Parameters to further configure the
module. These parameters can be accessed by either clicking on the Configure (…)
button or by right-clicking on the Module and selecting the Configure Module option
in the context menu.
Figure 3.57 – Access Module Specific User Parameters
