PLX51-PBM Setup
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 67 of 196
The module will be added to the Slot configuration. The layout of the slot
configuration differs slightly depending on whether Logix, Explicit EtherNet/IP, or
Modbus has been selected as the Primary Interface.

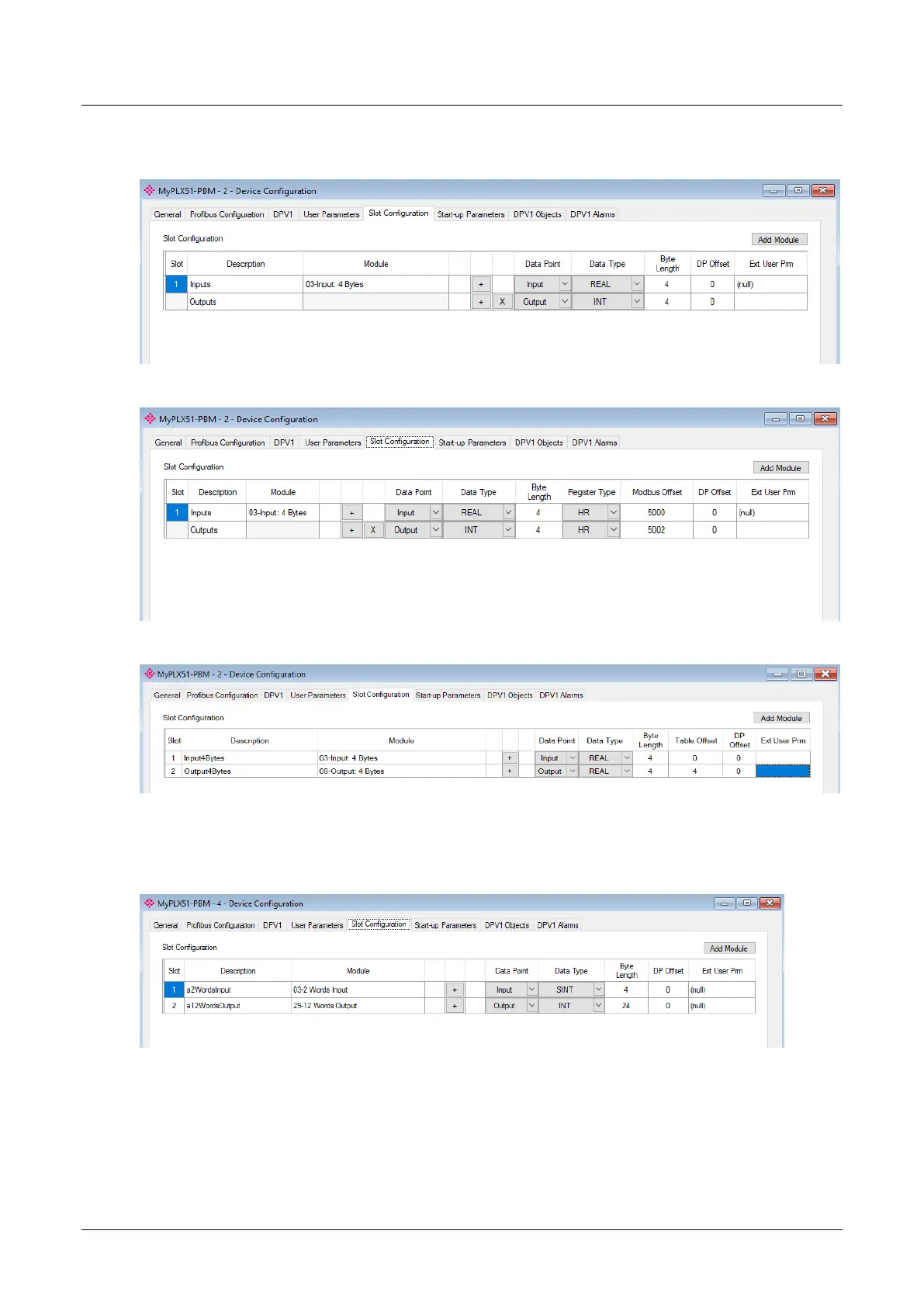

Figure 3.78 – Slot configuration – (Logix)
Figure 3.79 – Slot configuration – (Modbus)
Figure 3.80 – Slot configuration – (Explicit EtherNet/IP)
When the module is emulating the legacy device, the slot configuration for Logix,
Modbus, and Explicit EtherNet/IP will appear as follows:
Figure 3.81 – Slot configuration – (Logix) (legacy device)
