PLX51-PBM Setup
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 74 of 196
The Logix Tagname can be either entered manually or selected using the Logix Tag
Browser. The Tag Browser can be launched by clicking on the Browse button (…)
adjacent to the Tagname.
NOTE: The list of Logix tags will not be available if the Logix controller path has not been correctly
configured.

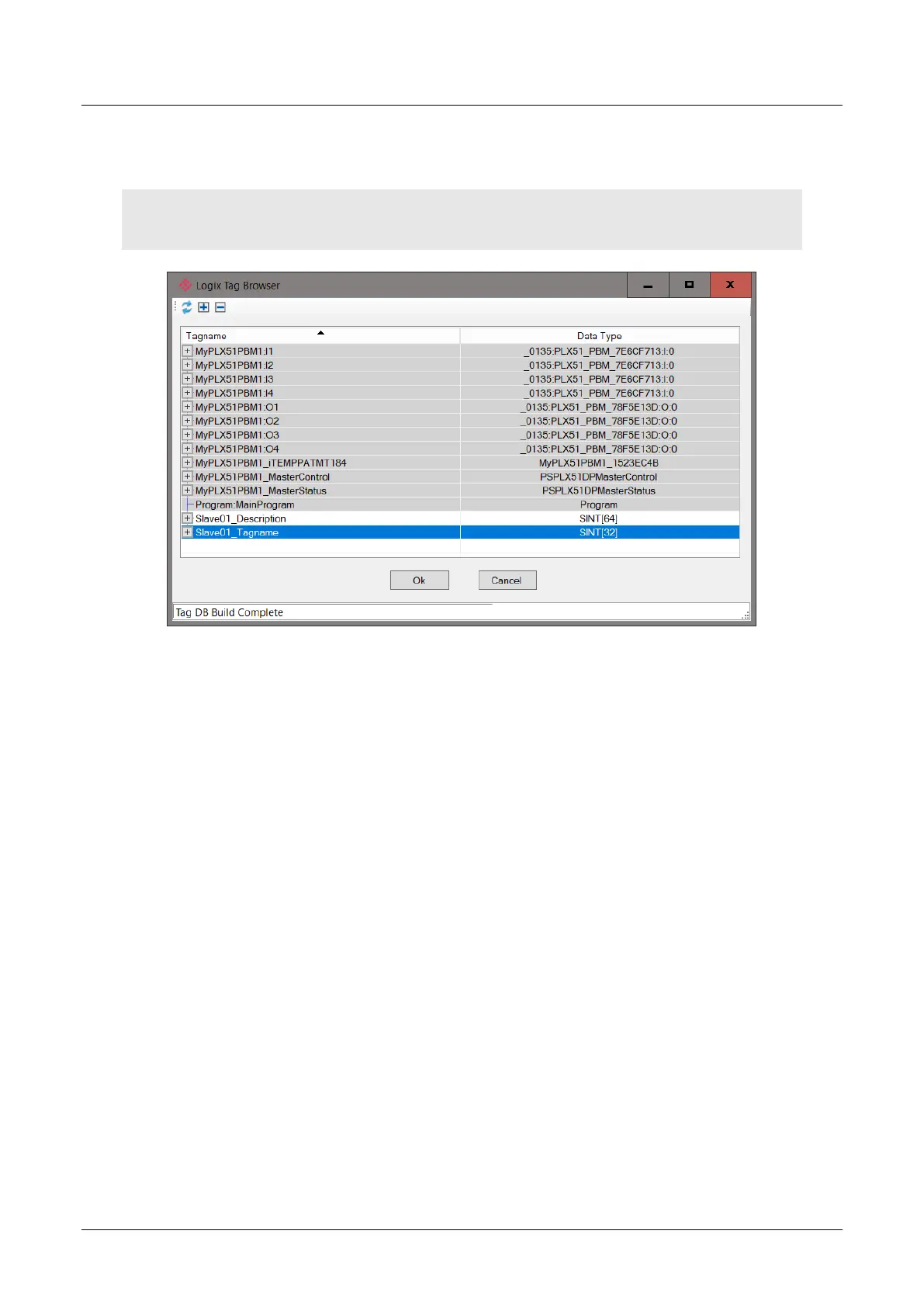

Figure 3.94 – Device DPV1 Objects Tag Browsing
