PLX51-PBM Setup
PROFIBUS DPV0/DPV1 Master or Slave to EtherNet/IP™ or Modbus® Gateway User Manual
ProSoft Technology, Inc. Page 93 of 196
4 Confirm the message was successfully sent by monitoring the MSGStatus tag.

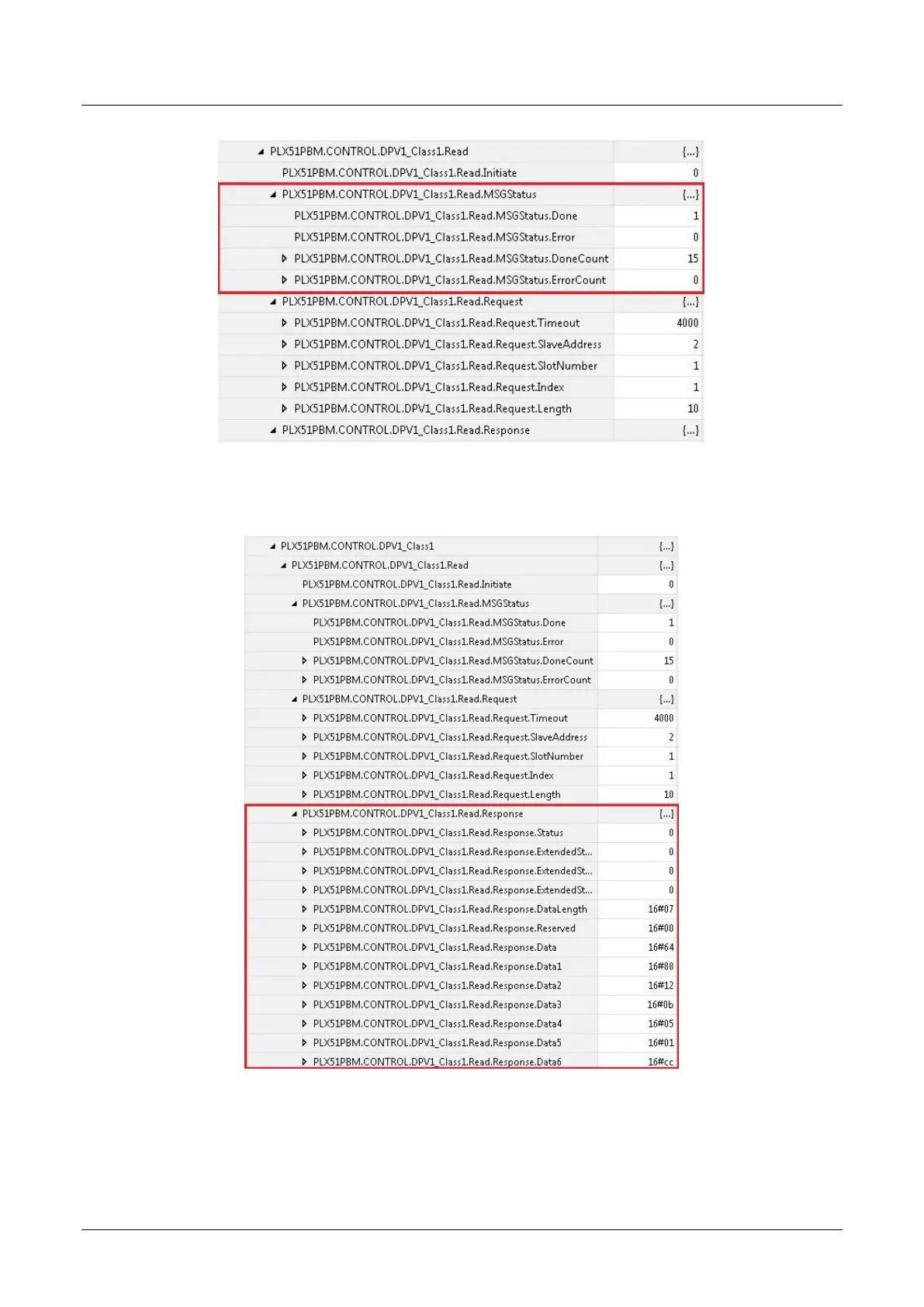

Figure 3.112 – DPV1 Class 1 Read Message Status
5 The slave’s response to the acyclic message function is shown in the Response
tags.
Figure 3.113 – DPV1 Class 1 Read Response
