Installing the Printer and the intelligent Paper Stacker
1-9
1.4.4 Mount the pendulum of the iPS 4050

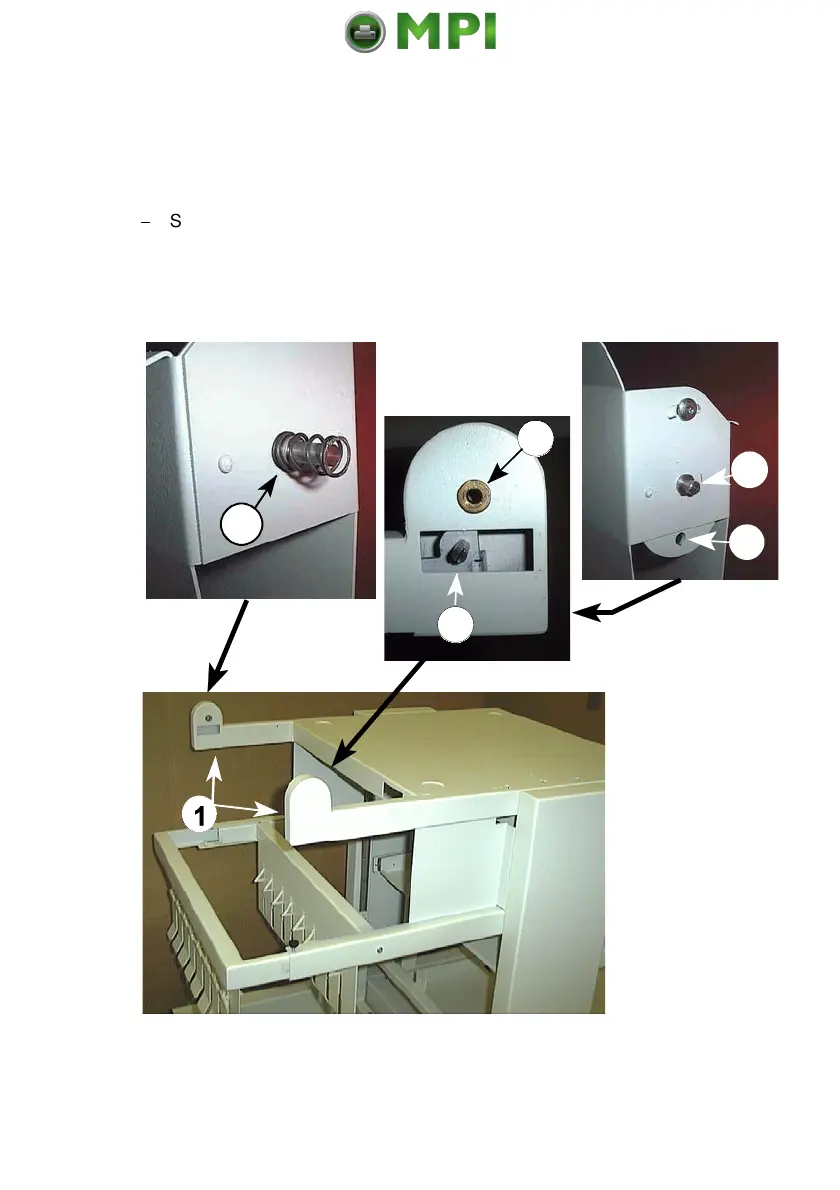

The printer must be put onto the iPS first before mounting the pendulum. The
pendulum is to be mounted vertic
ally between the bars (1).
$
Shift pendulum (2) into the left stacker bearing by compressing the spring
while simultaneously inserting the bolt (3) of the pendulum into the right
bearing (4). Take care that the pin (5) hits the hole (6).
