Qlogic 8100 Series

5–Installation in a VMware Environment
Configuring NIC Using the vSphere Client
FE0254601-00 A 5-13
3. Open the vSphere client, and then click the Configuration tab.
4. In the Hardware pane, select Networking, as shown in Figure 5-15.

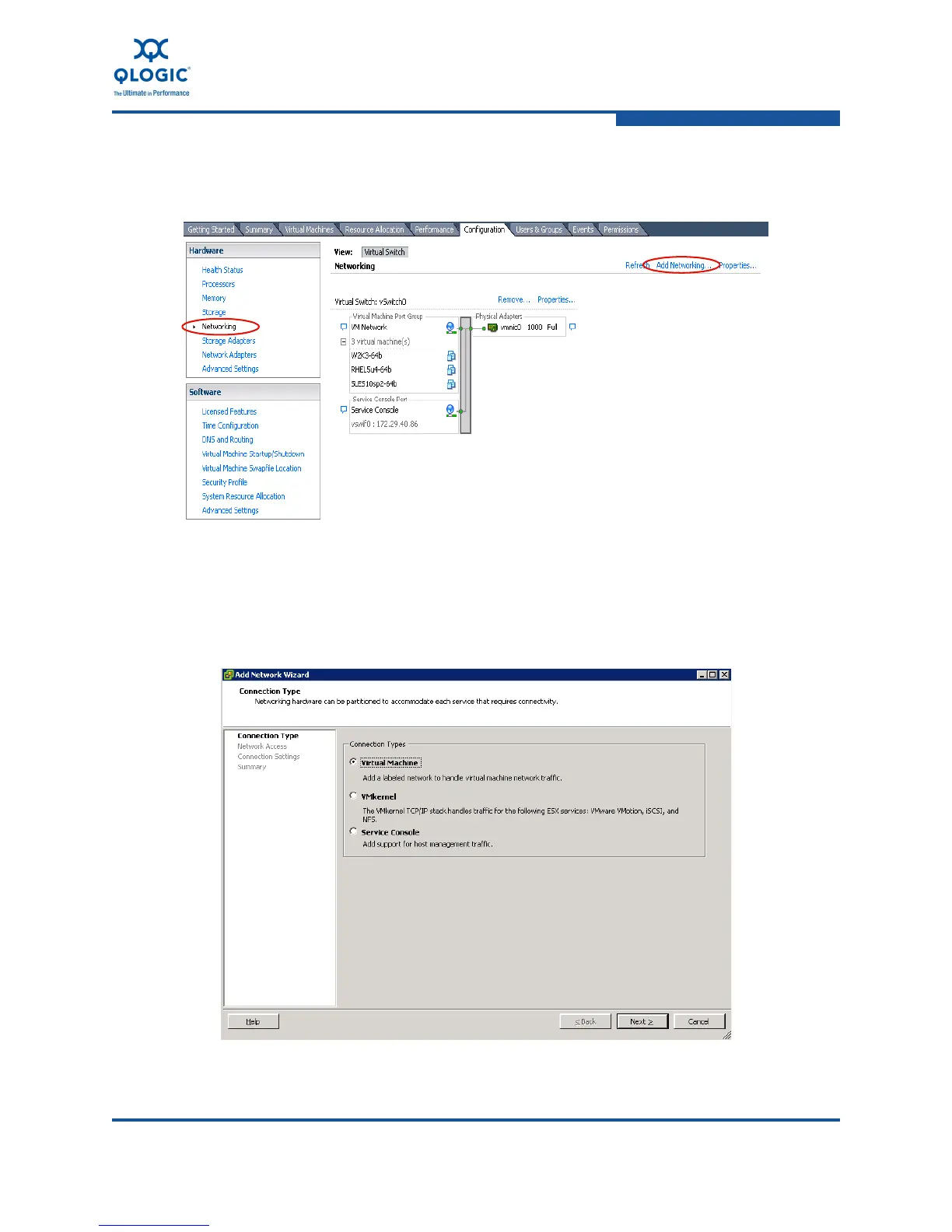

Figure 5-15. Configuring Networking Adapters
5. Select Add Networking . . in the upper right portion of the window.
6. In the Add Network Wizard, click Virtual Machine, and then click Next
(Figure 5-16).
Figure 5-16. Add a Labeled Network
