Qlogic 8100 Series User Manual

1–Product Overview
Hardware Components
FE0254601-00 A 1-5

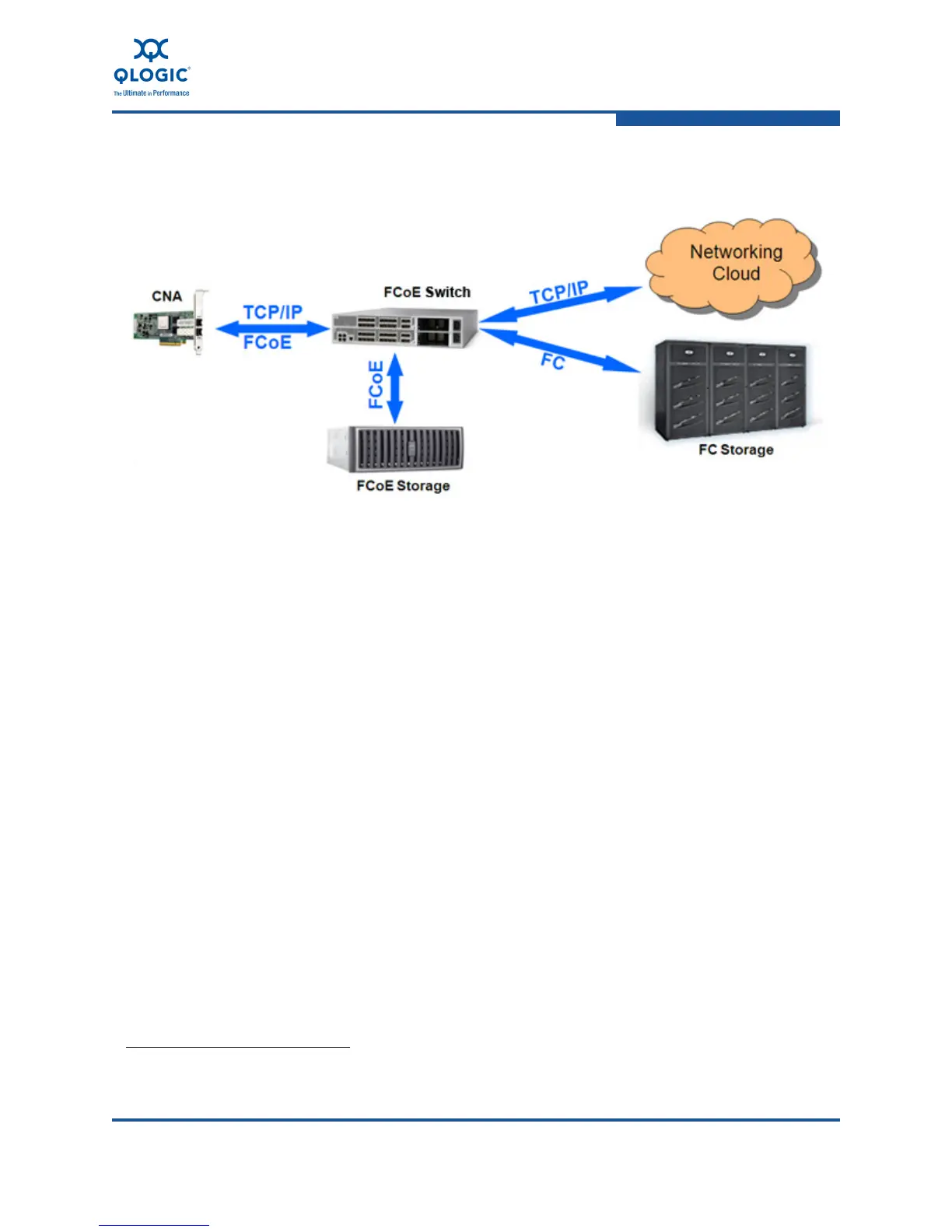

In Figure 1-3, the FCoE adapter communicates to existing native Fibre Channel
storage because of the translation capability of the switch.
Figure 1-3. FCoE Deployment
Hardware Components
A typical 8100 Series Adapter has the following major components
1
:
 ASIC (reduced instruction set computer (RISC) processor)
 Nonvolatile memory (Flash)
 NVRAM
 Transceivers (SFP+)
 LEDs
1
Some adapters may have additional components not shown in this list.
