Qlogic 8100 Series

5–Installation in a VMware Environment
Deploying NPIV for VMware ESX/ESXi 4.0
FE0254601-00 A 5-33
12. Select the Options tab in the Virtual Machine Properties window.
13. Select Fibre Channel NPIV in the left pane, click Generate new WWNs, and
then click Finish (Figure 5-44).

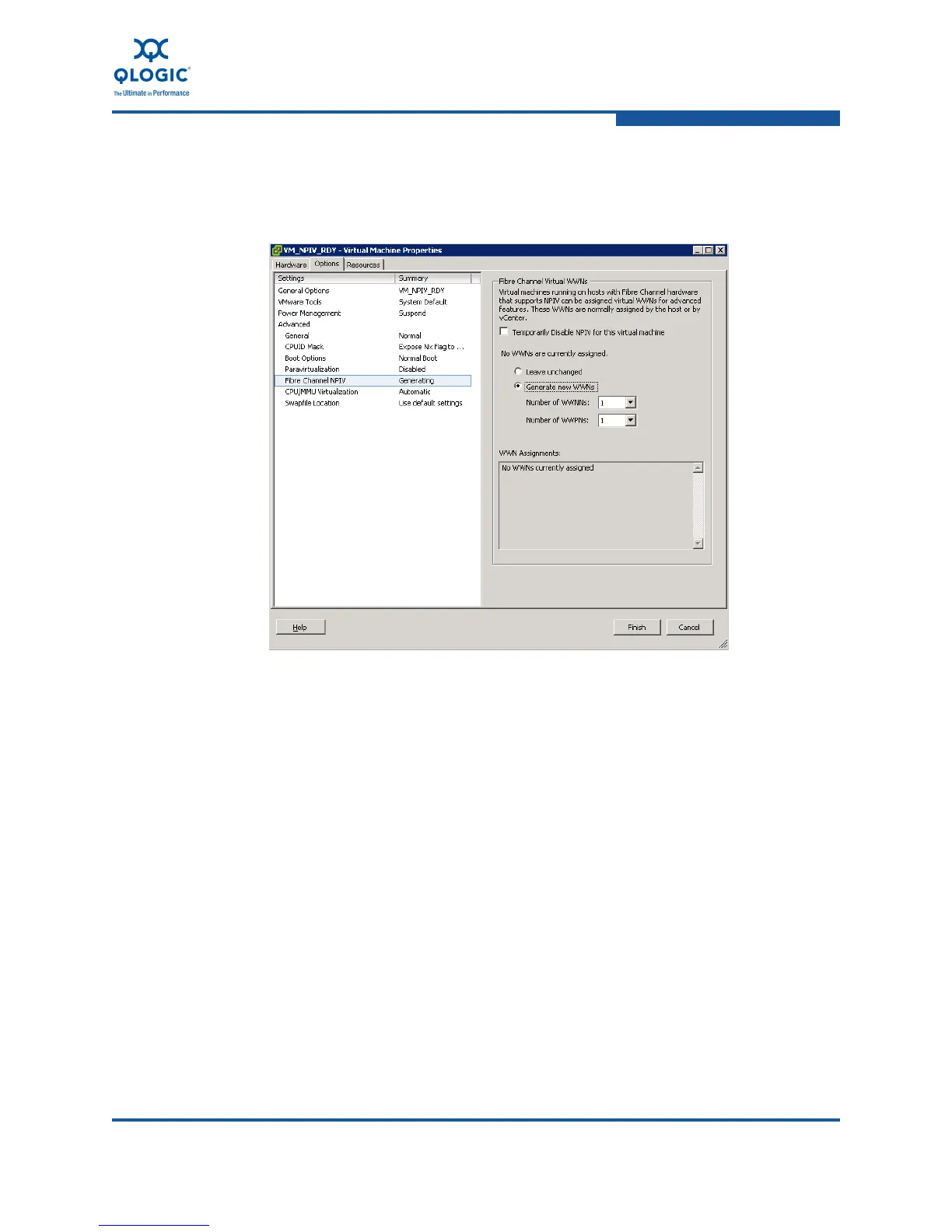

Figure 5-44. Virtual Machine Properties—Generate New WWNs
14. To confirm that the WWNs were generated for the port:
a. Select the Getting Started tab, and then click Edit virtual machine
settings.
b. In the Virtual Machine Properties window, select the Options tab, and
then select Fibre Channel NPIV.
