Setting Up the Bac
k P
anel
Setup
10
CubiScan 110
6.
Insert the plug on each length se
nsor cable into its sock
et on the
back (at each end) of the CubiScan (see Figure
6).

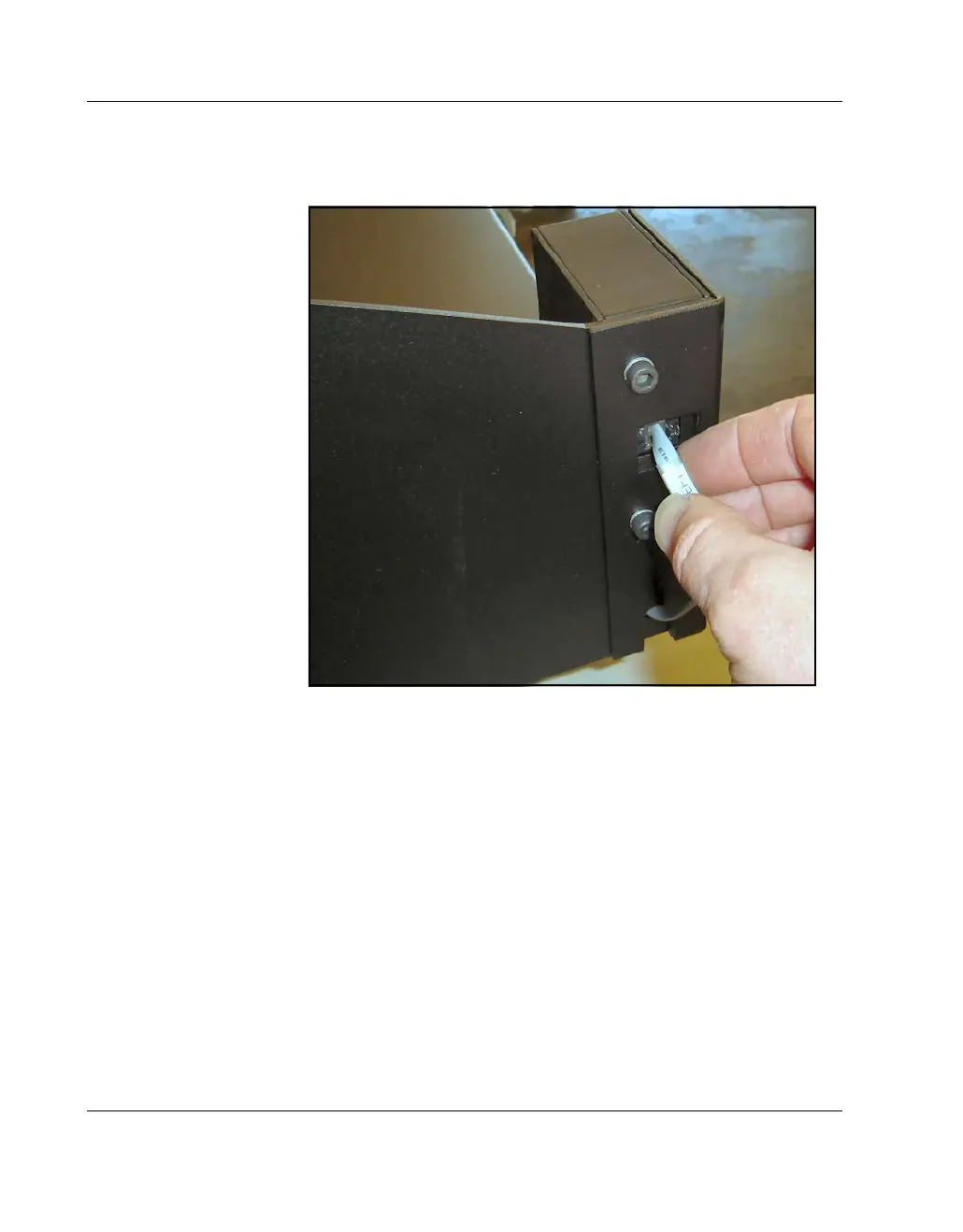

Figure 6
Plugging in the Length Sensor Cable
17
19
Table of Contents
default chapter
5
Table of Contents
5
Chapter 1 Product Description
9
Figure 1 Cubiscan 110
10
Specifications
11
Chapter 2 Setup
13
Unpacking
13
Figure 2 Cubiscan 110 in Packing Crate
14
Figure 3 Removing Wood Packing Bar
14
Setting up the Back Panel
16
Figure 4 Removing the Back Cap Screws
16
Figure 5 Loosening the Hinge Cap Screws
17
Figure 6 Plugging in the Length Sensor Cable
18
Adjusting the Shipping Bolts
19
Figure 7 Plugging in the Height Sensor Cable
19
Figure 8 Adjusting the Shipping Bolts
20
Placement and Leveling
21
Figure 9 Bubble Level
21
Connecting to a Computer or Network
22
Connecting to a Computer (Optional)
22
Connecting to a Network (Optional)
23
Figure 10 Ethernet Cable Connector
24
Connecting Power
25
Turning on the Cubiscan
25
Installing Qbit (Optional)
26
Setup Checklist
27
Chapter 3 Operation
29
Before You Begin
29
Cubing and Weighing Using Qbit
30
Cubing and Weighing Using the Control Panel
30
Figure 11 Cubiscan 110 Control Panel
31
Measuring Odd-Shaped Packages
33
Chapter 4 Calibration
35
Before You Begin
35
Calibrating Using the Control Panel
36
Preparing the Cubiscan for Calibration
37
Figure 12 Controller DIP Switch
38
Calibrating the Sensors
39
Figure 13 Calibration Block Placement for Right Length Sensor
40
Figure 14 Calibration Block Placement for Left Length Sensor
41
Figure 15 Calibration Block Placement for Width Sensor
42
Figure 16 Calibration Block Placement for Height Sensor
43
Calibrating the Scale
44
Preparing for Operation
45
Maintenance
47
Precautions
47
Cleaning the Sensors
47
Removing the Controller Box
48
Figure 17 Removing the Controller Box
49
Troubleshooting
51
No Response When You Turn Power on
52
Readings Are Not Accurate
52
Computer Error Messages
53
Control Panel Error Messages
54
Timeout Error 01
54
Length, Width, Height
54
Weight
55
Other Error Codes
55
Appendix A Communications Protocol
57
Serial (RS-232-C) Cable Pin Assignments
57
Ethernet (TCP/IP) Cable Pin Assignments
58
Cubiscan 110 Command Set
59
Continuous Measure
60
Dimension Calibration
62
Dimension Units
63
Factor Toggle
64
Location ID/City Code
65
Measure
66
Scale Calibration
68
Test
69
Units
70
Values
72
Weight Units
75
Zero
76
TCP/IP Communications Setup Command Set
77
Set Port
77
Read Port
78
Set IP Address
79
Read IP Address
81
Set Subnet Mask
82
Read Subnet Address
83
Set Gateway Address
84
Read Gateway Address
85
Set Inactivity Timeout
86
Read Inactivity Timeout
88
4
Based on 1 rating
Ask a question
Give review
