Calibrating Using the Control Panel Calibration
32 CubiScan 110
6. Press <msr>. The LENGTH window displays 12.0.
7. Slide the calibration block to the other side so that the end is
against the right length sensor, as shown below.

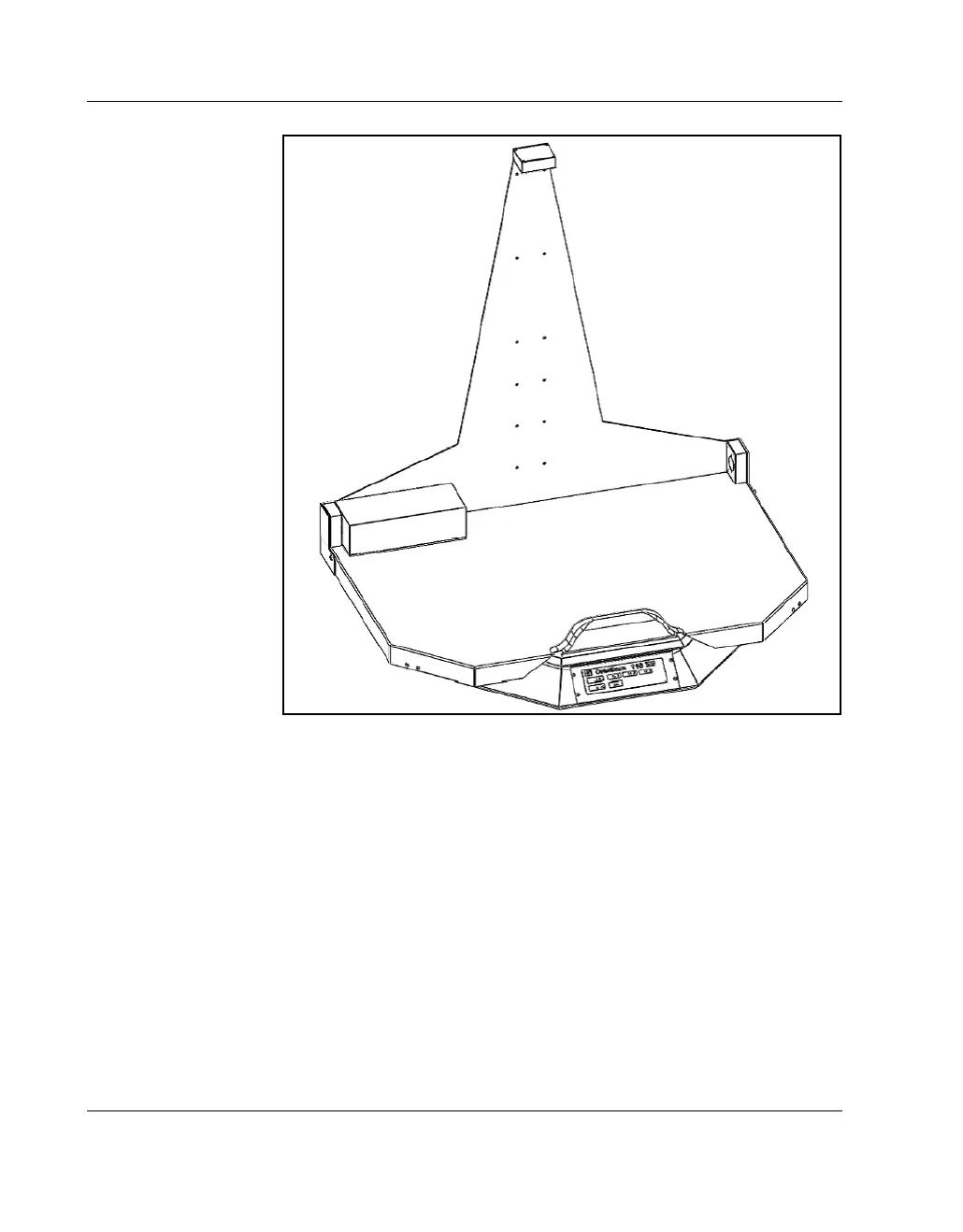

Figure 13
Calibration Block Placement for Right Length Sensor
