Calibrating Using the Control Panel Calibration

34 CubiScan 110

10. Press <msr>. The HEIGHT window displays 12.0.

11. Turn the calibration block up so that it is standing on its end in

the center with the 12" side against the back panel, as shown

below.

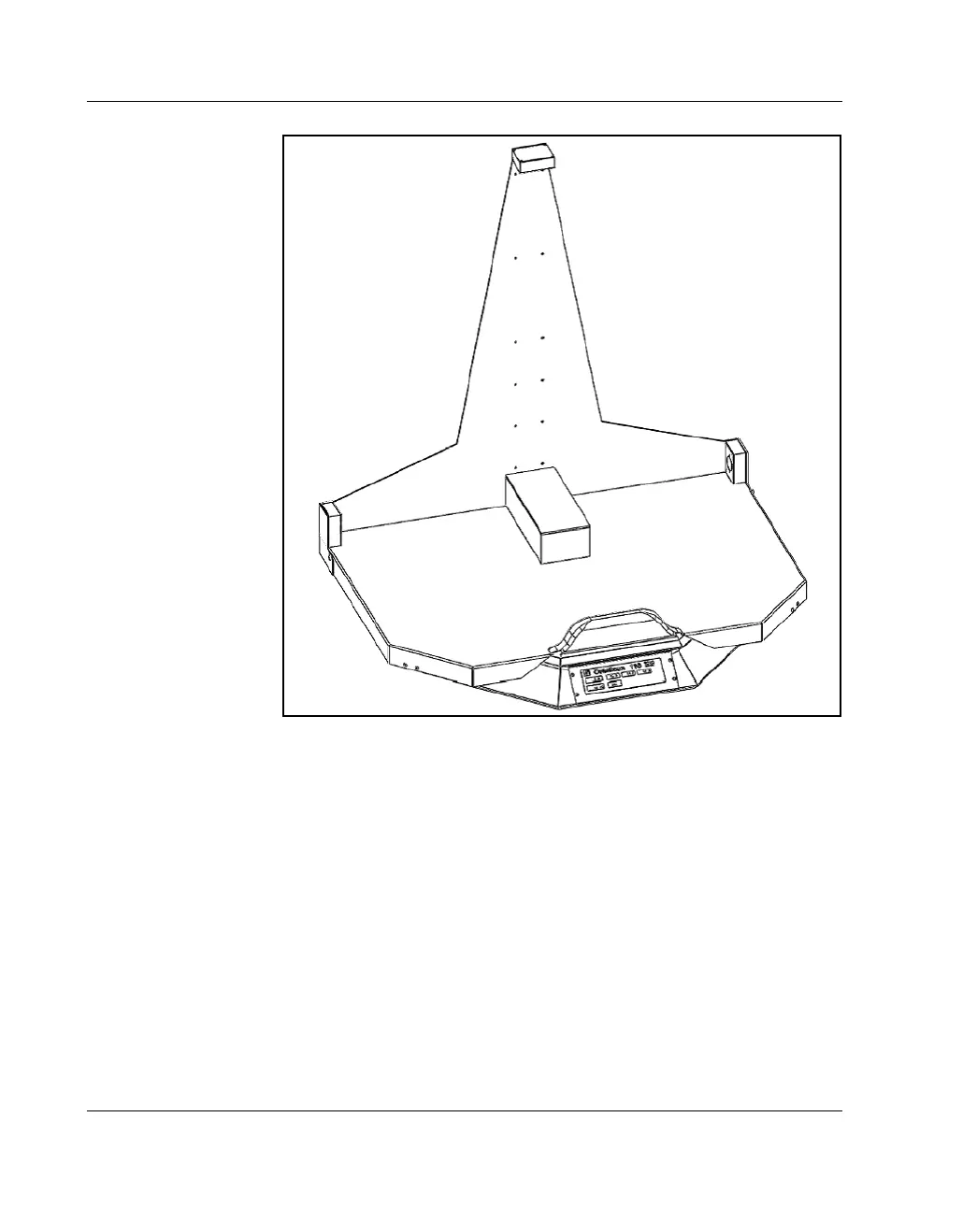

Figure 15

Calibration Block Placement for Width Sensor
