Trinity F90+ user manual
1. Turn on the transmitter.
2. Connect the battery pack to the main body of the UAV and power the UAV. The payload compartment must be attached
to the main body of the UAV.
3. Ensure that the link between the UAV and the transmitter is established.

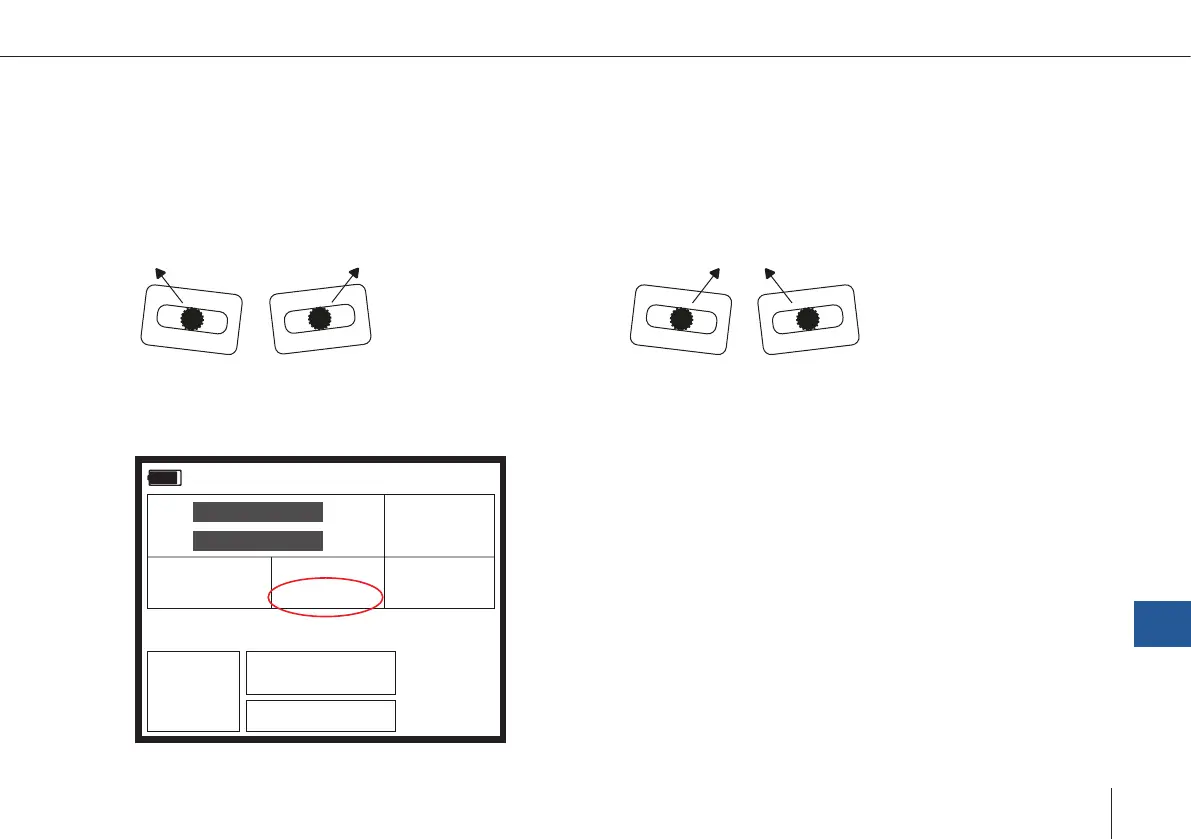

4. Simultaneously move the sticks to the following position.
If the stick conguration was
changed move the sticks to
the following position:
Up left
Left Stick
up right
Right Stick
Up right
Left Stick
Up left
Right Stick
5. When the calibration mode is started the message CALIB. MAG. is shown on the transmitter.
6. During the calibration, 200 measuring points are recorded. Move the main body as described below. The counter on
the display of the transmitter counts up until 200.
ABORT
EMERGENCY
CALIB MAG
T.BAT
MIS:
BAT:
ALT: 0m
DST: 0m
HDG: 0 °
WP: 62/200
AS: 0.0 m/s
Pics: 0
GS: 0.0 m/s
SATs: 0
0%
90%
100
25.0 V
100%
