4.6.2.4 PROBLEM: Table stops before zero position.

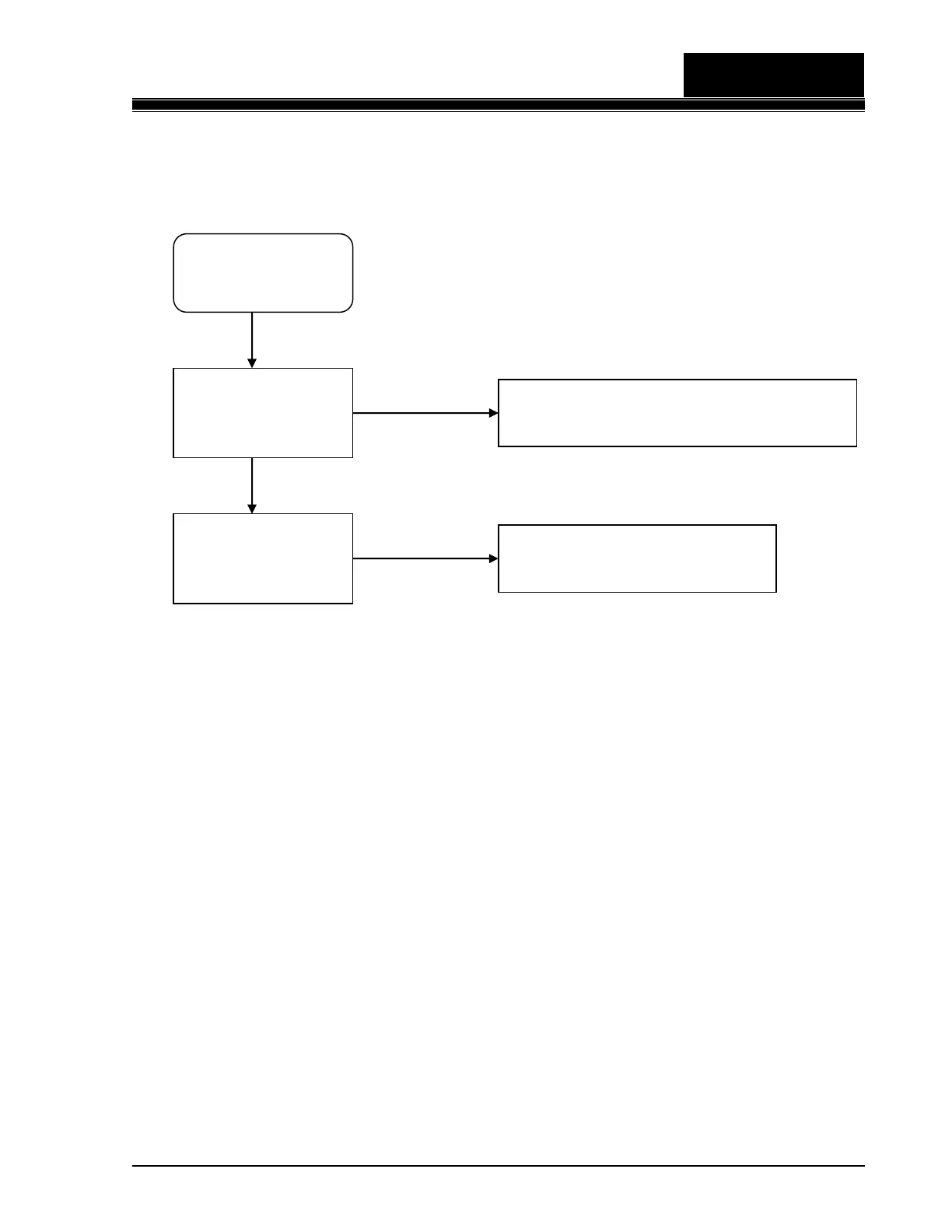

Figure 4.6-4
START
NO
Home disk
sensor light
ON?
Readjust home disk for correct
home position.
YES
Counts at zero
but table not at
home position?
Replace table drive motor
encoder.
YES
