QubicaAMF XLi EDGE Series User Manual

XLi EDGE QubicaAMF Pinspotter
Section 3 Page 3-2 Rev. Date: 10/2016
4. Pin Elevator
The pin elevator (Edge Performance Lift)
carries the pins from the pit area to the
distributor. (Figure 3-3)
5. Distributor
The distributor (Figure 3-4) delivers
the pins from the pin elevator to the
bin. The distributor runs
continuously and is driven by the
back end motor.
6. Ball Lift
The ball lift (Figure 3-5) lifts the ball
high enough to permit gravity to
return the ball to the bowler. The
ball lift is mounted between the odd
and even pinspotters on a pair of
lanes.

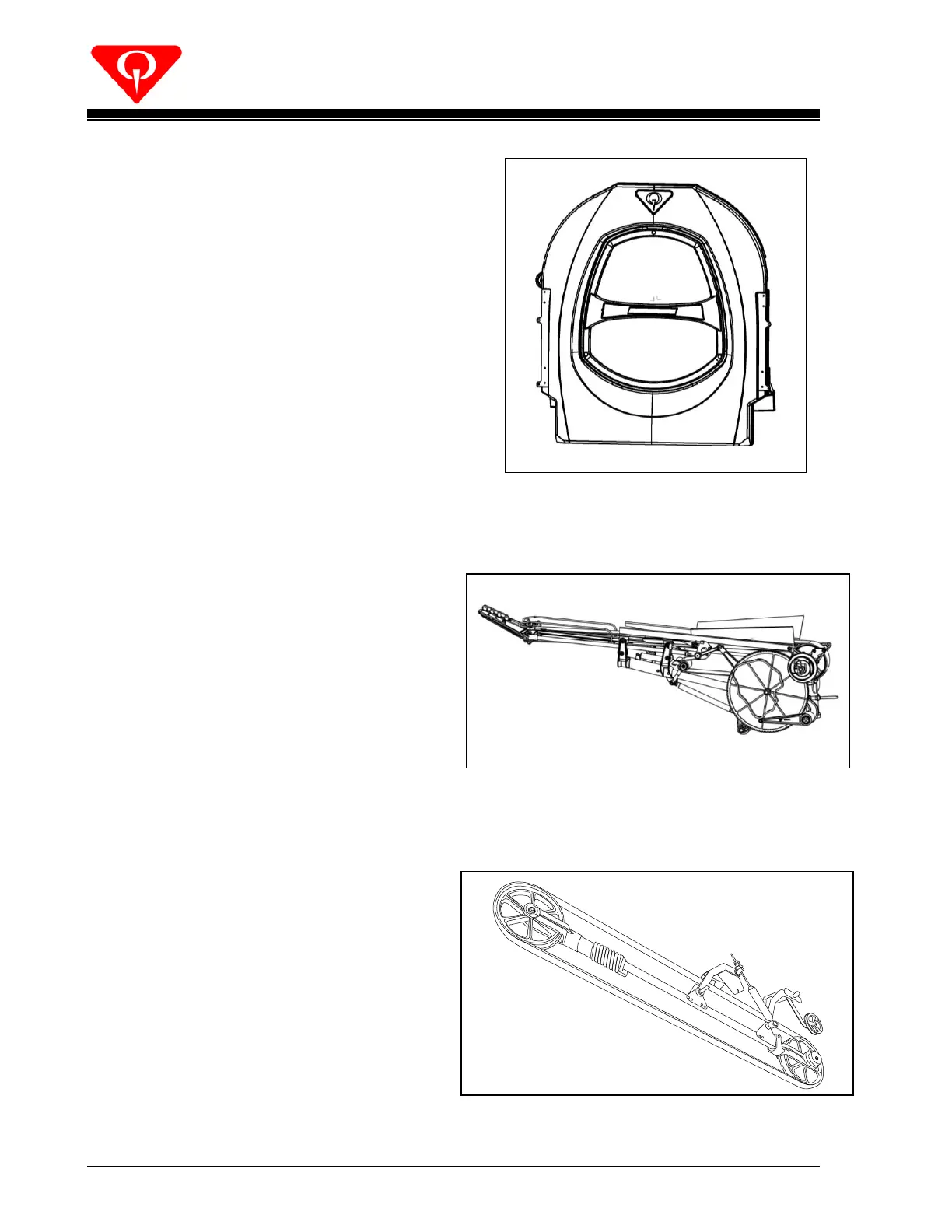

Figure 3-5, Ball Lift
P
B
L
Figure 3-3, EDGE Performance Lift
Figure 3-4, Distributor
