QubicaAMF XLi EDGE Series User Manual

Section 4.2
Machine Adjustments
400-088-120-02 4.2-19 Rev. Date: 10/2016

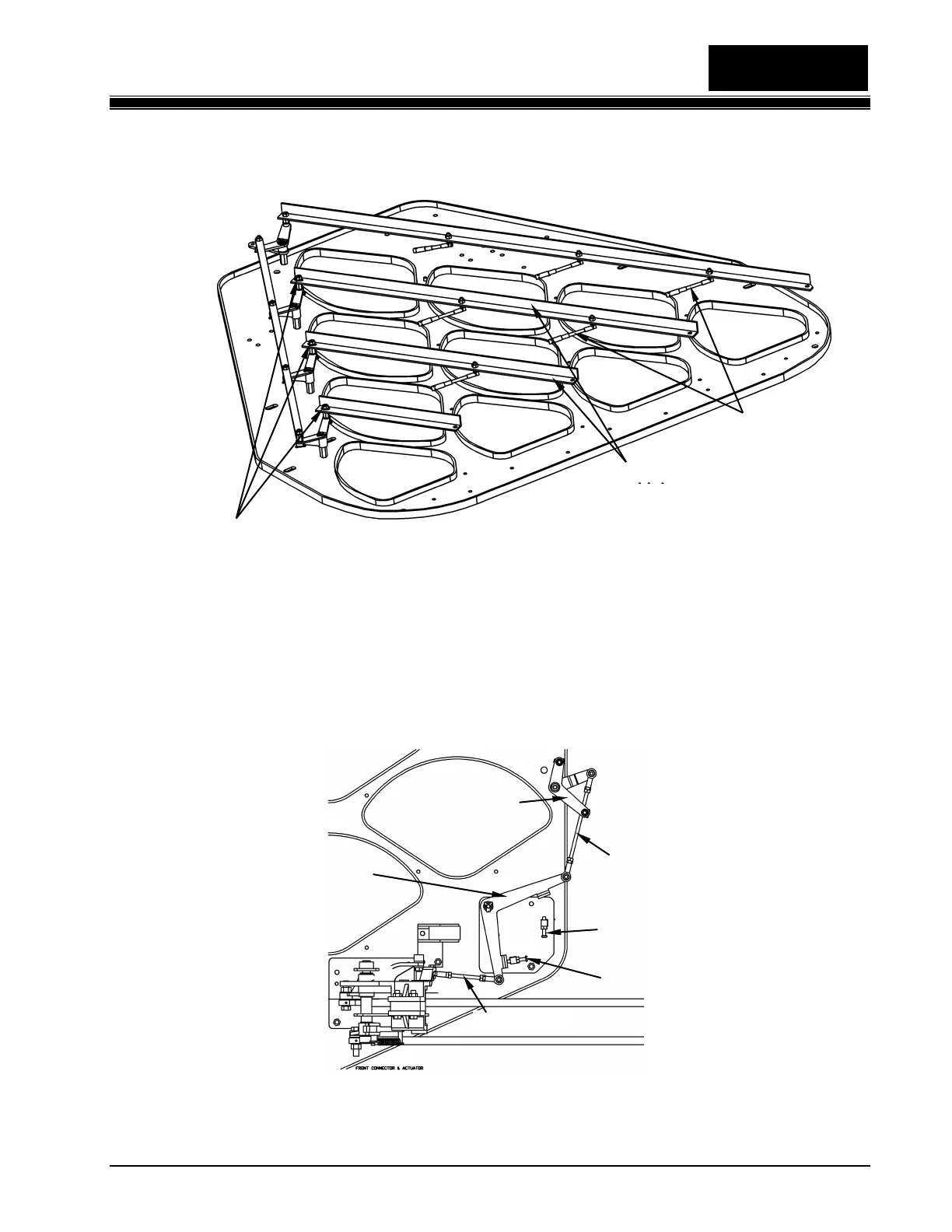

Open Position
Actuator Stop Screw
Long Rod, 8-1/8”
Front Actuator Lever
Closed Position
Actuator Stop Screw
Front Connector
Assembly
Short Rod
Figure 4.2-20
4. Loosen the two actuator stop screws (see Figure 4.2-21).
5. Set the length of the long rod on the front actuator assembly to 8-1/8 inches (206 mm) from
center to center between the openings at each end.
Figure 4.2-21
Body Links
Connecting
Links
Slotted End of #8, #9, &
#10 Connecting Links
