Radwin 2000 C PLUS - Figure 10-1 Interference; Figure 10-2 Collocated Units; Figure 10-3 Collocated Units

RADWIN2000CPlusUserManual Release3.5.70 10‐2
WhatisHubSiteSynchronization? Chapter10

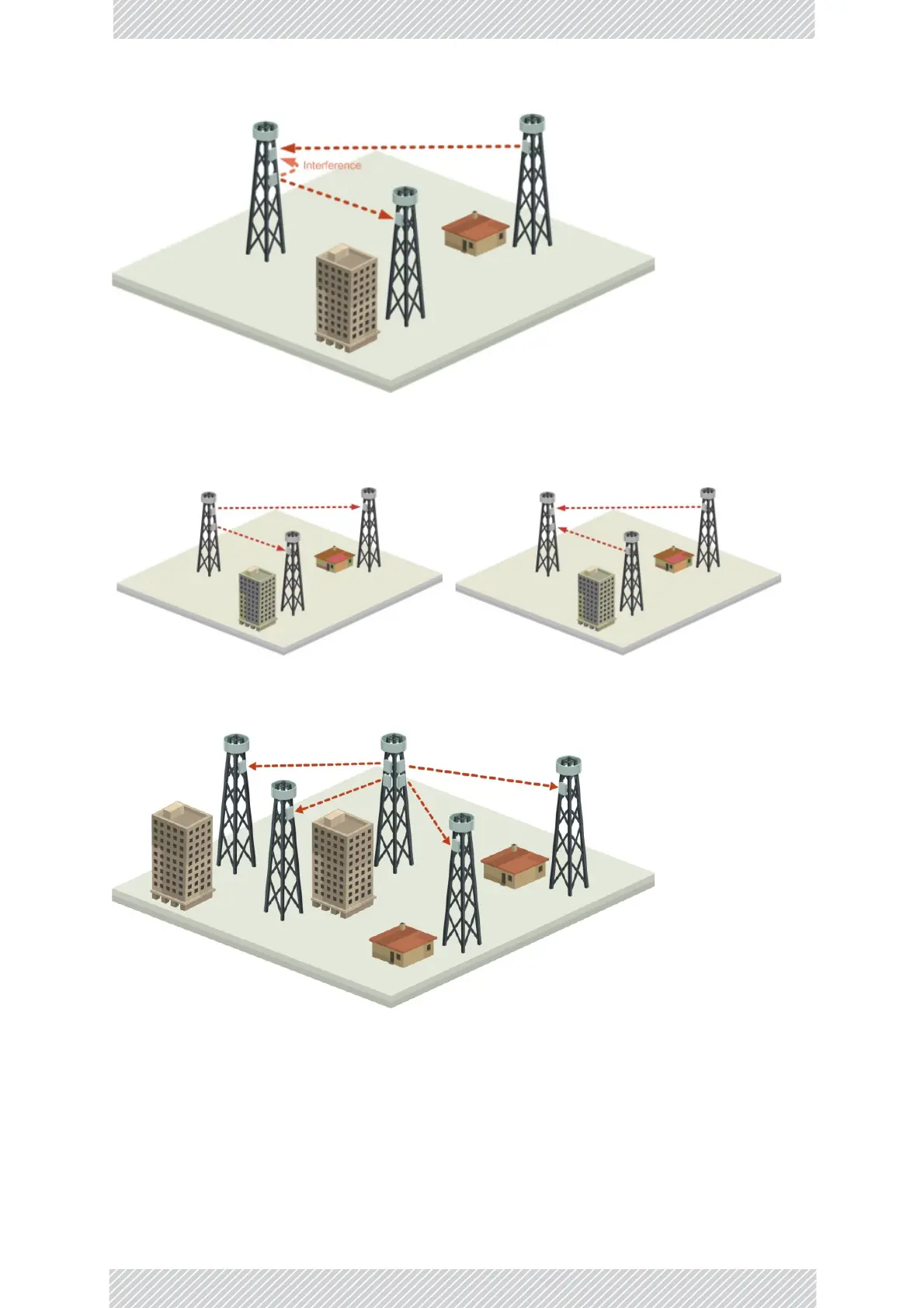

Figure10‐1:Interferencecausedbycollocatedunits
AddingHSSremovesinterferenceasshowninthenexttwofigures:
Figure10‐2:CollocatedunitsusingHubSiteSynchronization(1)
Figure10‐3:CollocatedunitsusingHubSiteSynchronization(2)
TheunitsareconnectedtoeachotherwithHSScablesandHSSDistributionUnits.
OneoftheradiosinthesiteisdefinedasHSSMasterandgenerate ssynchronizationpulses.
Theothercollocatedradiosinthesite‐theHSSClients,areconnectedtotheHSSMasterand
synchronizetheirtransmissiontothepulses.AnHSSClientcanbeconfiguredtoworkinone
oftwomodes:
