RADWIN2000CPlusUserManual Release3.5.70 11‐4
GSUKitContents Chapter11
IfthePrimaryGSUfails,andthentheSecondaryGSUalsofailstoreceivesyncsignalsfromits
GPS,thenitmovestoself‐generationHSMmodelikeanordinaryHSMODUuntilitsGPS
recovers.

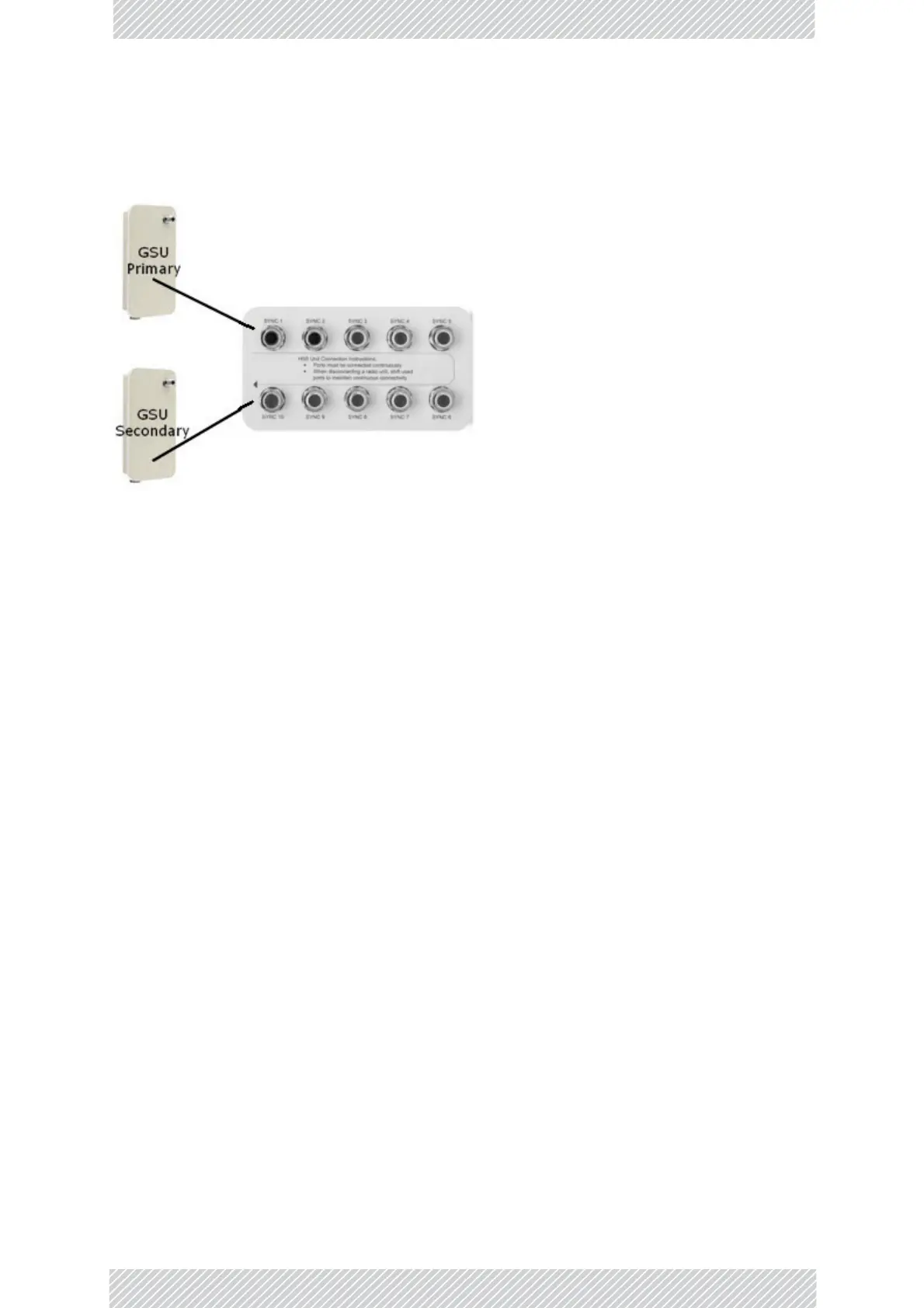

Figure11‐4:MaketheGSUsthefirsttwocollocatedunits
RedundancyswitchingiscompletelytransparenttotheGSU‐managedlinks.
GSUKitContents
TheGSUpackageincludes:
• 1xGSU
• 1xMountingKit
• 1xGPSAntenna
• 1xGPSAntennaMountingKit
• 1xRFCable,1.5m
• CD
