Radwin 2000 C PLUS - Figure 4-23 Protecting the Unit Joints with Vinyl Tape; Figure 4-24 Mounted and Strapped to the Pole

RADWIN2000CPlusUserManual Release3.5.70 4‐21
InstallingaLink Chapter4

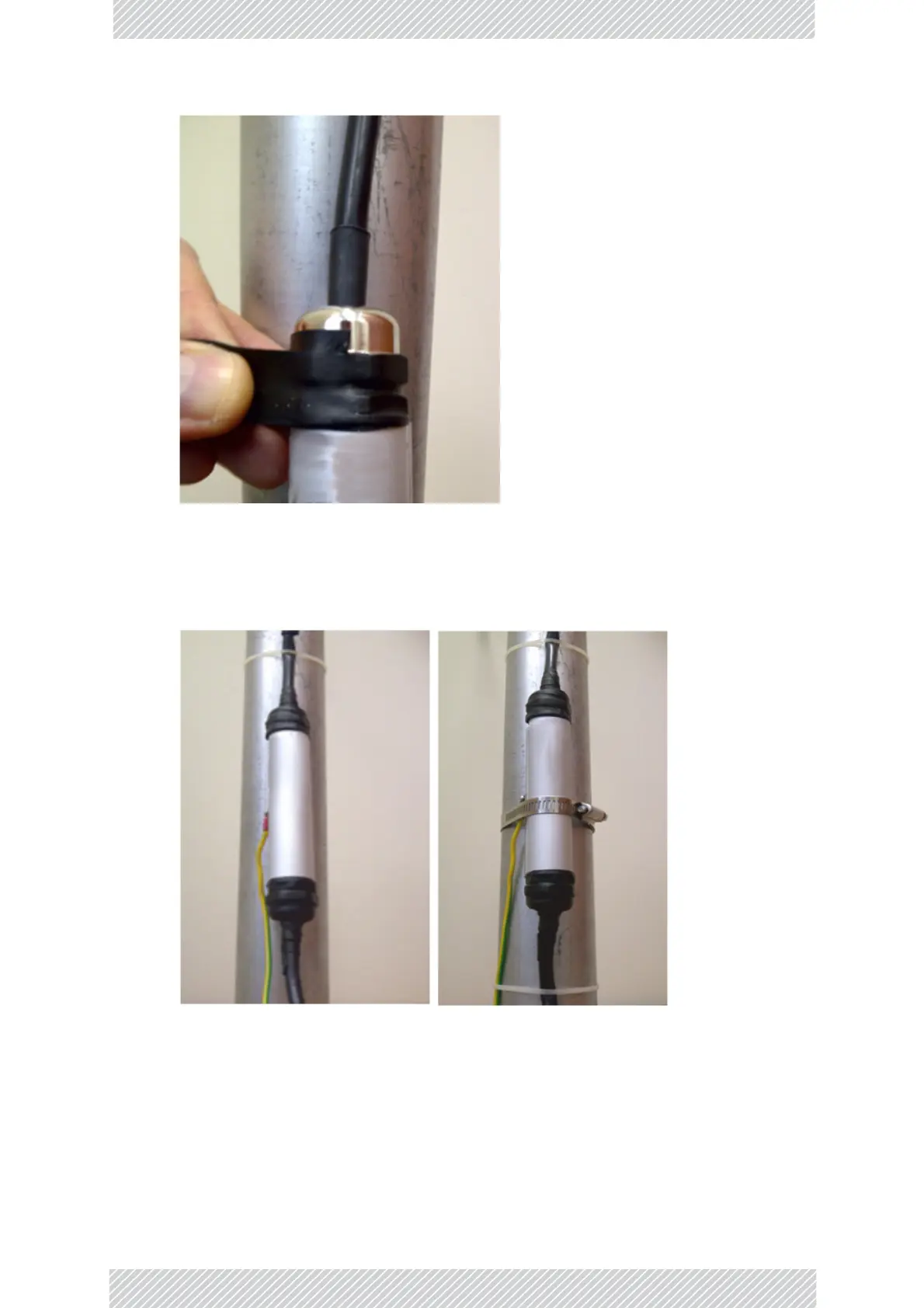

Figure4‐23:Protectingtheunitjointswithvinyltape
6.MounttheunitonthepoleusingthemountingringasshowninFigure 4‐24.Ground
theunitusingtheGNDscrew.Forlightningprotection,repeatthesameprocedureto
installthesecondunitconnectedtotheIDU.

Figure4‐24:Mountedandstrappedtothepole
ExternalPortsforCAT‐5eCables
AllexternalODUportsshouldbewatersealed.Usethesamematerialsandmethodasforthe
LPUcableglands.
