RADWIN2000CPlusUserManual Release3.5.70 4‐20
InstallingaLink Chapter4

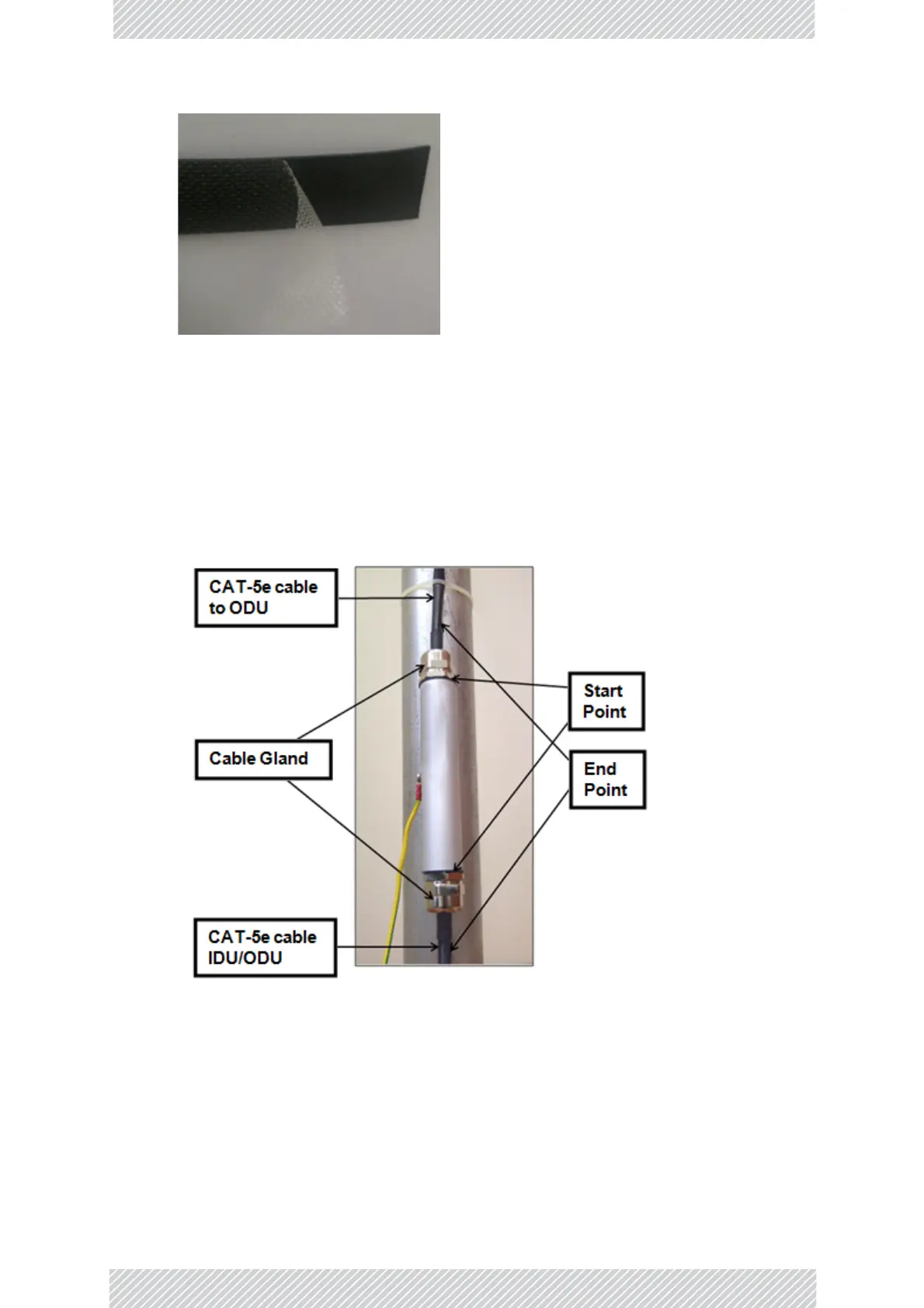

Figure4‐21:Exposingthetackysideofthesealingtape
3.AfterconnectingtheshortCAT‐5eIDU/ODUcable(providedinthebox)fromthe
ODUtotheunit,tightenthecableglandcapfirmlyandusetheinsulationtape
scotch23tofullycoverbothofthecableglands.
4.ConnectthetapewithtackysideuponthecableglandcapandtheCAT‐5ecable.
StartatStartPointatthebottomofthecableglandasshowninFigure 4‐22.Finish
atEndPointoftheCAT‐5ecable,2.5cmaftertheendoftheshrinktubing.Stretch
thetapeandapplyhalf‐overlappedtoformgap‐freejoint.
Figure4‐22:StartandEndpointsforprotective‐tapingtheunit
5.Wraptwolayersofanyscotchvinylplasticelectricaltype(e.gScotchSuper88Vinyl
PlasticTapefrom3M)toprotectthejointsasshowninFigure 4‐23.Ensurethatthe
bottomofthecableglandandtheendoftheCAT‐5ecablearecoveredwiththe
sealingsplicingtapeandwithvinylplastictape.
