Radwin 2000 C PLUS User Manual

RADWIN2000CPlusUserManual Release3.5.70 4‐4
IDU‐Haggregationunit Chapter4

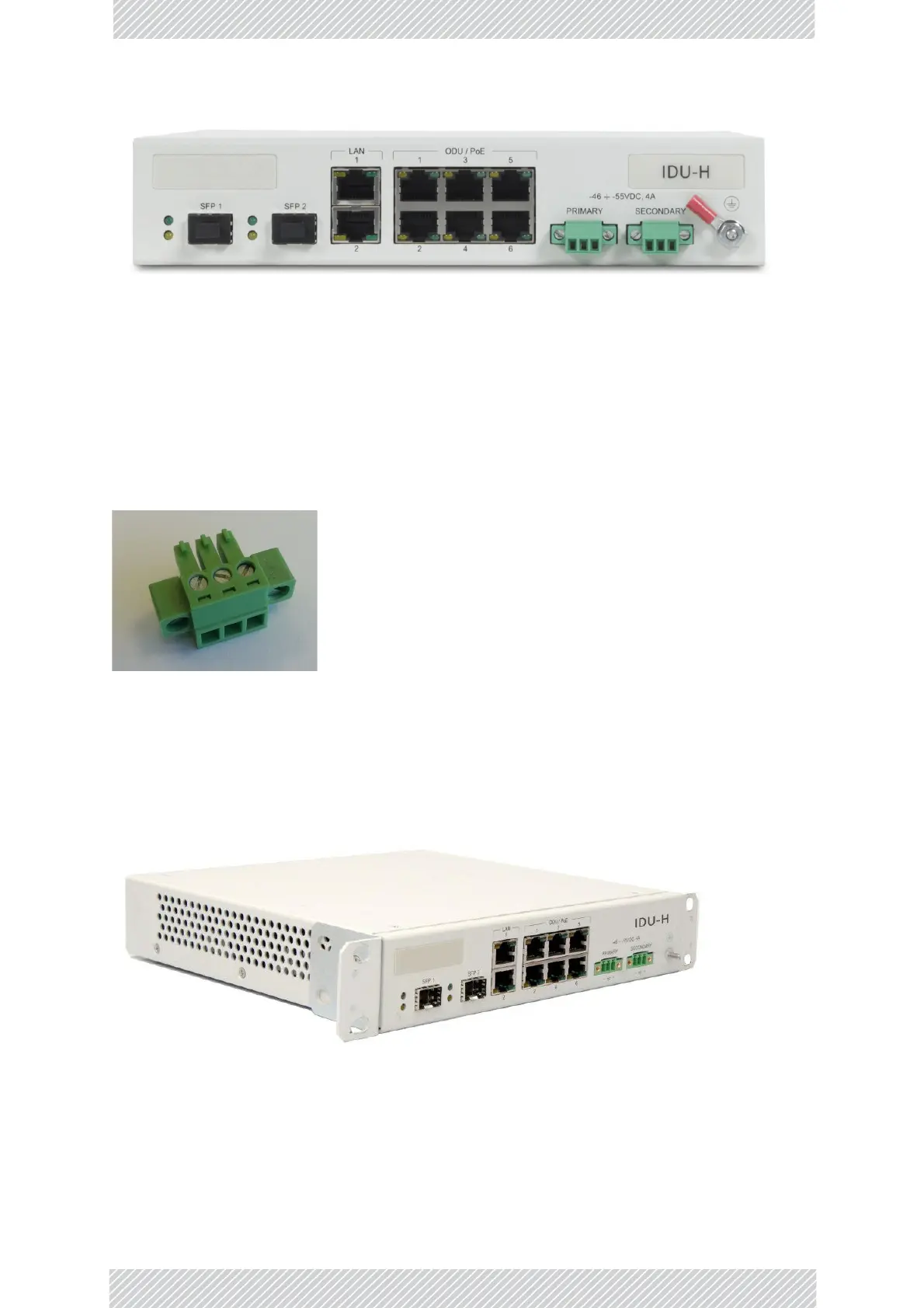

Figure4‐3:IDU‐H
TheIDU‐Hpackagecontains:
• OneIDU‐H
• Oneshortmountingear
• Onelongmountingear
• Onedualconnectortojointwounitsmountedsidebyside
• TwoDCpowerplugsforpowercables‐seeFigure 4‐4below
Figure4‐4:DCthreepinpowerplug
Thepowerconnectorsare3pininlinefemale,withpolarities(lefttoright)minus,ground,
plus.Ifrequired,anAC/DCpoweradaptershouldbeorderedseparately,dependingonyour
region.
TheIDU‐Hmaybeinstalledinsingleordoubleconfigurations:
Figure4‐5:IDU‐Hfrontview‐singleconfiguration
