Radwin 2000 C PLUS User Manual

RADWIN2000CPlusUserManual Release3.5.70 4‐3
PoweroverEthernet(PoE)Devices Chapter4
• TwoODUmountingkits
• ACDcontaining‐
• TheRADWINManagersoftware
• QuickStartGuide
• ThisUserManual
• LinkBudgetCalculator
• ForeachODU,aself‐adhesivelabelwiththeMACaddressandalternativeCommunity
string.Keeptheselabelsinasafeplaceforfuturereference.
• Cableglands(tobeusedwiththeHBS‐PoEcable)
• QuickStartGuideleaflet
PoweroverEthernet(PoE)Device s
RADWIN’sGigabitPoweroverEthernet
(GbEPoE)deviceprovidesdataand
powertoRADWIN2000CPlusoutdoor
units.ThePoEdeviceisavailablewitha
varietyofACcableswithdifferentplug
types.
ThisistherecommendedPoEdevicefor
usewithHBSsandHSUs.
TheunitcomeswithaVACcable.Both
thecablelengthandplugareregion
dependent.

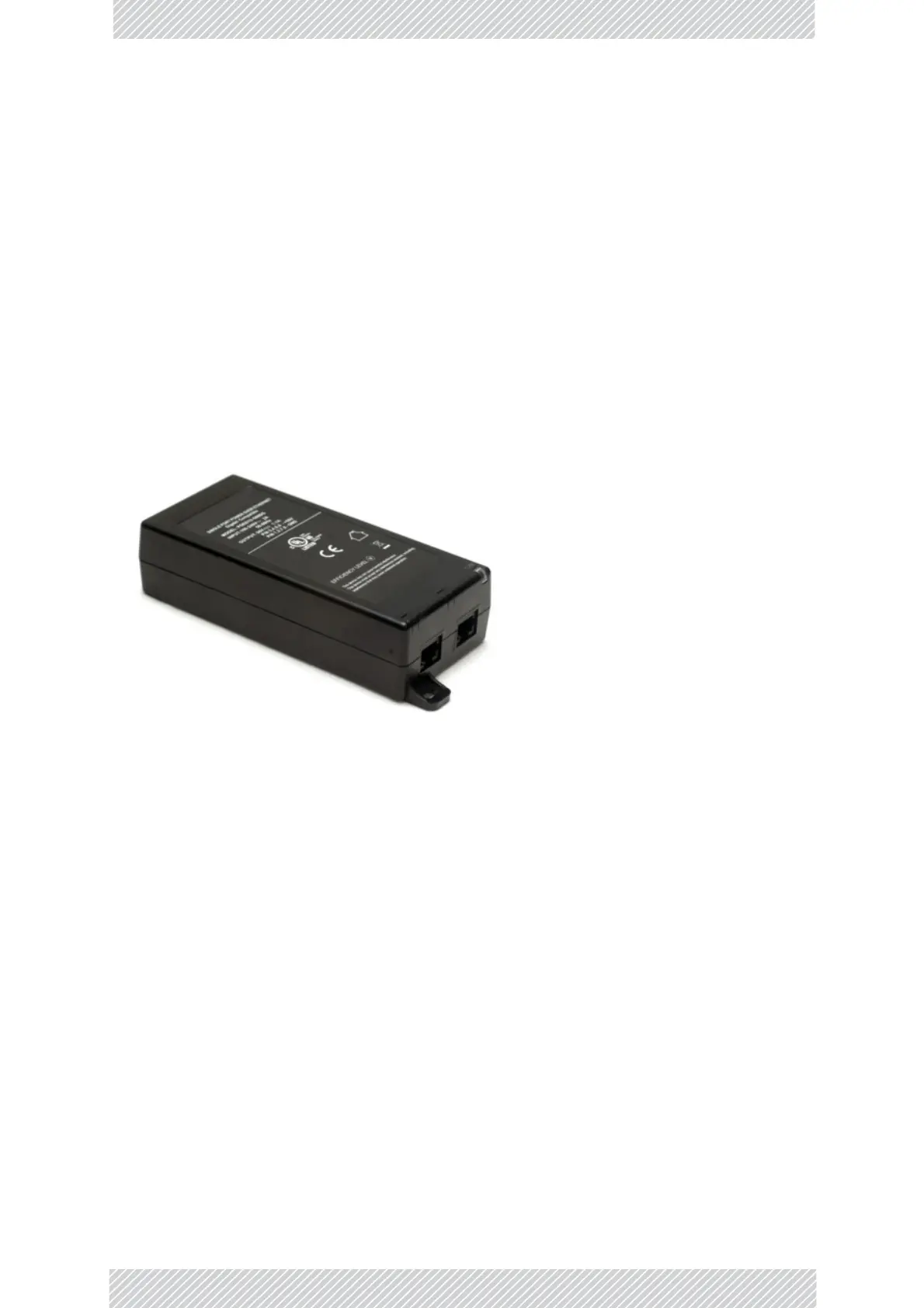

Figure4‐2:GbEPoEdevice
IDU‐Haggregationunit
TheIDU‐HprovidesaggregationformultipleRADWINODUsandHBSsatahubsite.It
supportsallRADWINODUs.Itfeatures‐
• SixPoEports(PoElegacymode/RADWINPoE)
• Upto25WperPoEport
• 2LANInterfaces10/100/1000Mbps;auto‐negotiation
• SFPInterfaces:2xSFPportsof1000Mbps(standardMSA)
Itis19”rackmounted,1Uandhalfwidth.Powerfeedingis44VDC‐56VDC,Dualredundant
inputsthroughstandardIDU‐Ctypeadapters.

Radwin 2000 C PLUS Specifications

General

Brand	Radwin
Model	2000 C PLUS
Category	Radio
Language	English
