RADWIN2000CPlusUserManual Release3.5.70 14‐2
ConfiguringFalseRadarMitigation Chapter14
2. Eliminationofdetectionofspecificfalseradartypesbyblockingdetectionoffalseradars
ofaspecifictype.Therearethreetypesofradars:
•Fixed:Falseradarswithfixedpulsewidthhavingfixedre petitionfrequency
•Variable:Falseradarswithvariablepulsewidthhavingvariablerepetitionfrequency
•Staggered:Falseradarswithvariablerepetitionfrequencywithinaburstperiod
(Appliesto5.4GHzETSIonly)
ConfiguringFalseRadarMitigation
TheconfigurationmethodfortheMasterODU(ETSIandFCC/IC)isthesameasfortheSlave
ODU(ETSIonly).WewilldemonstratetheMasterODUforalinkusingthe5.3GHzFCC/IC
band:
 ToconfigureFalseRadarMitigation:
1.LogontotheMasterODUasInstaller.
2.EntertheConfigurationwindowandopentheAdvancedtab.

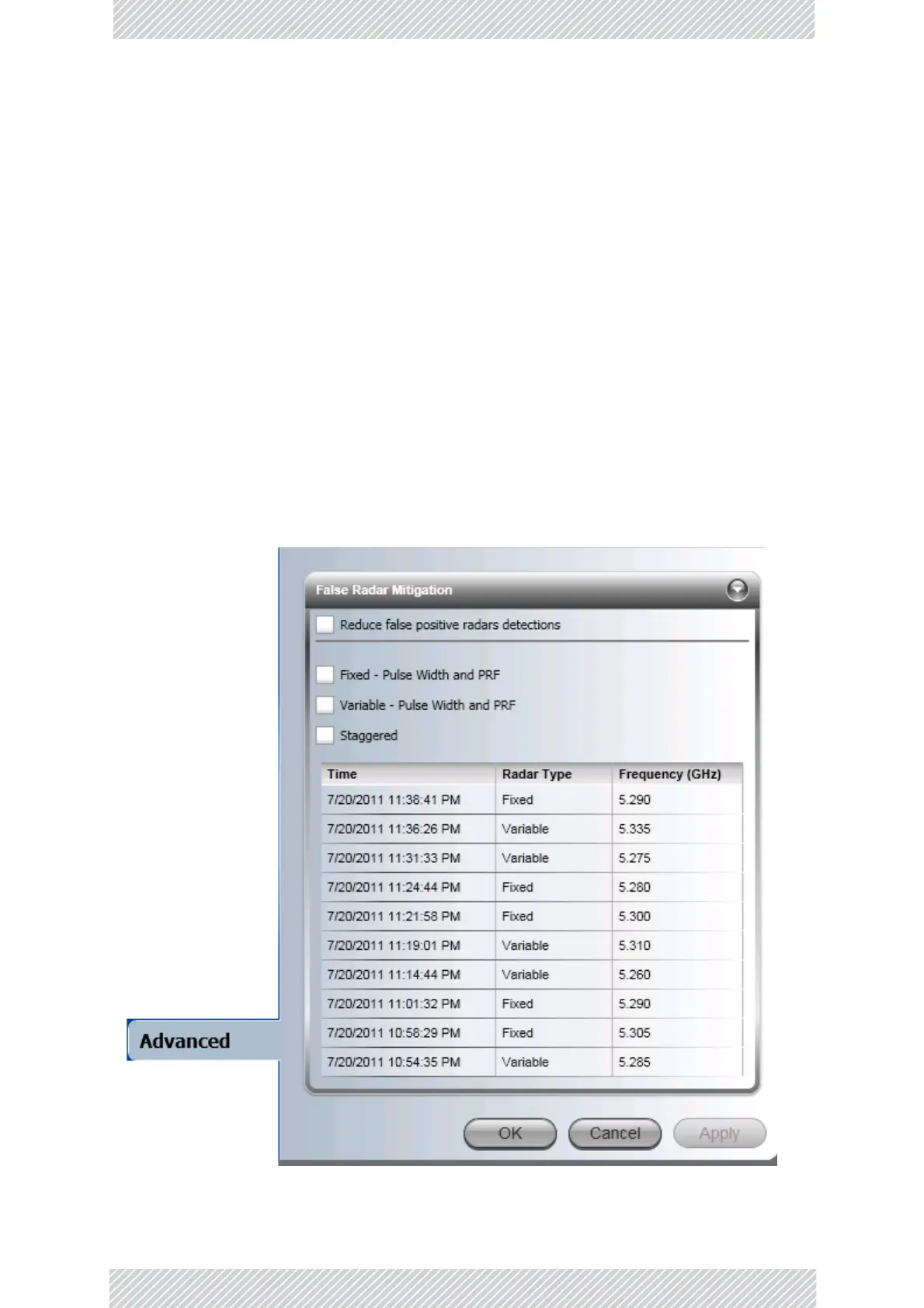

Figure14‐1:FalseRadarMitigation
