RADWIN2000CPlusUserManual Release3.5.70 11‐6
ConfiguringtheGSU Chapter11
ConfiguringtheGSU
GettingStarted
ToconfiguretheGSU,youlogontoit,exactlyasinChapter5.
TheGSUMainWindow
HereisthemainwindowforGSUconfiguration:

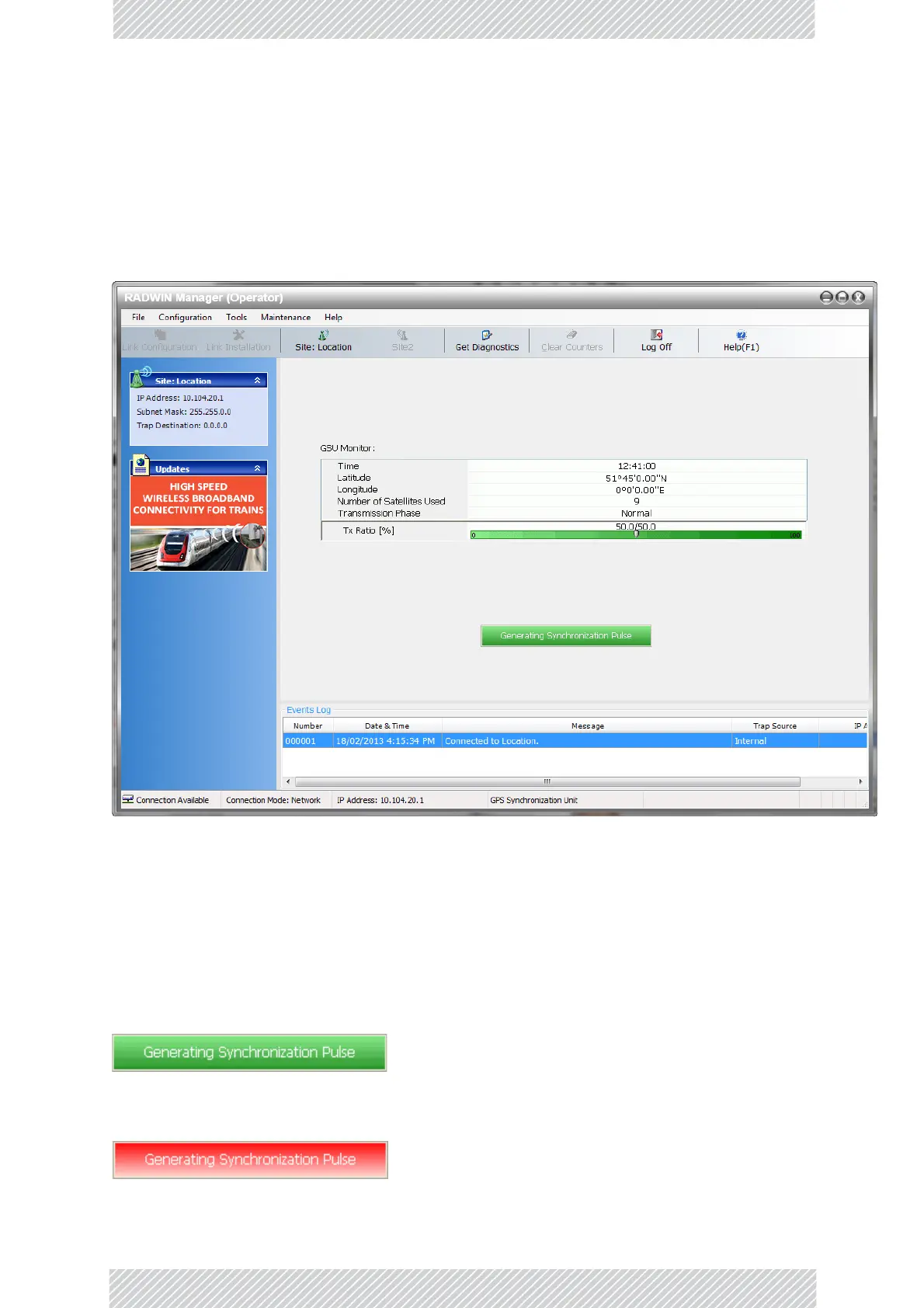

Figure11‐6:GSUMainwidowatstartup
ThetopfiveitemsintheGSUMonito rpanelaretakenfromasatellite.Thetransmission
PhasemaybeNormalasshownorShifted.Itpurpose,togetherwiththeTxRatiobar,willbe
explainedbelow.
TheStat usBox
Undernormaloperatingconditions,itwillbegreenasshown,indicatingthat itis
synchronizedwithasatellite.
Ifsatellitesynchronizationislost,thentheGSUwillfunctionasanindependentHSMandthe
statusboxwillchangecolor:
