RADWIN5000HPMPUserManual Release3.5.70 15‐5
ConfiguringtheHBSasanHSM

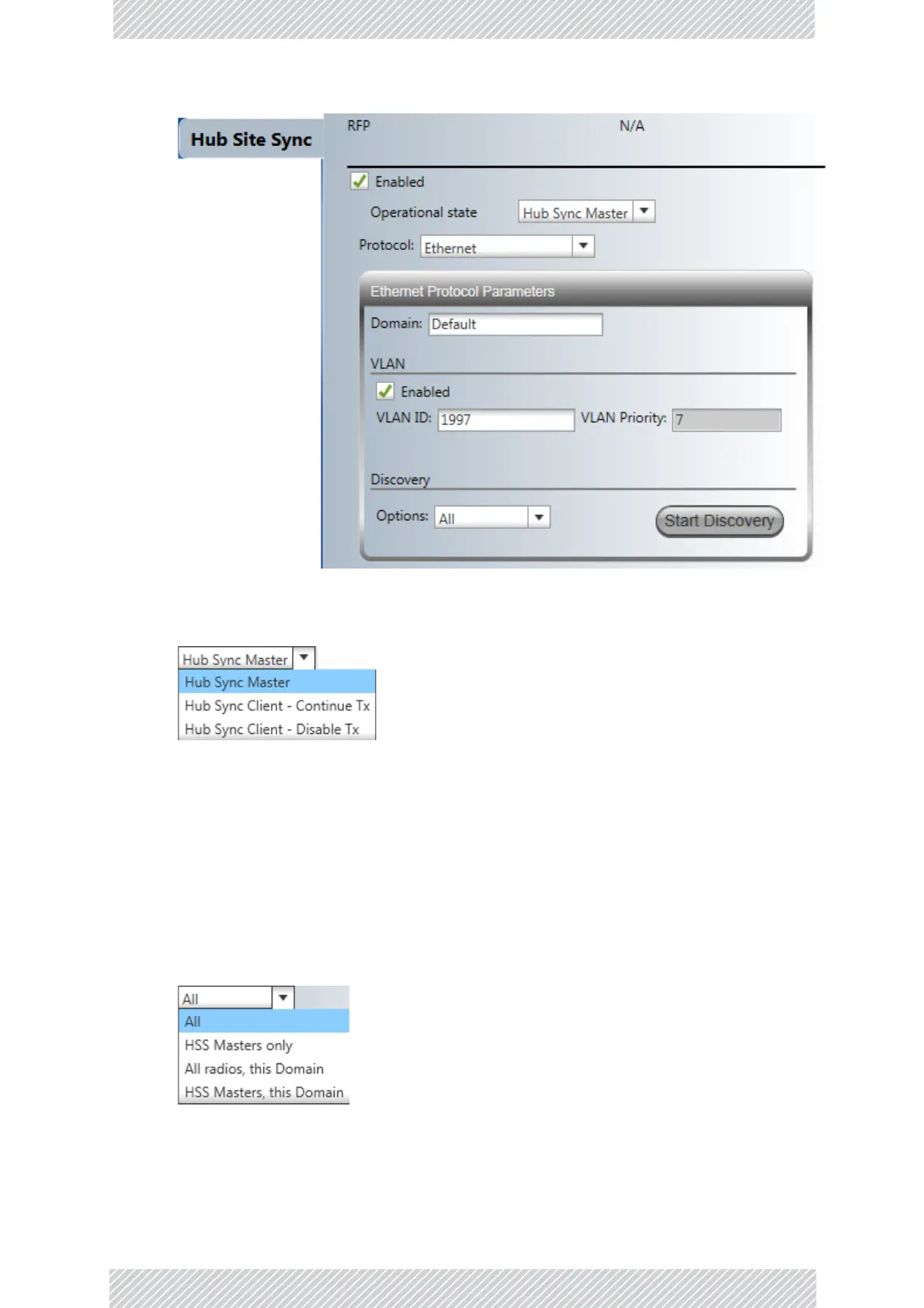

Figure15‐2:ExtendedProtocolParametersforHSSoE
4.LeavetheOperationstateasisatHubSyncMaster.Hereisthefullrangeofoptions:
Later,wewillneedoneoftheclientoptionsforthecollocatedsite.
5.TheProtocolshouldbeleftasisatEthernet.(Forthemoment,
therearenoother
options.)
6.TheDomainistheHSSdomainandreferstothecurrenthubsite.Itisusedto
distinguishbetweenhubsitestopreventinadvertentcollocationtoanover‐the‐air
unit.Wesetitasshown,toPM_Lab.
7.LeavetheVLANIDasisat
1977unlessthereissomereasontochangeit.
8.TheDiscoveryoptionsareasfollows:
Figure15‐3:
HSSdiscoveryfilters
9.ChooseAll.Inourcaseitwi ll showtheHBSasHSMandthecollocatedODUasHSC:

Radwin 5000 HPMP Specifications

General

Frequency Bands	4.9 - 6.0 GHz
Max Throughput	Up to 250 Mbps
Antenna Type	External
Power Supply	48 VDC
Product Type	Wireless Access Point
Channel Bandwidth	5, 10, 20, 40 MHz
Interface	Ethernet
Receiver Sensitivity	-90 dBm
Ingress Protection	IP67
Modulation	QAM
Encryption	AES
Antenna Gain	External antenna dependent
