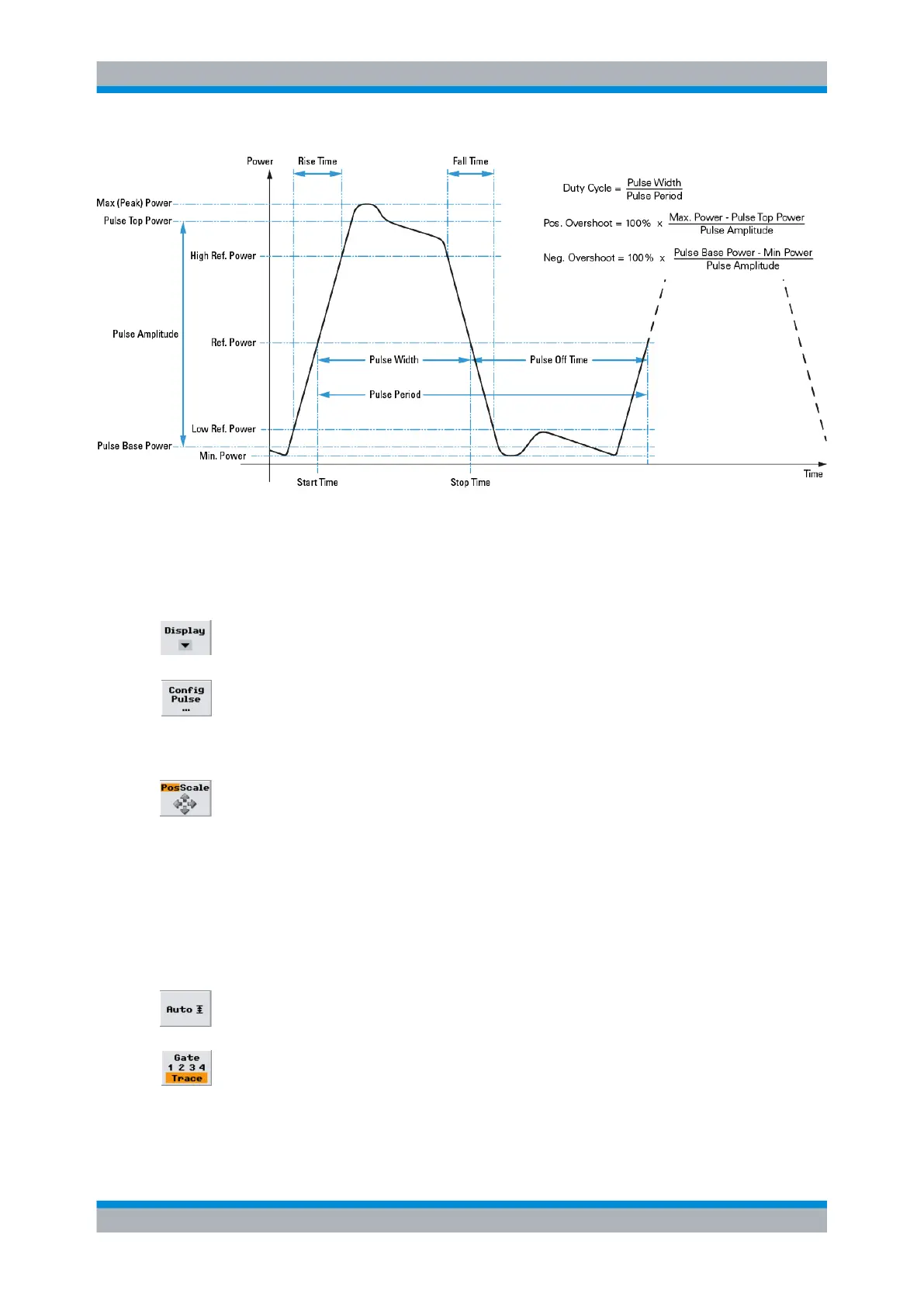

Fig. 4-55: Definition of the pulse analysis parameters
4.5.6.1 Controls in Pulse display mode
Display
Selects another view, see chapter 4.5.2, "Trace window", on page 113.
Config Pulse...
Opens the subdialog to configure the pulse analysis and to select the power/time param-
eters for the info panel display, see chapter 4.5.6.2, "Pulse diagram settings",
on page 127.
Pos Scale
Defines if the cursor keys position or scale the waveform.
"Pos"
The cursor keys shift the waveform in horizontal and vertical direction
"Scale"
The cursor keys expand and compress the waveform. When the hori-
zontal scaling is modified, the points (pixels) at the left of the screen
remain unchanged. When the vertical scaling is modified, the neutral
zone depends on the unit selected: the points in the center of the screen
remain unchanged when dBm, dB and dBµV are used. The points at
the bottom of the screen remain unchanged in all other displays.
Auto
Selects a vertical scaling that is suitable for the signal.
Gate
Selects if the pulse analysis is performed for the visible trace or within the selected gate.
"[1] [2] 3 [4]"
Pulse analysis is performed within the selected gate.
"Trace"
Pulse analysis is performed for the visible trace (entire screen width).
Displaying traces
To Next Page
