HP8657 emulation mode
1GP71_0E 143 Rohde & Schwarz
12 HP8657 emulation mode
General
In this language emulation mode, the emulation software in the SM* emulates
the Pre-SCPI language, implemented in Agilents’s signal generators of type
o HP8647A
o HP8648A / B / C / D
o HP8656A / B
o HP8657A / B
The emulation software is supported on signal generators of type
o SMB100
The signal generator HP8647 / HP8648 also supports a SCPI-compatible
anguage. For more information on that language, please refer to HP8648
emulation.
The emulation software simulates the HP8657 data model in the execution unit
transfers the HP8657 parameters into the SM* database.

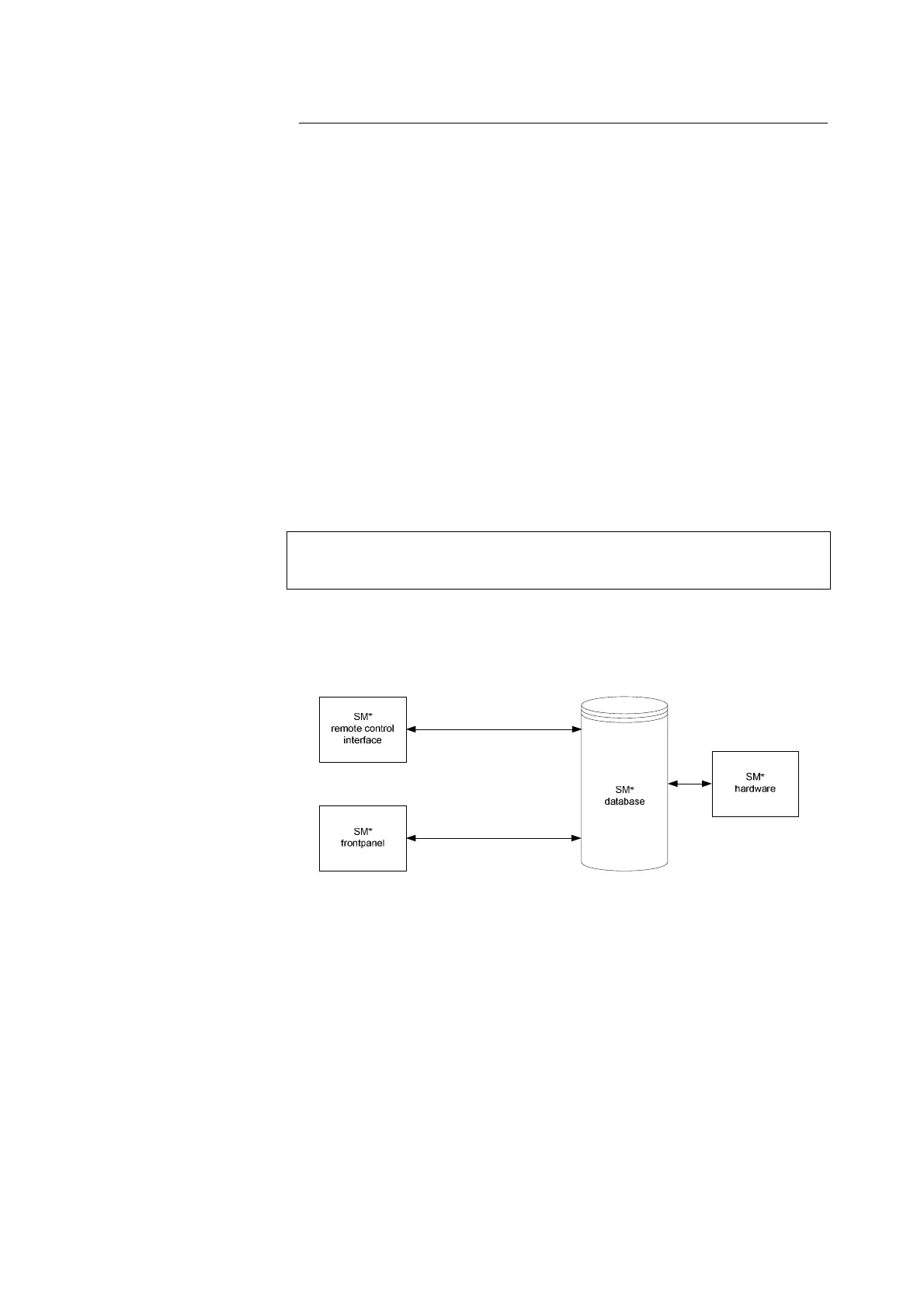

Figure 9: HP8657 emulation model
The following parameters
o amplitude modulation depth’s increment / decrement value
o frequency modulation deviation’s increment / decrement value
are virtual parameters in the SM* database and do not have a related item on
the frontpanel.
