AN680XX emulation mode
1GP71_0E 41 Rohde & Schwarz
6 AN680XX emulation mode
General
In this language emulation mode, the emulation software in the SM* emulates
the SCPI-compatible language, implemented in Anritsu’s signal generators of
type
o AN68017
o AN68020
o AN68037
o AN68040
The emulation software is supported on signal generators of type
o SMF100
The emulation software simulates the AN680XX data model in the execution
unit and transfers all of the AN680XX parameters into the SM* database.

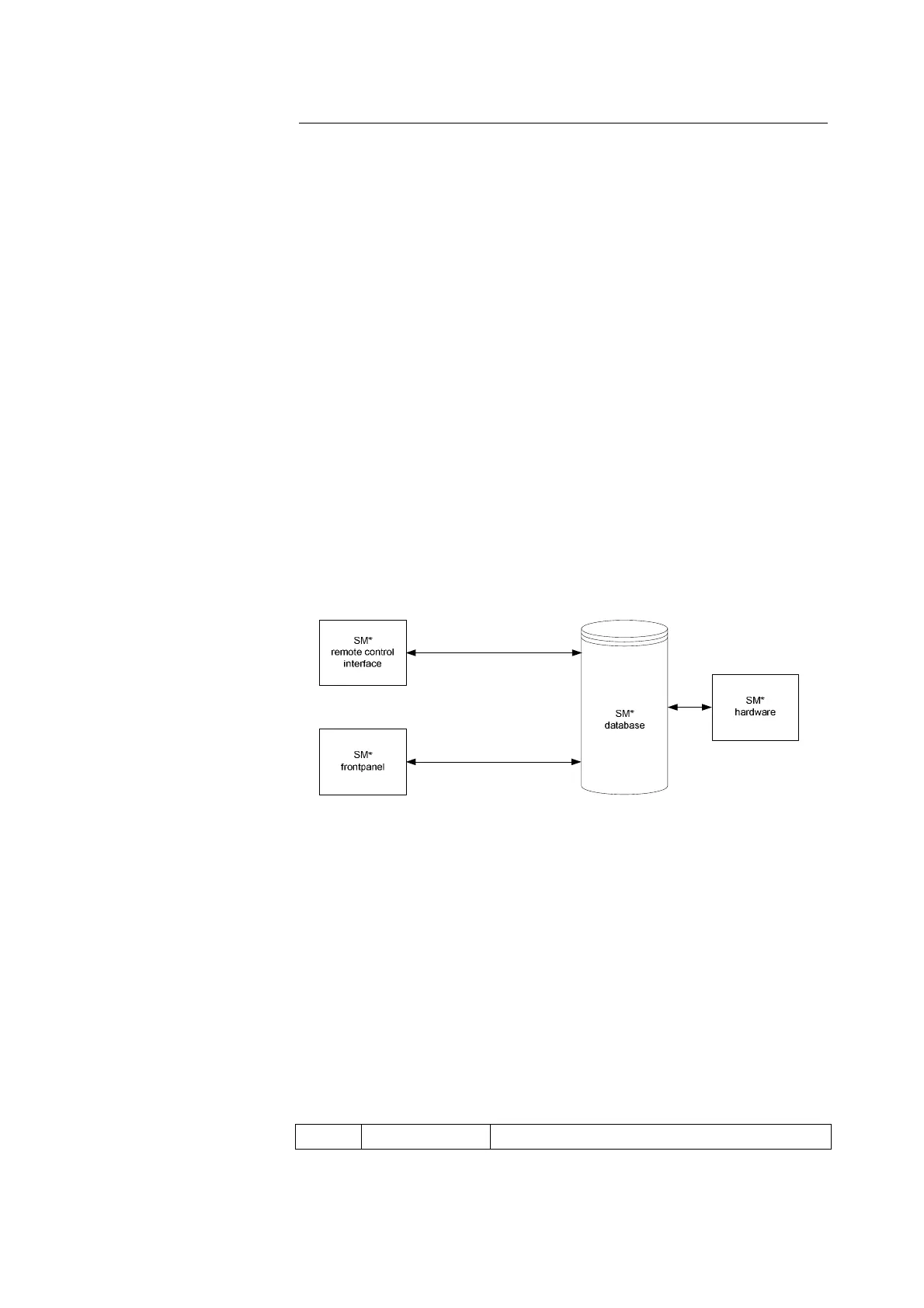

Figure 3: AN680XX emulation model
The following parameters
o Power Attenuation Step
o Unit Frequency
o Unit Time
are virtual parameters in the SM* database and do not have a related item on
the frontpanel.
GPIB functions
The following table shows the GPIB functions, supported by the AN680XX.
Status Function Function / Remark / Limitation
