MODULAR SAFETY INTEGRATED CONTROLLER MOSAIC
230 8540780 • 10/07/2020 • Rev.38
Click on the icon to display the page shown below.

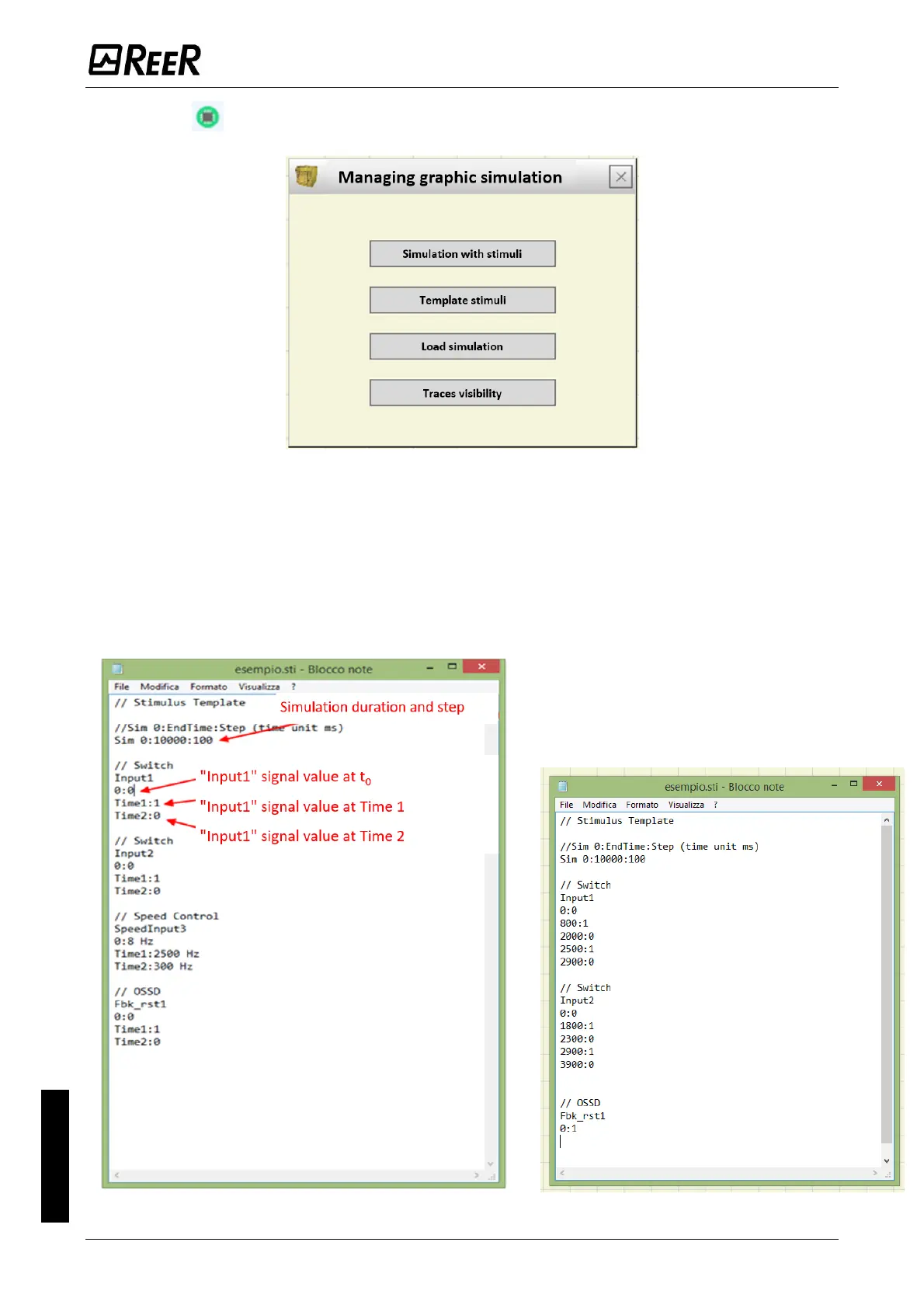

Figure 95 – Menu for selecting the graphic simulation mode
The functions of each key in the menu shown in Figure 95 will now be described:
Template Stimuli: used to save the template file with the desired name and disk location.
This file will contain the names of the signals as shown in the diagram, Figure 96 Now you
may use a text editor to enter the status of the input signals at a given moment in time as
well as the duration of the simulation and the time step to be used, Figure 97.
Figure 96 – Template file immediately after saving
Figure 97 –Example of complete template file
