89
(5) [Area] page
Select the area being accessed. The selection is not available when a time stamp is acquired.

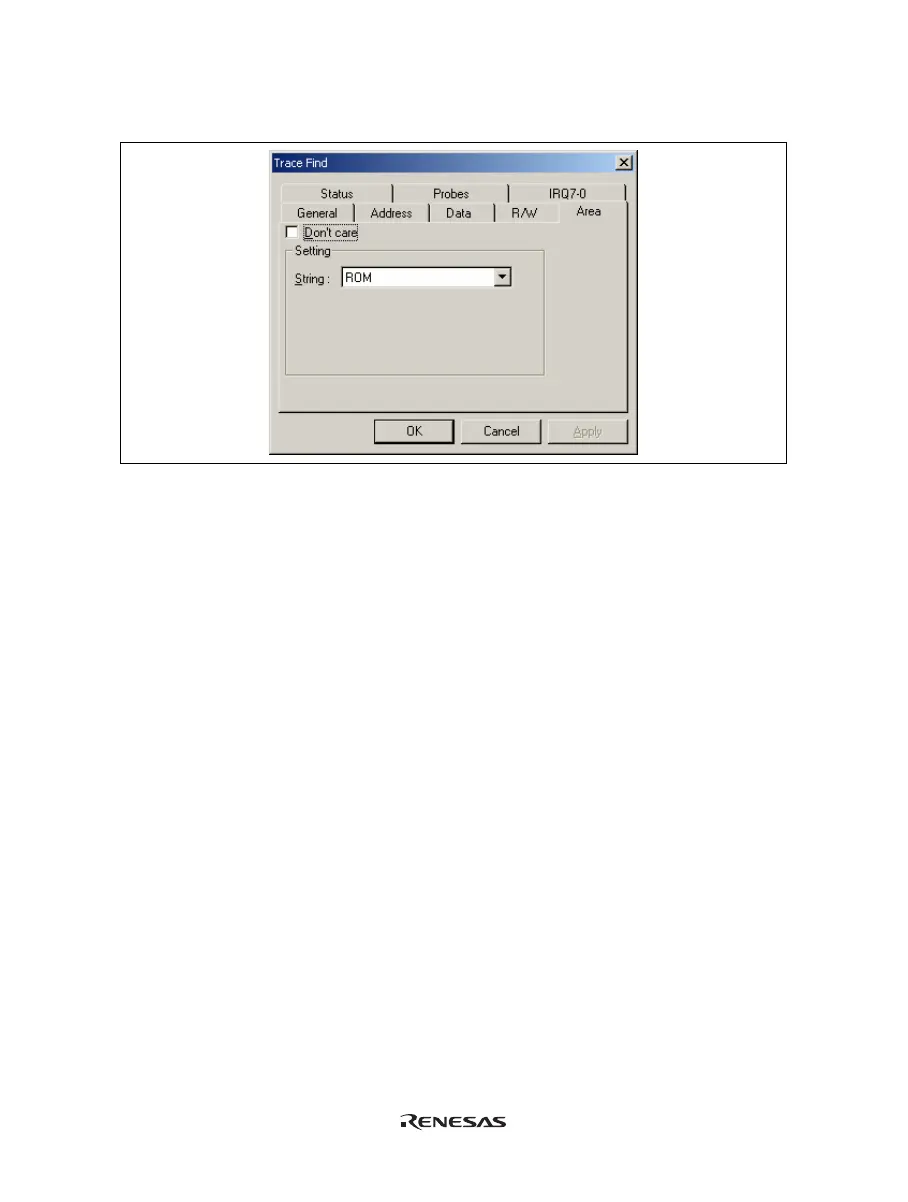

Figure 5.41 [Trace Find] Dialog Box ([Area] Page)
[Don't care]: Detects no area condition when this box is checked.
[Setting]: Detects the specified area condition.
[String]: Select an area condition (not available when [Don’t care] has been checked).
Note: Available areas vary according to the emulator in use. For details, refer to section 5.7.4, Signals to
Indicate Bus States and Areas.
To Next Page
